JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )1JZGE

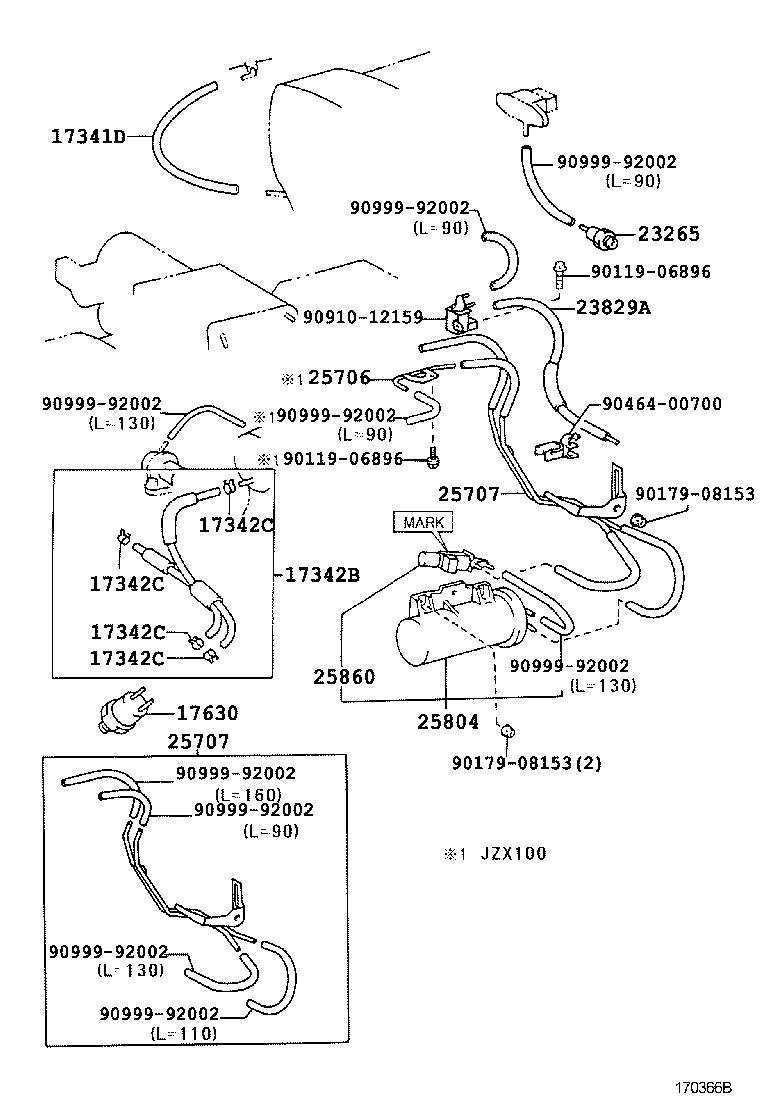

Click highlighted areas on diagram

diagram 17341D 17342B 17342C 17342C 17342C 17342C 17630 23265 23829A 25706 25707 25707 25804 25860 9011906896 9011906896 9017908153 9017908153 9046400700 9091012159 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-46200

1JZGE,2JZGE..JZX10#

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-46120

1JZGE,2JZGE..JZX10#

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-51000

1JZGE,2JZGE..JZX10#

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-51000

1JZGE,2JZGE..JZX10#

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-51000

1JZGE,2JZGE..JZX10#

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-51000

1JZGE,2JZGE..JZX10#

 4
17630 - VALVE ASSY, AIR CONTROL
17630-46080

1JZGE,2JZGE..JZX10#

 1
23265 - FILTER, GAS, NO.1
90917-11031

1JZGE,2JZGE..JZX10#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-46150

1JZGE..JZX100,105

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-46080

1JZGE..JZX100

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46021

1JZGE,2JZGE..JZX10#

 1
25707-46090

1JZGE,2JZGE..JZX10#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46021

1JZGE,2JZGE..JZX10#

 1
25707-46090

1JZGE,2JZGE..JZX10#

 1
25804 - VALVE SET, VACUUM CONTROL
25804-46060

1JZGE,2JZGE..JZX10#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
90910-12124

1JZGE,2JZGE..JZX10#

MARK 90910-12124

 1
25860-46010

1JZGE,2JZGE..JZX10#

MARK 25120-46010

 1
Common parts
90119-06896
90179-08153
90464-00700
90910-12159
90999-92002
