JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )1JZGE,2JZGE

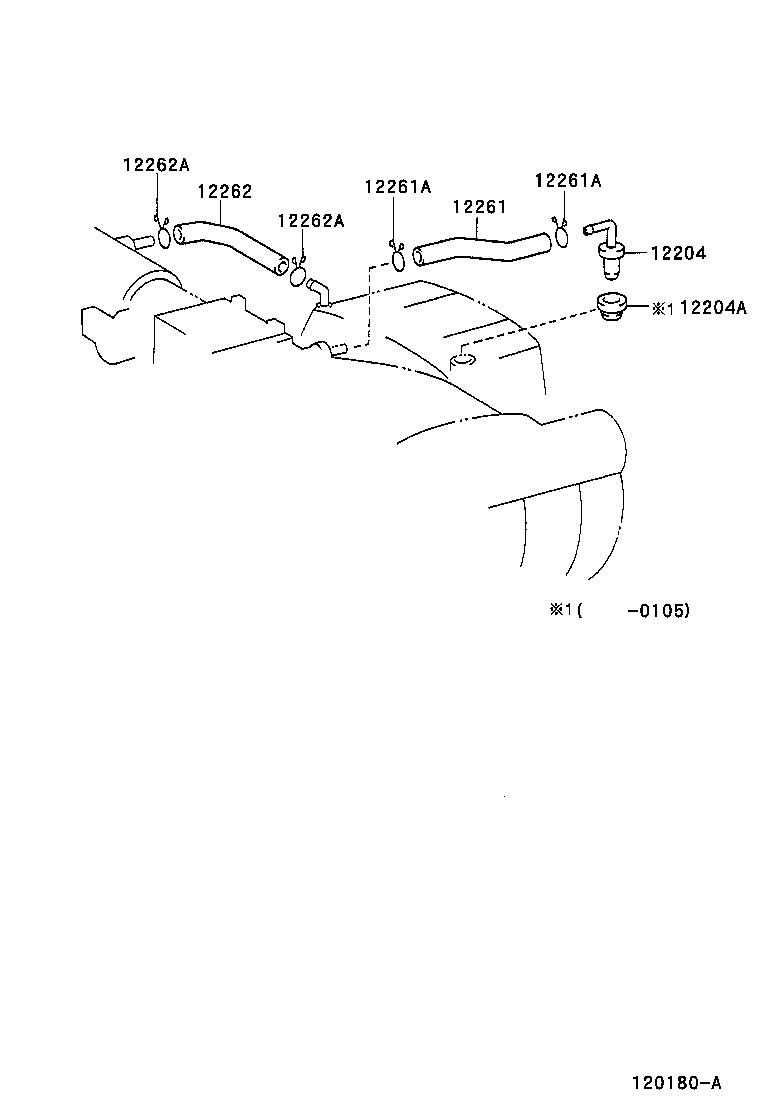

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-46030

1JZGE,2JZGE..JZX10#

 1
12204-46031

1JZGE,2JZGE..JZX10#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1JZGE,2JZGE..JZX10#

 1
12261 - HOSE, VENTILATION
12261-46050

1JZGE..JZX100

 1
12261-46040

1JZGE..JZX100,105

 1
12261-46050

1JZGE,2JZGE..JZX100,101

 1
12261-46051

1JZGE,2JZGE..JZX100,101

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1JZGE,2JZGE..JZX10#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1JZGE,2JZGE..JZX10#

 2
12262 - HOSE, VENTILATION, NO.2
12262-46040

1JZGE,2JZGE..JZX10#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-18003

1JZGE,2JZGE..JZX10#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-18003

1JZGE,2JZGE..JZX10#

 2
