JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )1JZGE,2JZGE

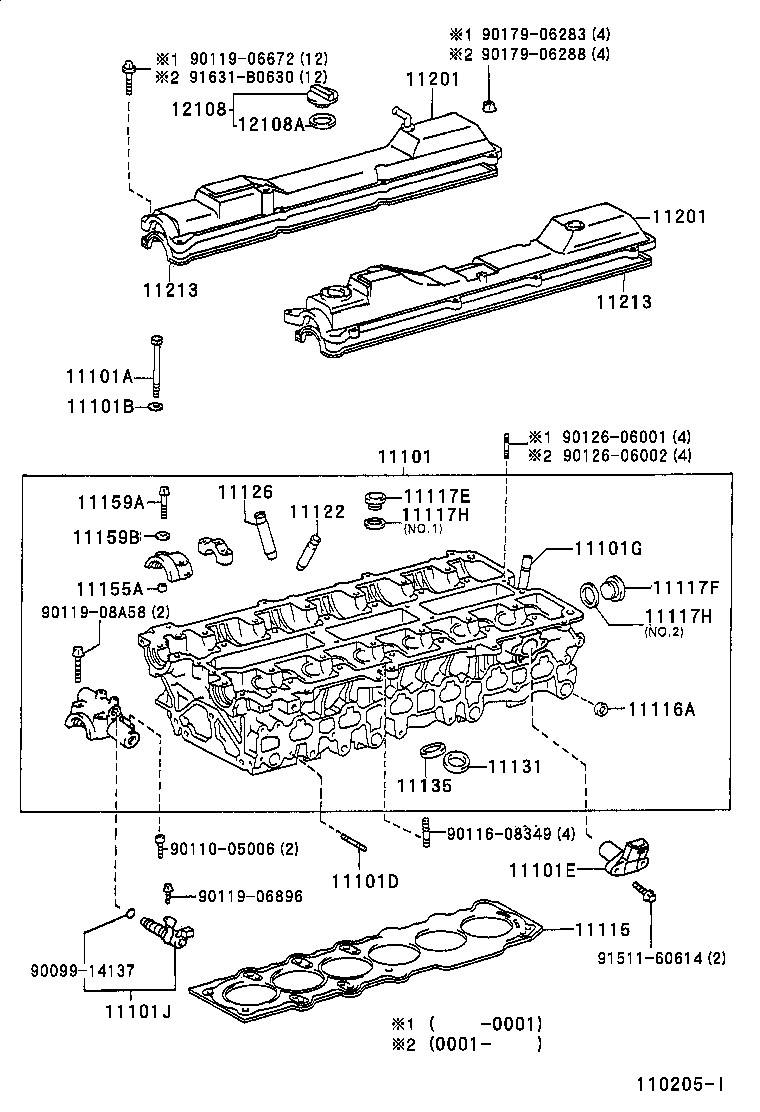

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101D 11101E 11101G 11101J 11115 11116A 11117E 11117F 11117H 11117H 11122 11126 11131 11135 11155A 11159A 11159B 11201 11201 11213 11213 12108 12108A 9009914137 9011005006 9011608349 9011906672 9011906896 9011908A58 9012606001 9012606002 9017906283 9017906288 9151160614 91631B0630
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-49395

1JZGE..JZX100,105

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02102

1JZ#,2JZGE..JZX10#

 14
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11018

1JZ#,2JZGE..JZX10#

 14
11101D - BOLT, STUD(FOR WATER OUTLET)
90116-08348

1JZGE,2JZGE..JZX10#

 2
11101E - SENSOR, CAM POSITION
90919-05007

1JZ#,2JZGE..JZX10#

 1
11101G - UNION(FOR CYLINDER HEAD)
90406-17017

1JZGE,2JZGE..JZX10#

 1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-46010

1JZ#,2JZGE..JZX10#

 1
11115 - GASKET, CYLINDER HEAD
11115-46044

1JZGE,2JZGE..JZX10#

 1
11115-46045

1JZGE,2JZGE..JZX10#

 1
11116A - PLUG, TIGHT, NO.1
96411-42000

1JZGE,2JZGE..JZX10#

 4
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-24010

1JZGE,2JZGE..JZX10#

 3
11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2
90341-36001

1JZGE,2JZGE..JZX10#

 1
11117H - GASKET(FOR WATER HOLE)
90430-36003

1JZGE,2JZGE..JZX10#

NO.2

 1
90430-24010

1JZGE,2JZGE..JZX10#

NO.1

 3
11117H - GASKET(FOR WATER HOLE)
90430-36003

1JZGE,2JZGE..JZX10#

NO.2

 1
90430-24010

1JZGE,2JZGE..JZX10#

NO.1

 3
11122 - BUSH, INTAKE VALVE GUIDE
11122-74030

1JZGE,2JZGE..JZX10#

STD

 12
11123-74030

1JZGE,2JZGE..JZX10#

O/S 0.05

 12
11126 - BUSH, EXHAUST VALVE GUIDE
11122-16010

1JZGE,2JZGE..JZX10#

STD

 12
11123-16010

1JZGE,2JZGE..JZX10#

O/S 0.05

 12
11131 - SEAT, INTAKE VALVE
11132-46020

1JZGE,2JZGE..JZX10#

O/S 0.03

 12
11131-46020

1JZGE,2JZGE..JZX10#

STD

 12
11135 - SEAT, EXHAUST VALVE
11136-46020

1JZGE,2JZGE..JZX10#

O/S 0.03

 12
11135-46020

1JZGE,2JZGE..JZX10#

STD

 12
11155A - PIN, RING W/HEAD
90253-11021

1JZ#,2JZGE..JZX10#

 28
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08890

1JZGE,2JZGE..JZX10#

 26
11159B - WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP)
90210-08033

1JZGE,2JZGE..JZX10#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11202-0W050

1JZGE,2JZGE..JZX10#..EXC,EXCG,ROU,SLT

ｴｷｿﾞｰｽﾄ側

 1
11201-46063

1JZGE,2JZGE..JZX10#

ｲﾝﾃｰｸ側

 1
11202-46033

1JZGE,2JZGE..JZX10#

ｴｷｿﾞｰｽﾄ側

 1
11201-46062

1JZGE,2JZGE..JZX10#

ｲﾝﾃｰｸ側

 1
11201-0W050

1JZGE,2JZGE..JZX10#..EXC,EXCG,ROU,SLT

ｲﾝﾃｰｸ側

 1
11201-46064

1JZGE,2JZGE..JZX10#

ｲﾝﾃｰｸ側

 1
11202-46032

1JZGE,2JZGE..JZX10#

ｴｷｿﾞｰｽﾄ側

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11202-0W050

1JZGE,2JZGE..JZX10#..EXC,EXCG,ROU,SLT

ｴｷｿﾞｰｽﾄ側

 1
11201-46063

1JZGE,2JZGE..JZX10#

ｲﾝﾃｰｸ側

 1
11202-46033

1JZGE,2JZGE..JZX10#

ｴｷｿﾞｰｽﾄ側

 1
11201-46062

1JZGE,2JZGE..JZX10#

ｲﾝﾃｰｸ側

 1
11201-0W050

1JZGE,2JZGE..JZX10#..EXC,EXCG,ROU,SLT

ｲﾝﾃｰｸ側

 1
11201-46064

1JZGE,2JZGE..JZX10#

ｲﾝﾃｰｸ側

 1
11202-46032

1JZGE,2JZGE..JZX10#

ｴｷｿﾞｰｽﾄ側

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-46030

1JZGE,2JZGE..JZX10#

ｲﾝﾃｰｸ側

 1
11214-46011

1JZGE,2JZGE..JZX10#

ｴｷｿﾞｰｽﾄ側

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-46030

1JZGE,2JZGE..JZX10#

ｲﾝﾃｰｸ側

 1
11214-46011

1JZGE,2JZGE..JZX10#

ｴｷｿﾞｰｽﾄ側

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-20030

1JZ#,2JZGE..JZX10#

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-20020

1JZ#,2JZGE..JZX10#

 1
Common parts
90099-14137
90110-05006
90116-08349
90119-06672
90119-06896
90119-08A58
90126-06001
90126-06002
90179-06283
90179-06288
91511-60614
91631-B0630
