GX90-CEMQK (1992)

Toyota Cresta

Production Oct 1992 - Sep 1996
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )

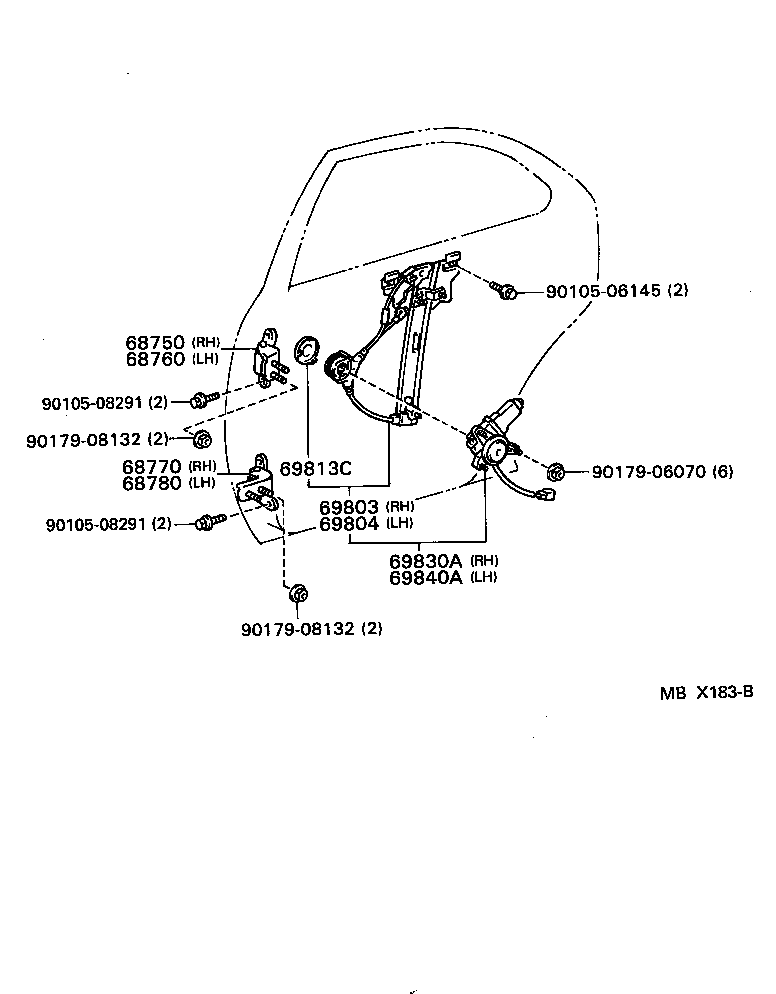

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69803 69804 69813C 69830A 69840A 9010506145 9010508291 9010508291 9017906070 9017908132 9017908132
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-22050

GX90,JZX9#,LX90,SX90

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-22040

GX90,JZX9#,LX90,SX90

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-22020

GX90,JZX9#,LX90,SX90

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-22020

GX90,JZX9#,LX90,SX90

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-22140

GX90,JZX9#,LX90,SX90

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-22140

GX90,JZX9#,LX90,SX90

 1
69813C - PLATE, REAR DOOR POWER WINDOW REGULATOR BASE
69811-22120

GX90,JZX9#,LX90,SX90

右側

 1
69812-22030

GX90,JZX9#,LX90,SX90

左側

 1
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-22260

GX90,JZX9#,LX90,SX90

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-22260

GX90,JZX9#,LX90,SX90

 1
Common parts
90105-06145
90105-08291
90179-06070
90179-08132
