GX81-CEPZR (1988)

Toyota Cresta

Production Aug 1988 - Aug 1990
Engine 1GGZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9008)TWT ; (8808- )GX81..4FC..SLT

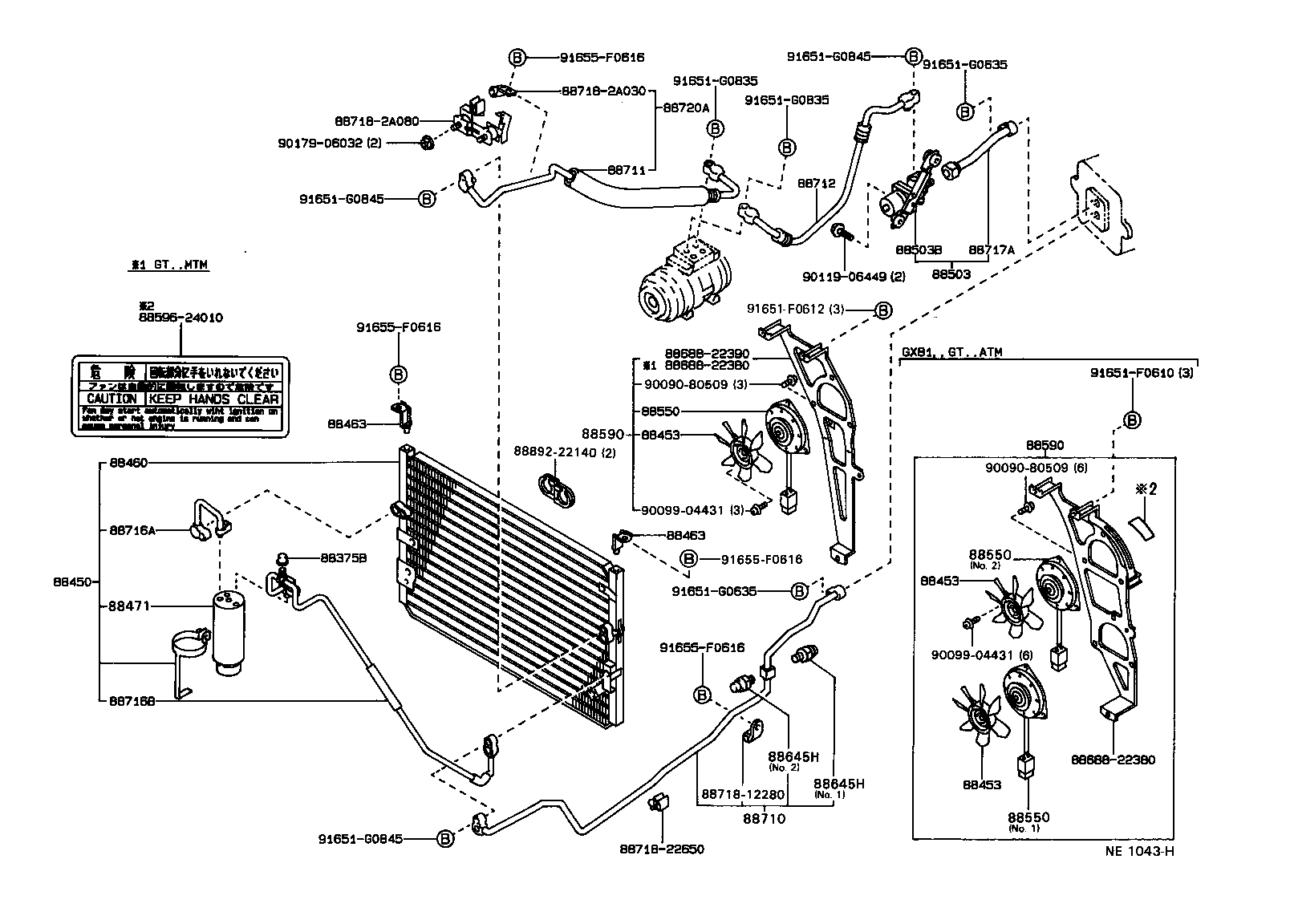

Click highlighted areas on diagram

diagram 88375B 88450 88453 88453 88453 88460 88463 88463 88471 88503 88503B 88550 88550 88550 88590 88590 8859624010 88645H 88645H 8868822380 8868822380 8868822390 88710 88711 88712 88716A 88716B 88717A 8871812280 8871822650 887182A030 887182A080 88720A 8889222140 9009080509 9009080509 9009904431 9009904431 9011906449 9017906032 91651F0610 91651F0612 91651G0635 91651G0635 91651G0835 91651G0835 91651G0845 91651G0845 91651G0845 91655F0616 91655F0616 91655F0616 91655F0616
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-20010

GX81,MX83..GT,SLT,SLTG

 1
88450 - CONDENSER ASSY, W/RECEIVER
88460-22350

GX81..GT,SLT

 1
88460-22341

GX81..SPC

 1
88460-22340

GX81..SPC

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040

GX81..5F..TWT;GX81..4FC..(SLT,SLTG)

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040

GX81..5F..TWT;GX81..4FC..(SLT,SLTG)

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040

GX81..5F..TWT;GX81..4FC..(SLT,SLTG)

 1
88460 - CONDENSER ASSY, COOLER
88460-22390

GX81,MX83,SX80..GT,KYO,SLT,SLTG

 1
88460-22390

SX80;GX81,LX80..GT,SCM,SDX,SLT,SLTG

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-22010

GX81,LX80,SX80,YX80

 2
88463-22010

GX81,LX80,MX83,SX80,YX80..GT,KYO,SLT,SLTG

 2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-22010

GX81,LX80,SX80,YX80

 2
88463-22010

GX81,LX80,MX83,SX80,YX80..GT,KYO,SLT,SLTG

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-12020

GX81,MX83..GT,SLT,SLTG

 1
88503 - REGULATOR ASSY, PRESSURE
88503-22180

GX81,MX83..GT,SLT,SLTG

 1
88503B - REGULATOR SUB-ASSY, PRESSURE
88503-22190

GX81,MX83..GT,SLT,SLTG

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-22040

GX81..5F..TWT;GX81..4FC..(GT,SLT,SLTG)

 1
88550-22040

GX81..5F..TWT;GX81..4FC..(SLT,SLTG)

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-22040

GX81..5F..TWT;GX81..4FC..(GT,SLT,SLTG)

 1
88550-22040

GX81..5F..TWT;GX81..4FC..(SLT,SLTG)

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-22040

GX81..5F..TWT;GX81..4FC..(GT,SLT,SLTG)

 1
88550-22040

GX81..5F..TWT;GX81..4FC..(SLT,SLTG)

 1
88590 - BLOWER ASSY, W/SHROUD
88590-22070

GX81..4FC..(SLT,SLTG)

 1
88590-22070

GX81..4FC..(HTWC,SPC,TWC)

 1
88590 - BLOWER ASSY, W/SHROUD
88590-22070

GX81..4FC..(SLT,SLTG)

 1
88590-22070

GX81..4FC..(HTWC,SPC,TWC)

 1
88645H - SWITCH, PRESSURE NO.1
88645-22050

LX80..KYO;GX81..5F..TWT;GX81,YX80..ATM;LX80..4FC..SCM

NO.1

 1
88645-30281

GX81..GT,SLT,SLTG

NO.2

 1
88645-22050

GX81,MX83..4FC..(GT,SLT,SLTG)

NO.1

 1
88645H - SWITCH, PRESSURE NO.1
88645-22050

LX80..KYO;GX81..5F..TWT;GX81,YX80..ATM;LX80..4FC..SCM

NO.1

 1
88645-30281

GX81..GT,SLT,SLTG

NO.2

 1
88645-22050

GX81,MX83..4FC..(GT,SLT,SLTG)

NO.1

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-22260

GX81..5F..TWT;GX81,MX83..4FC..(GT,SLT,SLTG)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22420

GX81..SPC

 1
88711-22421

GX81..SPC

 1
88711-22430

GX81..GT,SLT

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-22640

GX81..SPC

 1
88712-22650

GX81..GT,SLT

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22820

GX81..SPC

 1
88716-22820

GX81,LX80..SCM,SLTG

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-22830

GX81..SPC

 1
88716-22830

GX81,LX80..SCM,SLTG

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22340

GX81,MX83..GT,SLT,SLTG

 1
88717-22340

GX81,LX80..GT,SCM,SDX,SLT,SLTG

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-22020

GX81..SPC

SUCTION

 1
88720-22010

GX81..SPC

DISCHARGE

 1
88720-22011

GX81..SPC

DISCHARGE

 1
88720-22030

GX81..GT,SLT

 1
Common parts
88596-24010
88688-22380
88688-22390
88718-12280
88718-22650
88718-2A030
88718-2A080
88892-22140
90090-80509
90099-04431
90119-06449
90179-06032
91651-F0610
91651-F0612
91651-G0635
91651-G0835
91651-G0845
91655-F0616

(8808-9008)SPC

Click highlighted areas on diagram

diagram 88375B 88450 88453 88453A 88454A 88460 88463 88463 88471 88503 88503B 88550 88550D 88590 88590B 8859624010 88645H 88645H 8868822390 88710 88711 88712 88716A 88716B 88717A 8871812280 8871822650 8871822800 8871822880 887182A010 887182A010 887182A020 88720A 88720A 8889222140 8889222160 9009080509 9009904431 9011906449 9017906032 9017906032 9017906032 91651F0610 91651G0635 91651G0635 91651G0835 91651G0835 91651G0835 91651G0835 91651G0845 91651G0845 91651G0845 91655F0616 91655F0616 91655F0616 91655F0616
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-20010

GX81,MX83..GT,SLT,SLTG

 1
88450 - CONDENSER ASSY, W/RECEIVER
88460-22350

GX81..GT,SLT

 1
88460-22341

GX81..SPC

 1
88460-22340

GX81..SPC

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040

GX81..5F..TWT;GX81..4FC..(SLT,SLTG)

 1
88453A - FAN, COOLING
88453-20020

YX80..3FC;GX81,LX80,MX83,SX80..KYO,SLTG

 1
88453-20020

YX80..3FC;LX80..KYO;LX80..4FC..SCM;GX81,SX80..CI,SPC

 1
88454A - SHROUD, FAN
88454-22070

YX80..3FC;LX80..KYO;LX80..4FC..SCM;GX81,SX80..CI,SPC

 1
88454-22070

YX80..3FC;GX81,LX80,MX83,SX80..KYO,SLTG

 1
88460 - CONDENSER ASSY, COOLER
88460-22390

GX81,MX83,SX80..GT,KYO,SLT,SLTG

 1
88460-22390

SX80;GX81,LX80..GT,SCM,SDX,SLT,SLTG

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-22010

GX81,LX80,SX80,YX80

 2
88463-22010

GX81,LX80,MX83,SX80,YX80..GT,KYO,SLT,SLTG

 2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-22010

GX81,LX80,SX80,YX80

 2
88463-22010

GX81,LX80,MX83,SX80,YX80..GT,KYO,SLT,SLTG

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-12020

GX81,MX83..GT,SLT,SLTG

 1
88503 - REGULATOR ASSY, PRESSURE
88503-22180

GX81,MX83..GT,SLT,SLTG

 1
88503B - REGULATOR SUB-ASSY, PRESSURE
88503-22190

GX81,MX83..GT,SLT,SLTG

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-22040

GX81..5F..TWT;GX81..4FC..(GT,SLT,SLTG)

 1
88550-22040

GX81..5F..TWT;GX81..4FC..(SLT,SLTG)

 1
88550D - MOTOR ASSY, BLOWER
88550-20030

GX81,MX83..SLTG

 1
88590 - BLOWER ASSY, W/SHROUD
88590-22070

GX81..4FC..(SLT,SLTG)

 1
88590-22070

GX81..4FC..(HTWC,SPC,TWC)

 1
88590B - BLOWER ASSY, W/SHROUD
88590-22040

YX80..3FC;GX81,LX80,MX83,SX80..KYO,SLTG

 1
88590-22040

YX80..3FC;LX80..KYO;LX80..4FC..SCM;GX81,SX80..CI,SPC

 1
88645H - SWITCH, PRESSURE NO.1
88645-22050

LX80..KYO;GX81..5F..TWT;GX81,YX80..ATM;LX80..4FC..SCM

NO.1

 1
88645-30281

GX81..GT,SLT,SLTG

NO.2

 1
88645-22050

GX81,MX83..4FC..(GT,SLT,SLTG)

NO.1

 1
88645H - SWITCH, PRESSURE NO.1
88645-22050

LX80..KYO;GX81..5F..TWT;GX81,YX80..ATM;LX80..4FC..SCM

NO.1

 1
88645-30281

GX81..GT,SLT,SLTG

NO.2

 1
88645-22050

GX81,MX83..4FC..(GT,SLT,SLTG)

NO.1

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-22260

GX81..5F..TWT;GX81,MX83..4FC..(GT,SLT,SLTG)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22420

GX81..SPC

 1
88711-22421

GX81..SPC

 1
88711-22430

GX81..GT,SLT

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-22640

GX81..SPC

 1
88712-22650

GX81..GT,SLT

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22820

GX81..SPC

 1
88716-22820

GX81,LX80..SCM,SLTG

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-22830

GX81..SPC

 1
88716-22830

GX81,LX80..SCM,SLTG

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22340

GX81,MX83..GT,SLT,SLTG

 1
88717-22340

GX81,LX80..GT,SCM,SDX,SLT,SLTG

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-22020

GX81..SPC

SUCTION

 1
88720-22010

GX81..SPC

DISCHARGE

 1
88720-22011

GX81..SPC

DISCHARGE

 1
88720-22030

GX81..GT,SLT

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-22020

GX81..SPC

SUCTION

 1
88720-22010

GX81..SPC

DISCHARGE

 1
88720-22011

GX81..SPC

DISCHARGE

 1
88720-22030

GX81..GT,SLT

 1
Common parts
88596-24010
88688-22390
88718-12280
88718-22650
88718-22800
88718-22880
88718-2A010
88718-2A020
88892-22140
88892-22160
90090-80509
90099-04431
90119-06449
90179-06032
91651-F0610
91651-G0635
91651-G0835
91651-G0845
91655-F0616
