GX81-CEPZR (1988)

Toyota Cresta

Production Aug 1988 - Aug 1990
Engine 1GGZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

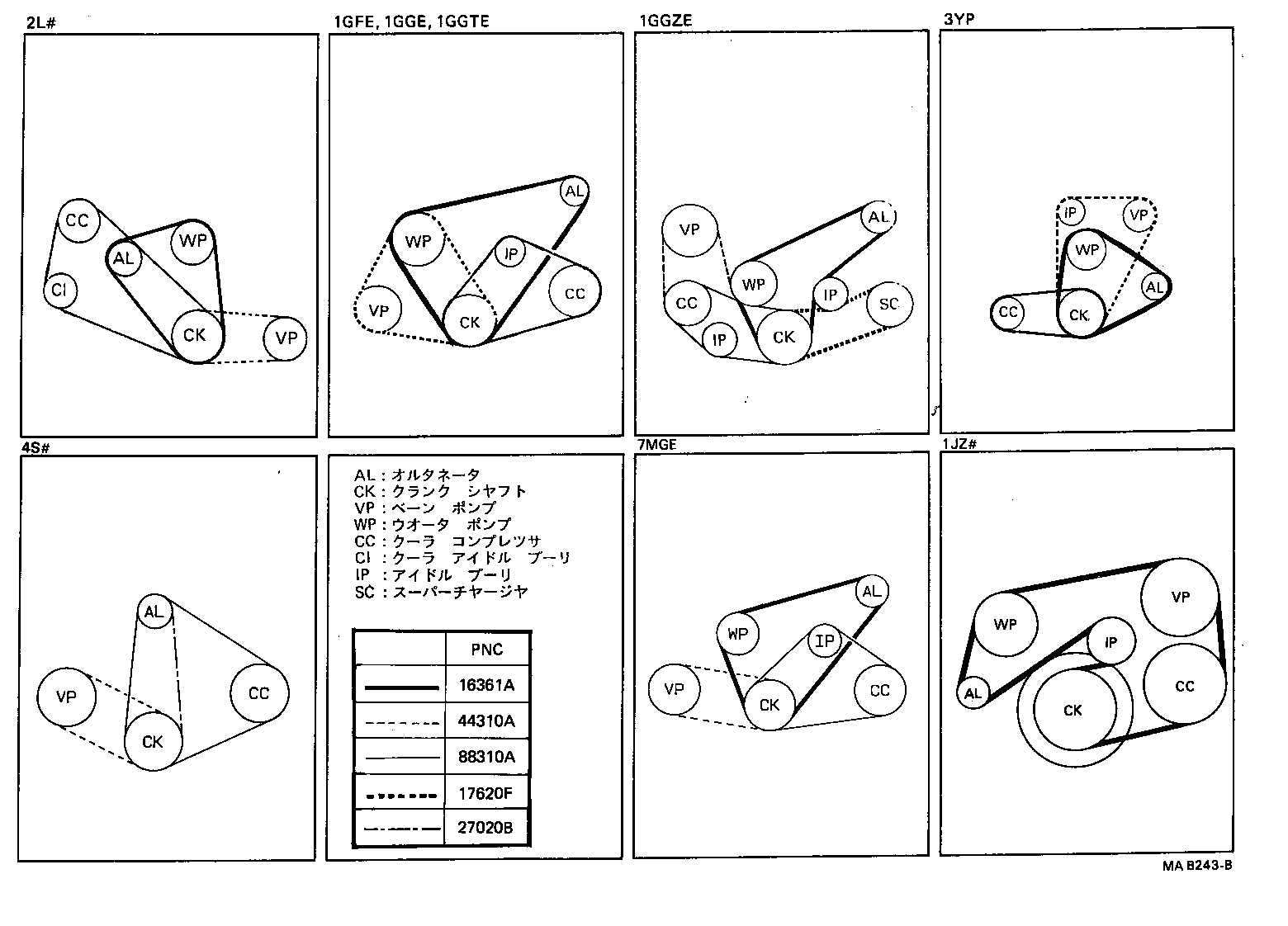

Click highlighted areas on diagram

diagram 16361A 17620F 27020B 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02146

1GGZE..GX81

 1
17620F - BELT, V(FOR SUPERCHARGER)
90916-02147

1GGZE..GX81

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02229

GX81..SPC

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02221

GX81..GT,SLT

 1
90916-02223

GX81..SPC

 1
