GX81-CEPZR (1988)

Toyota Cresta

Production Aug 1988 - Aug 1990
Engine 1GGZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9008)1GGZE

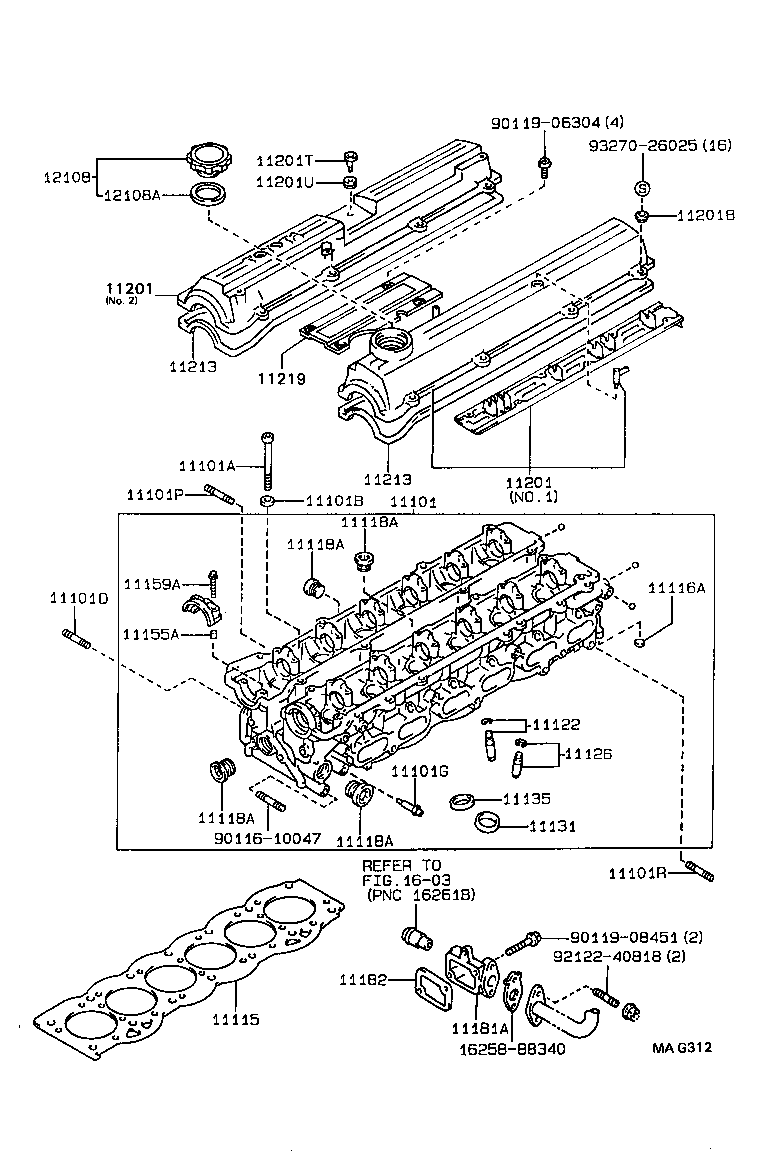

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101D 11101G 11101P 11101R 11115 11116A 11118A 11118A 11118A 11118A 11122 11126 11131 11135 11155A 11159A 11181A 11182 11201 11201 11201B 11201T 11201U 11213 11213 11219 12108 12108A 1603 1625888340 9011610047 9011906304 9011908451 9212240818 9327026025
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-70023

1GGE,1GGZE..GX81

*53

 1
11101-70024

1GGE,1GGZE..GX81

*53

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90110-10003

1GFE,1GG#..GX81

 14
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10050

1GFE,1GG#..GX81

 14
11101D - BOLT, STUD(FOR WATER OUTLET)
90116-10130

1GGZE..GX81

 2
11101G - UNION(FOR CYLINDER HEAD)
90072-40625

1GGE,1GGZE..GX81

*53

 1
90406-08011

1GGE,1GGZE..GX81

*53

 1
11101P - BOLT, STUD(FOR DISTRIBUTOR)
90116-08115

1GG#..GX81

 1
11101R - BOLT, STUD(FOR FUEL PIPE)
90116-06063

1GGE,1GGZE..GX81

*53

 2
11115 - GASKET, CYLINDER HEAD
11115-70032

1GGZE..GX81

 1
11115-70031

1GGZE..GX81

 1
11116A - PLUG, TIGHT, NO.1
96411-41800

1GG#..GX81

 4
11118A - PLUG, STRAIGHT, NO.1
90341-27003

1GG#..GX81

 7
11118A - PLUG, STRAIGHT, NO.1
90341-27003

1GG#..GX81

 7
11118A - PLUG, STRAIGHT, NO.1
90341-27003

1GG#..GX81

 7
11118A - PLUG, STRAIGHT, NO.1
90341-27003

1GG#..GX81

 7
11122 - BUSH, INTAKE VALVE GUIDE
11122-16020

1GGE,1GGZE..GX81

STD,*53

 12
11123-16020

1GGE,1GGZE..GX81

O/S 0.05,*53

 12
11126 - BUSH, EXHAUST VALVE GUIDE
11122-16020

1GGE,1GGZE..GX81

STD,*53

 12
11123-16020

1GGE,1GGZE..GX81

O/S 0.05,*53

 12
11131 - SEAT, INTAKE VALVE
11132-70010

1GG#..GX81

O/S 0.03

 12
11131-70010

1GG#..GX81

STD

 12
11135 - SEAT, EXHAUST VALVE
11136-70021

1GFE,1GG#..GX81

O/S 0.03

 12
11135-70021

1GFE,1GG#..GX81

STD

 12
11155A - PIN, RING W/HEAD
90253-10004

1GG#..GX81

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07002

1GG#..GX81

 28
11181A - COVER, CYLINDER HEAD, REAR
11181-88341

1GGTE,1GGZE..GX81

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-88300

1GG#..GX81

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11212-70030

1GGZE..GX81

NO.2

 1
11201-70040

1GGZE..GX81

NO.1

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11212-70030

1GGZE..GX81

NO.2

 1
11201-70040

1GGZE..GX81

NO.1

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-07001

1GGE,1GGZE..GX81

*53

 16
11201T - PIN(FOR CYLINDER HEAD COVER)
90249-08089

1GGZE..GX81

 1
11201U - BUSH(FOR CYLINDER HEAD COVER)
90385-07001

1GGE,1GGZE..GX81

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-88341

1GGTE,1GGZE..GX81

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-88341

1GGTE,1GGZE..GX81

 2
11219 - COVER, CYLINDER HEAD, NO.3
11219-70020

1GGZE..GX81

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13030

1GFE,1GGTE,1GGZE..GX81

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1GFE,1GGTE,1GGZE..GX81

 1
Common parts
16258-88340
90116-10047
90119-06304
90119-08451
92122-40818
93270-26025
Linked diagrams
1603
