GX81-CEPVZ (1988)

Toyota Cresta

Production Aug 1988 - Aug 1990
Engine 1GGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9008)

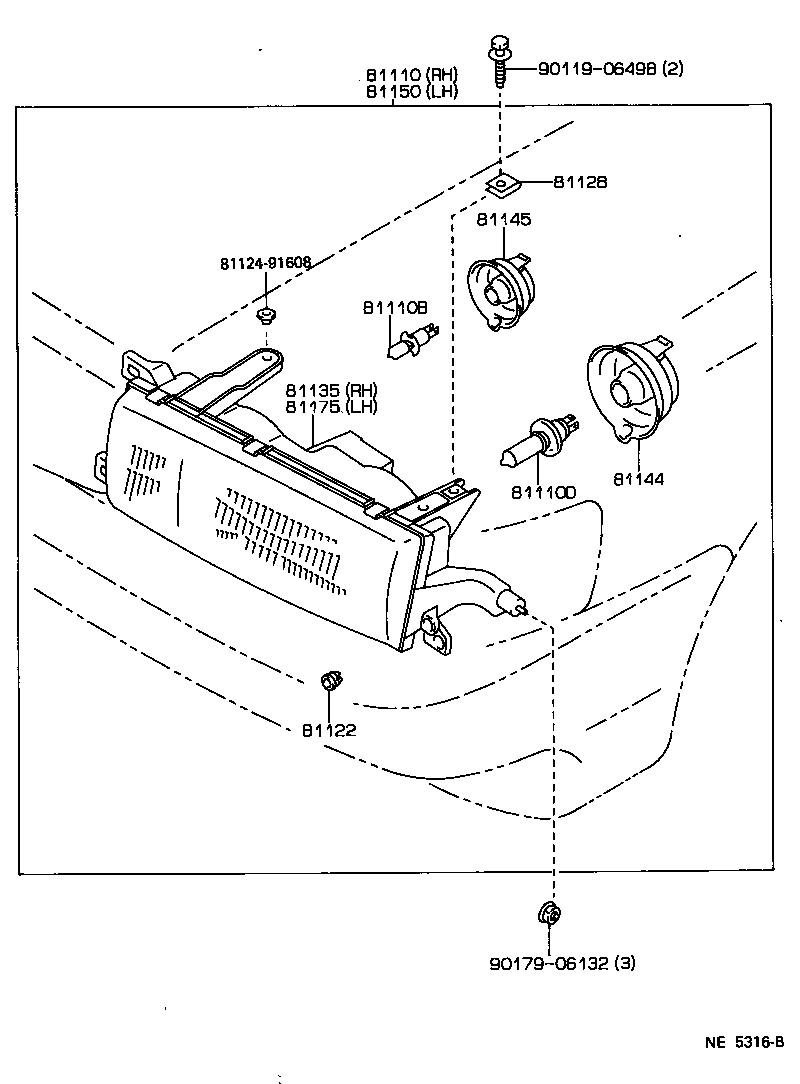

Click highlighted areas on diagram

diagram 81110 81110B 81110D 81122 8112491608 81128 81135 81144 81145 81150 81175 9011906498 9017906132
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-91608

GX81,LX80,MX83,SX80,YX80

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13039

GX81,LX80,MX83,SX80,YX80

12V 55W,ﾊﾛｹﾞﾝ

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13015

GX81,LX80,MX83,SX80,YX80

12V 60/55W,*HAL *WH

 2
81122 - HOLDER, HEADLAMP
81122-32210

GX81,JZX81,LX80,MX83,SX80,YX80

 2
81128 - NUT, HEADLAMP
81128-22350

GX81,LX80,MX83,SX80,YX80

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-91608

GX81,LX80,MX83,SX80,YX80

 1
81144 - COVER, HEADLAMP, NO.1
81139-16340

GX81,LX80,MX83,SX80,YX80

 2
81145 - COVER, HEADLAMP, NO.2
81139-22350

GX81,LX80,MX83,SX80,YX80

 2
81150 - HEADLAMP ASSY, LH
81150-91608

GX81,LX80,MX83,SX80,YX80

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-91608

GX81,LX80,MX83,SX80,YX80

 1
Common parts
81124-91608
90119-06498
90179-06132
