GX81-CEPQK (1988)
Toyota Cresta
(8808- )ATM..CI,HTWC,LPG,TD
A41,A42D,A42DL,A43D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-20010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35608-30010 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35608D - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-22010 |
GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35620D - RING (FOR BRAKE) | ||||
| 90521-99139 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35620U - RING (FOR REAR BRAKE) | ||||
| 90521-99139 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35621 - PISTON, BRAKE, NO.1 | ||||
| 35624-22010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35621A - RING, O (FOR BRAKE PISTON OUTER) | ||||
| 90301-99192 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35621B - RING, O (FOR BRAKE PISTON INNER) | ||||
| 90301-57188 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35621E - PISTON, BRAKE (FOR REAR BRAKE) | ||||
| 35621-30010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35621S - RING (FOR REAR BRAKE PISTON OUTER) | ||||
| 90301-99007 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35621T - RING (FOR REAR BRAKE PISTON INNER) | ||||
| 90301-57188 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35627A - RING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT) | ||||
| 90520-52262 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35627E - RING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT) | ||||
| 90520-52262 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35634E - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22060 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35634F - PLATE, CLUTCH (FOR REAR BRAKE) | ||||
| 35648-30020 |
GX81,LX80,SX80..4FC..(CI,HTWC,TD) 厚さ=2.3 |
3 | ||
| 35634F - PLATE, CLUTCH (FOR REAR BRAKE) | ||||
| 35648-30020 |
GX81,LX80,SX80..4FC..(CI,HTWC,TD) 厚さ=2.3 |
3 | ||
| 35634F - PLATE, CLUTCH (FOR REAR BRAKE) | ||||
| 35648-30020 |
GX81,LX80,SX80..4FC..(CI,HTWC,TD) 厚さ=2.3 |
3 | ||
| 35662 - HUB, BRAKE | ||||
| 35662-30010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35675F - FLANGE, CLUTCH (FOR BRAKE) | ||||
| 35675-22010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35675G - FLANGE, BRAKE (FOR REAR BRAKE) | ||||
| 34625-22010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35677D - DISC, CLUTCH (FOR REAR BRAKE) | ||||
| 35677-30020 |
GX81,LX80..4FC..(HTWC,TD) |
3 | ||
| 35677D - DISC, CLUTCH (FOR REAR BRAKE) | ||||
| 35677-30020 |
GX81,LX80..4FC..(HTWC,TD) |
3 | ||
| 35677D - DISC, CLUTCH (FOR REAR BRAKE) | ||||
| 35677-30020 |
GX81,LX80..4FC..(HTWC,TD) |
3 | ||
| 35677F - DISC, CLUTCH (FOR BRAKE) | ||||
| 35677-30100 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35706H - GEAR SUB-ASSY, PLANETARY SUN | ||||
| 35706-22011 |
GX81,SX80,YX80..ATM..(CI,HTWC,LPG) |
1 | ||
| 35706-30061 |
JZX81..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) | ||||
| 90374-23012 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 90374-23012 |
GX81,SX80,YX80..ATM..(CI,HTWC,LPG) |
1 | ||
| 90374-30006 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35706R - RING, SHAFT SNAP (FOR PLANETARY SUN GEAR) | ||||
| 90520-34260 |
GX81,SX80,YX80..ATM..(CI,HTWC,LPG) |
1 | ||
| 35706S - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT) | ||||
| 35789-22030 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35706T - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR) | ||||
| 35789-22010 |
GX81,SX80,YX80..ATM..(CI,HTWC,LPG) |
1 | ||
| 35789-22010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35709 - SUPPORT SUB-ASSY, CENTER | ||||
| 35709-28010 |
GX81,YX80..ATM..(HTWC,LPG) |
1 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-16010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
3 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-16010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
3 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-16010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
3 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-30010 |
GX81,JZX81,LX80,MX83..4FC..(SPC,TD,TWC,TWT) |
2 | ||
| 35749-22010 |
GX81,SX80,YX80..ATM..(CI,HTWC,LPG) |
2 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-30010 |
GX81,JZX81,LX80,MX83..4FC..(SPC,TD,TWC,TWT) |
2 | ||
| 35749-22010 |
GX81,SX80,YX80..ATM..(CI,HTWC,LPG) |
2 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35790-30030 |
GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35791-30020 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35790-50010 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35793 - RETAINER, 1 WAY CLUTCH | ||||
| 35793-22011 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
2 | ||
| 35793 - RETAINER, 1 WAY CLUTCH | ||||
| 35793-22011 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
2 | ||
| Common parts | ||||
| 90105-08141 | ||||

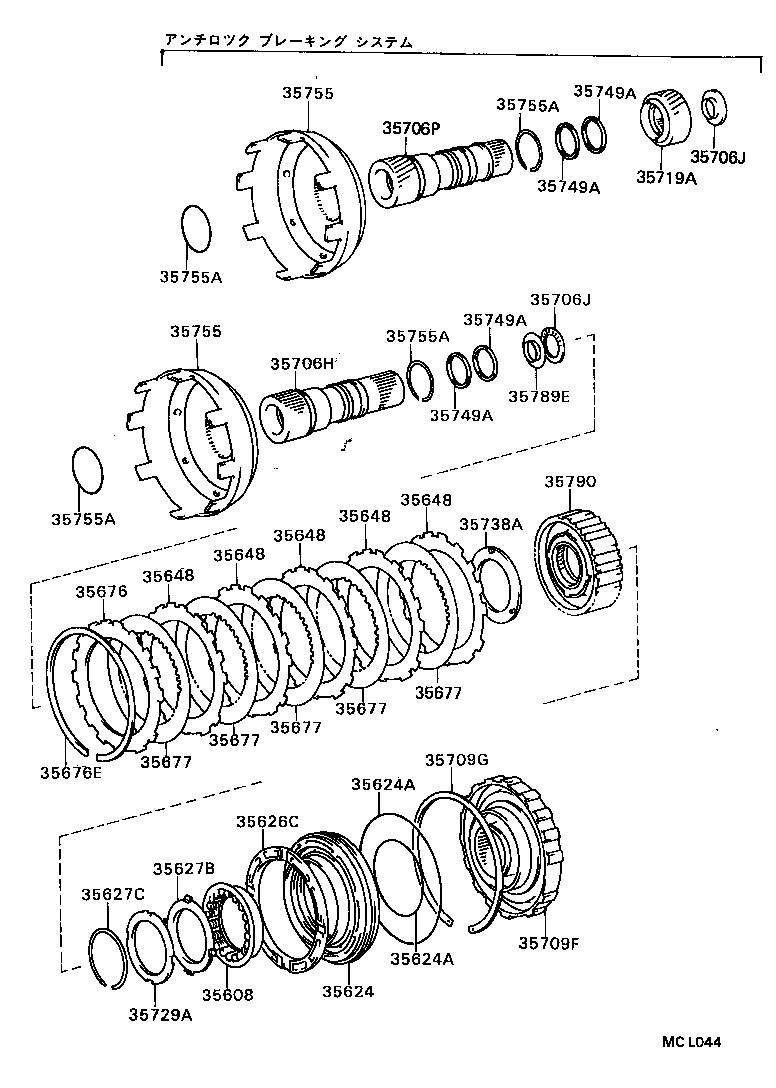

(8808- )GX81..4FC..SPC,TWC,TWT ; (8908- )JZX81,MX83
A340E,A341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-20010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35608-30010 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35624 - PISTON, 2ND BRAKE | ||||
| 35624-30010 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-99038 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) 外側 |
1 | ||
| 90301-85001 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) 内側 |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-99038 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) 外側 |
1 | ||
| 90301-85001 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) 内側 |
1 | ||
| 35626C - SLEEVE, 2ND BRAKE PISTON | ||||
| 35626-30030 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35627B - SEAT, 2ND BRAKE PISTON RETURN SPRING | ||||
| 35627-30010 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35627C - RING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEA | ||||
| 90520-54001 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35647-30050 |
GX81,JZX81..4FC..(SPC,TWC) 厚さ=4.0 |
3 | ||
| 35647-30030 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) 厚さ=1.8 |
1 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35647-30050 |
GX81,JZX81..4FC..(SPC,TWC) 厚さ=4.0 |
3 | ||
| 35647-30030 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) 厚さ=1.8 |
1 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35647-30050 |
GX81,JZX81..4FC..(SPC,TWC) 厚さ=4.0 |
3 | ||
| 35647-30030 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) 厚さ=1.8 |
1 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35647-30050 |
GX81,JZX81..4FC..(SPC,TWC) 厚さ=4.0 |
3 | ||
| 35647-30030 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) 厚さ=1.8 |
1 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35647-30050 |
GX81,JZX81..4FC..(SPC,TWC) 厚さ=4.0 |
3 | ||
| 35647-30030 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) 厚さ=1.8 |
1 | ||
| 35676 - FLANGE, BRAKE (FOR 2ND BRAKE) | ||||
| 35676-30020 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) 厚さ=3.0 |
1 | ||
| 35676E - RING, HOLE SNAP (FOR 2ND BRAKE) | ||||
| 90521-99032 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35667-30020 |
GX81,JZX81..4FC..(SPC,TWC) |
4 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35667-30020 |
GX81,JZX81..4FC..(SPC,TWC) |
4 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35667-30020 |
GX81,JZX81..4FC..(SPC,TWC) |
4 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35667-30020 |
GX81,JZX81..4FC..(SPC,TWC) |
4 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35667-30020 |
GX81,JZX81..4FC..(SPC,TWC) |
4 | ||
| 35706H - GEAR SUB-ASSY, PLANETARY SUN | ||||
| 35706-22011 |
GX81,SX80,YX80..ATM..(CI,HTWC,LPG) |
1 | ||
| 35706-30061 |
JZX81..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) | ||||
| 90374-23012 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 90374-23012 |
GX81,SX80,YX80..ATM..(CI,HTWC,LPG) |
1 | ||
| 90374-30006 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) | ||||
| 90374-23012 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 90374-23012 |
GX81,SX80,YX80..ATM..(CI,HTWC,LPG) |
1 | ||
| 90374-30006 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35709F - DRUM SUB-ASSY, 2ND BRAKE | ||||
| 35709-50010 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35709-30061 |
GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35709G - RING, HOLE SNAP (FOR 2ND BRAKE DRUM) | ||||
| 90521-99044 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35729A - WASHER, PLANETARY CARRIER THRUST, NO.4 | ||||
| 35729-30010 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35738A - WASHER, 1 WAY CLUTCH THRUST, NO.1 | ||||
| 35738-30040 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-30010 |
GX81,JZX81,LX80,MX83..4FC..(SPC,TD,TWC,TWT) |
2 | ||
| 35749-22010 |
GX81,SX80,YX80..ATM..(CI,HTWC,LPG) |
2 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-30010 |
GX81,JZX81,LX80,MX83..4FC..(SPC,TD,TWC,TWT) |
2 | ||
| 35749-22010 |
GX81,SX80,YX80..ATM..(CI,HTWC,LPG) |
2 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-30010 |
GX81,JZX81,LX80,MX83..4FC..(SPC,TD,TWC,TWT) |
2 | ||
| 35749-22010 |
GX81,SX80,YX80..ATM..(CI,HTWC,LPG) |
2 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-30010 |
GX81,JZX81,LX80,MX83..4FC..(SPC,TD,TWC,TWT) |
2 | ||
| 35749-22010 |
GX81,SX80,YX80..ATM..(CI,HTWC,LPG) |
2 | ||
| 35755 - DRUM, SUN GEAR INPUT | ||||
| 35755-50010 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35755-30010 |
GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35755 - DRUM, SUN GEAR INPUT | ||||
| 35755-50010 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35755-30010 |
GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) | ||||
| 90520-49001 |
GX81,JZX81,MX83..4FC..(TWC,TWT) 内径=49.0,線径=2.3,WD=2.3,ID=49.0 |
1 | ||
| 90520-46002 |
GX81,JZX81,MX83..4FC..(TWC,TWT) 内径=46.0,厚さ=1.2,T=1.2,ID=46.0 |
1 | ||
| 90520-49001 |
GX81,MX83..4FC..(SPC,TWC,TWT) 内径=49.0,線径=2.3 |
1 | ||
| 90520-46002 |
GX81,MX83..4FC..(SPC,TWC,TWT) 内径=46.0,厚さ=1.2 |
1 | ||
| 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) | ||||
| 90520-49001 |
GX81,JZX81,MX83..4FC..(TWC,TWT) 内径=49.0,線径=2.3,WD=2.3,ID=49.0 |
1 | ||
| 90520-46002 |
GX81,JZX81,MX83..4FC..(TWC,TWT) 内径=46.0,厚さ=1.2,T=1.2,ID=46.0 |
1 | ||
| 90520-49001 |
GX81,MX83..4FC..(SPC,TWC,TWT) 内径=49.0,線径=2.3 |
1 | ||
| 90520-46002 |
GX81,MX83..4FC..(SPC,TWC,TWT) 内径=46.0,厚さ=1.2 |
1 | ||
| 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) | ||||
| 90520-49001 |
GX81,JZX81,MX83..4FC..(TWC,TWT) 内径=49.0,線径=2.3,WD=2.3,ID=49.0 |
1 | ||
| 90520-46002 |
GX81,JZX81,MX83..4FC..(TWC,TWT) 内径=46.0,厚さ=1.2,T=1.2,ID=46.0 |
1 | ||
| 90520-49001 |
GX81,MX83..4FC..(SPC,TWC,TWT) 内径=49.0,線径=2.3 |
1 | ||
| 90520-46002 |
GX81,MX83..4FC..(SPC,TWC,TWT) 内径=46.0,厚さ=1.2 |
1 | ||
| 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) | ||||
| 90520-49001 |
GX81,JZX81,MX83..4FC..(TWC,TWT) 内径=49.0,線径=2.3,WD=2.3,ID=49.0 |
1 | ||
| 90520-46002 |
GX81,JZX81,MX83..4FC..(TWC,TWT) 内径=46.0,厚さ=1.2,T=1.2,ID=46.0 |
1 | ||
| 90520-49001 |
GX81,MX83..4FC..(SPC,TWC,TWT) 内径=49.0,線径=2.3 |
1 | ||
| 90520-46002 |
GX81,MX83..4FC..(SPC,TWC,TWT) 内径=46.0,厚さ=1.2 |
1 | ||
| 35789E - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR) | ||||
| 35789-30150 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35790-30030 |
GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35791-30020 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35790-50010 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
