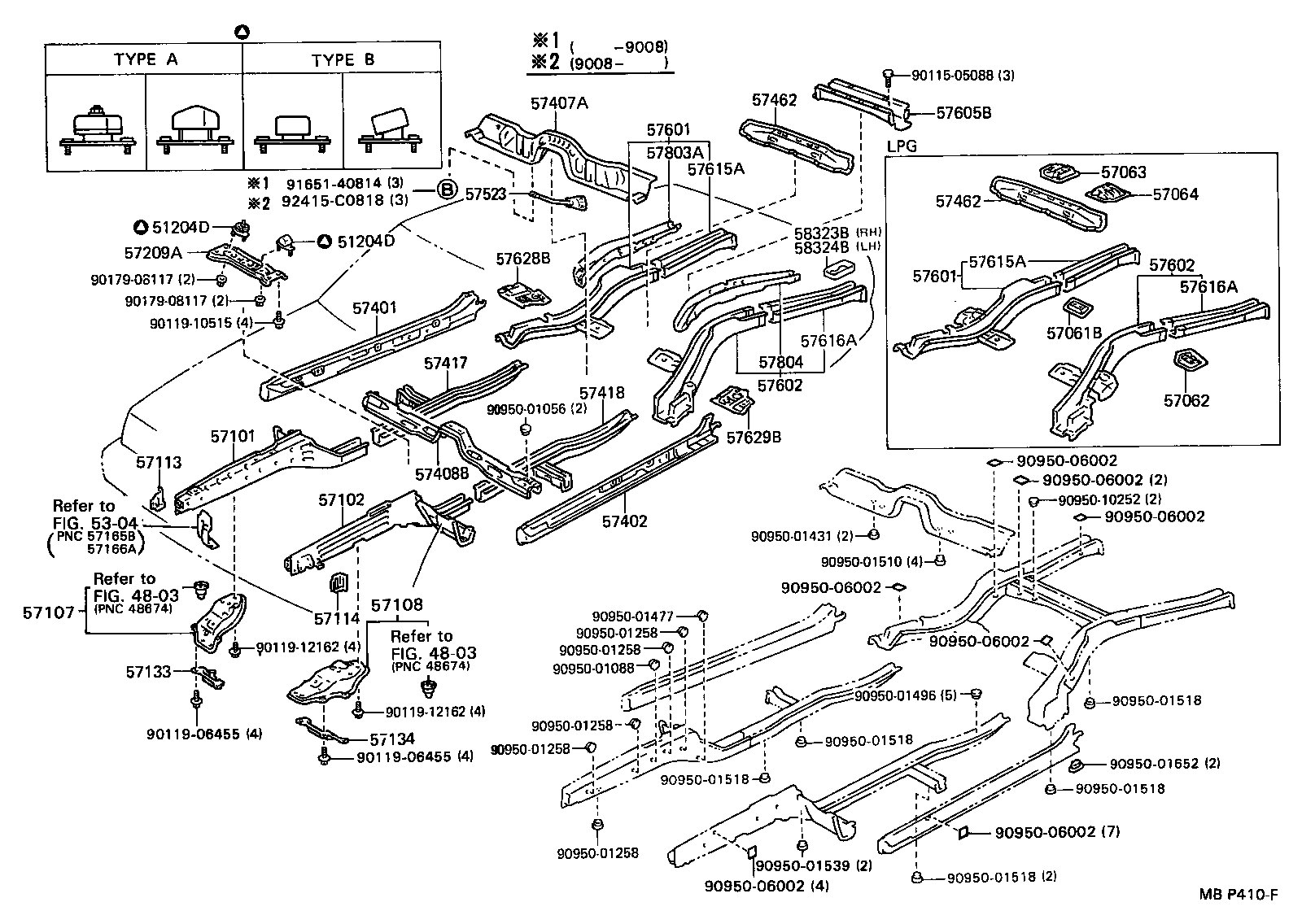

GX81-CEPGK (1988)
Toyota Cresta
(8808-9210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51204D - DAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER | ||||
| 51204-22100 |
GX81,MX83..4FC ﾀｲﾌﾟ A |
1 | ||
| 51204-22100 |
MX83;GX81,JZX81..4FC..(GT,SDX,SLT) ﾀｲﾌﾟ A |
1 | ||
| 51204-22120 |
GX81,MX83..4FC ﾀｲﾌﾟ B |
1 | ||
| 51204-22120 |
MX83;GX81,JZX81..4FC..(GT,SDX,SLT) ﾀｲﾌﾟ B |
1 | ||
| 51204D - DAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER | ||||
| 51204-22100 |
GX81,MX83..4FC ﾀｲﾌﾟ A |
1 | ||
| 51204-22100 |
MX83;GX81,JZX81..4FC..(GT,SDX,SLT) ﾀｲﾌﾟ A |
1 | ||
| 51204-22120 |
GX81,MX83..4FC ﾀｲﾌﾟ B |
1 | ||
| 51204-22120 |
MX83;GX81,JZX81..4FC..(GT,SDX,SLT) ﾀｲﾌﾟ B |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-22300 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-22340 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-22080 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57107-22091 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-22110 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57108-22151 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57133 - PROTECTOR, STRUT BAR BRACKET, RH | ||||
| 57133-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57134 - PROTECTOR, STRUT BAR BRACKET, LH | ||||
| 57134-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57209-22160 |
GX81,MX83..4FC |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-22130 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-22130 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-22080 |
GX81,JZX81,MX83 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-22031 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57505-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57506-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57462 - MEMBER, CENTER FLOOR CROSS, NO.2 | ||||
| 57462-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57462 - MEMBER, CENTER FLOOR CROSS, NO.2 | ||||
| 57462-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57523 - BRACE, CENTER FLOOR CROSSMEMBER | ||||
| 57523-22020 |
GX81,JZX81,MX83 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-22210 |
GX81,JZX81,MX83 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-22210 |
GX81,JZX81,MX83 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-22190 |
GX81,JZX81,MX83 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-22190 |
GX81,JZX81,MX83 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-22900 |
GX81,MX83 |
1 | ||
| 57605-22900 |
GX81,JZX81,MX83 |
2 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-22906 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57615-22906 |
GX81 |
1 | ||
| 57615-22905 |
GX81,JZX81,MX83 |
2 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-22906 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57615-22906 |
GX81 |
1 | ||
| 57615-22905 |
GX81,JZX81,MX83 |
2 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-22090 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57616-22090 |
GX81 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-22090 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57616-22090 |
GX81 |
1 | ||
| 57628B - PLATE, REAR FLOOR SIDE MEMBER, RH | ||||
| 57628-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57629B - PLATE, REAR FLOOR SIDE MEMBER, LH | ||||
| 57629-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57803-22050 |
GX81,JZX81,MX83 |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-22050 |
GX81,JZX81,MX83 |
1 | ||
| 58323B - REINFORCE, REAR BUMPER ARM SUPPORT, RH | ||||
| 58303-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 58324B - REINFORCE, REAR BUMPER ARM SUPPORT, LH | ||||
| 58304-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| Common parts | ||||
| 90115-05088 | ||||
| 90119-06455 | ||||
| 90119-10515 | ||||
| 90119-12162 | ||||
| 90179-08117 | ||||
| 90950-01056 | ||||
| 90950-01088 | ||||
| 90950-01258 | ||||
| 90950-01431 | ||||
| 90950-01477 | ||||
| 90950-01496 | ||||
| 90950-01510 | ||||
| 90950-01518 | ||||
| 90950-01539 | ||||
| 90950-01652 | ||||
| 90950-06002 | ||||
| 90950-10252 | ||||
| 91651-40814 | ||||
| 92415-C0818 | ||||
| Linked diagrams | ||||
| 4803 | ||||
| 5304 | ||||
