GX81-CEMVZ (1988)

Toyota Cresta

Production Aug 1988 - Aug 1990
Engine 1GGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

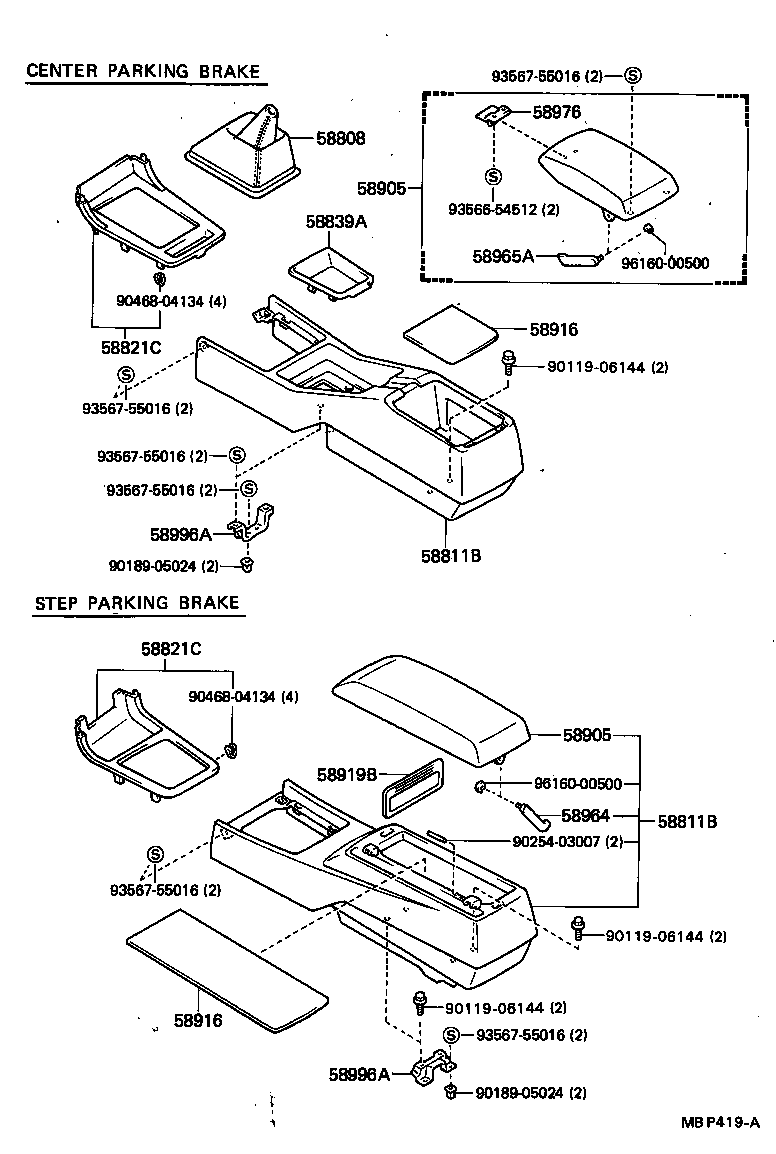

(8808- )

Click highlighted areas on diagram

diagram 58808 58811B 58811B 58821C 58821C 58839A 58905 58905 58916 58916 58919B 58964 58965A 58976 58996A 58996A 9011906144 9011906144 9011906144 9018905024 9018905024 9025403007 9046804134 9046804134 9356654512 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9616000500 9616000500
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-2209004

GX81..5F

DARK BLUE,TRIM8#

 1
58808-2209002

GX81..5F

NEW MAROON,TRIM3#

 1
58808-2209006

GX81..5F

SABLE,TRIM4#

 1
58811B - BOX, CONSOLE
58801-2221004

SX80..5F..SCM;GX81,LX80,YX80..3FC,5F;LX80,SX80..KYO..(CI,TD)

DARK BLUE,TRIM8#

 1
58801-2221006

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)

SABLE,TRIM4#

 1
58801-2221002

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)

NEW MAROON,TRIM3#

 1
58811B - BOX, CONSOLE
58801-2221004

SX80..5F..SCM;GX81,LX80,YX80..3FC,5F;LX80,SX80..KYO..(CI,TD)

DARK BLUE,TRIM8#

 1
58801-2221006

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)

SABLE,TRIM4#

 1
58801-2221002

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)

NEW MAROON,TRIM3#

 1
58821C - PANEL, CONSOLE, UPPER
58821-22110

GX81,JZX81,MX83..GT,SLT,SLTG

 1
58821C - PANEL, CONSOLE, UPPER
58821-22110

GX81,JZX81,MX83..GT,SLT,SLTG

 1
58839A - COVER, CONSOLE BOX HOLE
58839-2202006

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)

SABLE,TRIM4#

 1
58839-2202004

SX80..5F..SCM;GX81,LX80,YX80..3FC,5F;LX80,SX80..KYO..(CI,TD)

DARK BLUE,TRIM8#

 1
58839-2202002

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)

NEW MAROON,TRIM3#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-2215004

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)..(CI,DSL,HTWC,TD,TWT)

DARK BLUE,TRIM8#

 1
58905-2215006

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)..(CI,DSL,HTWC,TD,TWT)

SABLE,TRIM4#

 1
58905-2215002

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)..(CI,DSL,HTWC,TD,TWT)

NEW MAROON,TRIM3#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-2215004

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)..(CI,DSL,HTWC,TD,TWT)

DARK BLUE,TRIM8#

 1
58905-2215006

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)..(CI,DSL,HTWC,TD,TWT)

SABLE,TRIM4#

 1
58905-2215002

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)..(CI,DSL,HTWC,TD,TWT)

NEW MAROON,TRIM3#

 1
58916 - MAT, BOX BOTTOM
58916-2203004

SX80..5F..SCM;GX81,LX80,YX80..3FC,5F;LX80,SX80..KYO..(CI,TD)

DARK BLUE,TRIM8#

 1
58916-2203006

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)

SABLE,TRIM4#

 1
58916-2203002

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)

NEW MAROON,TRIM3#

 1
58916 - MAT, BOX BOTTOM
58916-2203004

SX80..5F..SCM;GX81,LX80,YX80..3FC,5F;LX80,SX80..KYO..(CI,TD)

DARK BLUE,TRIM8#

 1
58916-2203006

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)

SABLE,TRIM4#

 1
58916-2203002

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)

NEW MAROON,TRIM3#

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-22020

SX80..5F..SCM;GX81,LX80,YX80..3FC,5F;LX80,SX80..KYO..(CI,HTWC,TD)

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

SX80..5F..SCM;GX81,LX80,YX80..3FC,5F;LX80,SX80..KYO..(CI,HTWC,TD)

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-22030

SX80..5F..SCM;GX81,LX80,YX80..3FC,5F;LX80,SX80..KYO..(CI,HTWC,TD)

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-22030

SX80..5F..SCM;GX81,LX80,YX80..3FC,5F;LX80,SX80..KYO..(CI,HTWC,TD)

 1
Common parts
90119-06144
90189-05024
90254-03007
90468-04134
93566-54512
93567-55016
96160-00500

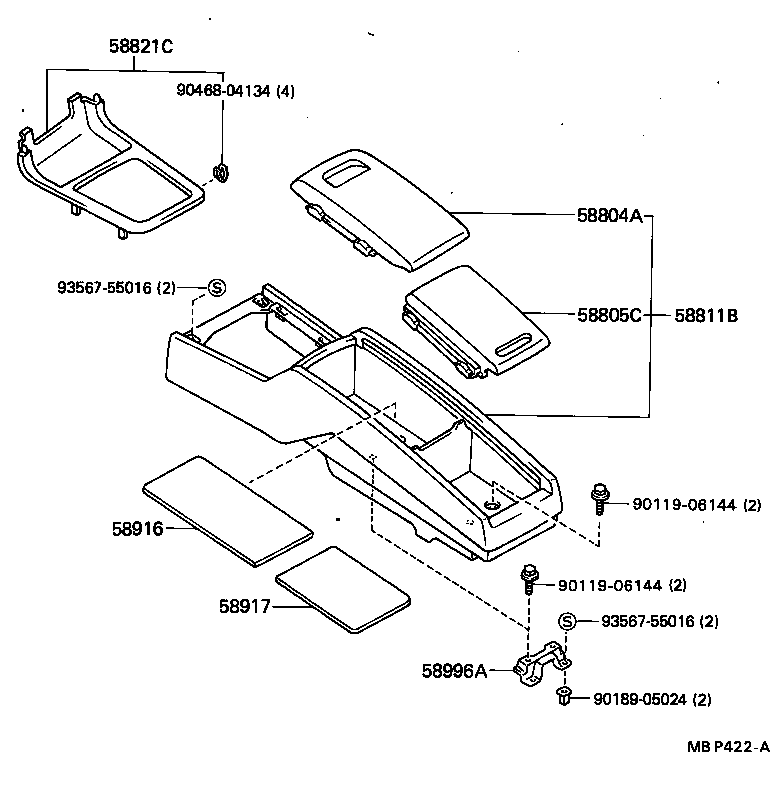

(8808- )

Click highlighted areas on diagram

diagram 58804A 58805C 58811B 58821C 58916 58917 58996A 9011906144 9011906144 9018905024 9046804134 9356755016 9356755016
Part # Description Qty Price
58811B - BOX, CONSOLE
58801-2221004

SX80..5F..SCM;GX81,LX80,YX80..3FC,5F;LX80,SX80..KYO..(CI,TD)

DARK BLUE,TRIM8#

 1
58801-2221006

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)

SABLE,TRIM4#

 1
58801-2221002

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)

NEW MAROON,TRIM3#

 1
58821C - PANEL, CONSOLE, UPPER
58821-22110

GX81,JZX81,MX83..GT,SLT,SLTG

 1
58916 - MAT, BOX BOTTOM
58916-2203004

SX80..5F..SCM;GX81,LX80,YX80..3FC,5F;LX80,SX80..KYO..(CI,TD)

DARK BLUE,TRIM8#

 1
58916-2203006

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)

SABLE,TRIM4#

 1
58916-2203002

GX81,LX80,SX80..5F..(GT,SCM,SDX,SLT)

NEW MAROON,TRIM3#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-22030

SX80..5F..SCM;GX81,LX80,YX80..3FC,5F;LX80,SX80..KYO..(CI,HTWC,TD)

 1
Common parts
90119-06144
90189-05024
90468-04134
93567-55016
