GX81-CEMVZ (1988)

Toyota Cresta

Production Aug 1988 - Aug 1990
Engine 1GGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9110)5F

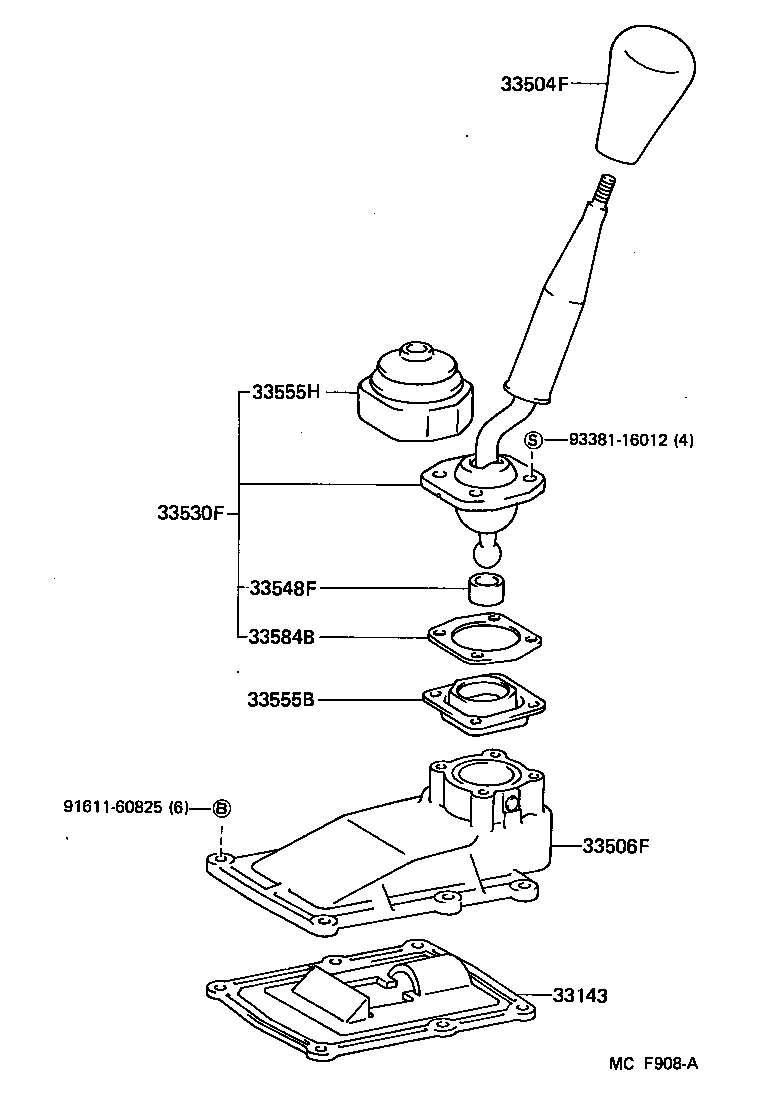

Click highlighted areas on diagram

diagram 33143 33504F 33506F 33530F 33548F 33555B 33555H 33584B 9161160825 9338116012
Part # Description Qty Price
33143 - PLATE, EXTENSION HOUSING OIL BAFFLE
33143-22020

GX81,LX80,SX80,YX80..5F

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2402052

GX81..5F..(TWC,TWT)

NEW MAROON,TRIM3#

 1
33504-2402034

GX81..5F..(TWC,TWT)

DARK BLUE,TRIM8#

 1
33504-2402026

GX81..5F..(TWC,TWT)

SABLE,TRIM4#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-22080

GX81,SX80,YX80..5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-22180

GX81..5F

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

GX81,LX80,SX80,YX80..5F

 1
33555B - BOOT, SHIFT & SELECT LEVER
33555-22090

GX81,SX80,YX80..5F

 1
33555H - BOOT, SHIFT & SELECT LEVER, NO.4
33555-22050

GX81,LX80,SX80,YX80..5F

 1
33584B - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2
33584-22020

GX81,LX80,SX80,YX80..5F

 1
Common parts
91611-60825
93381-16012
