GX81-CEMQF (1988)
Toyota Cresta
(8808- )5F..SLT ; (9008- )SDX

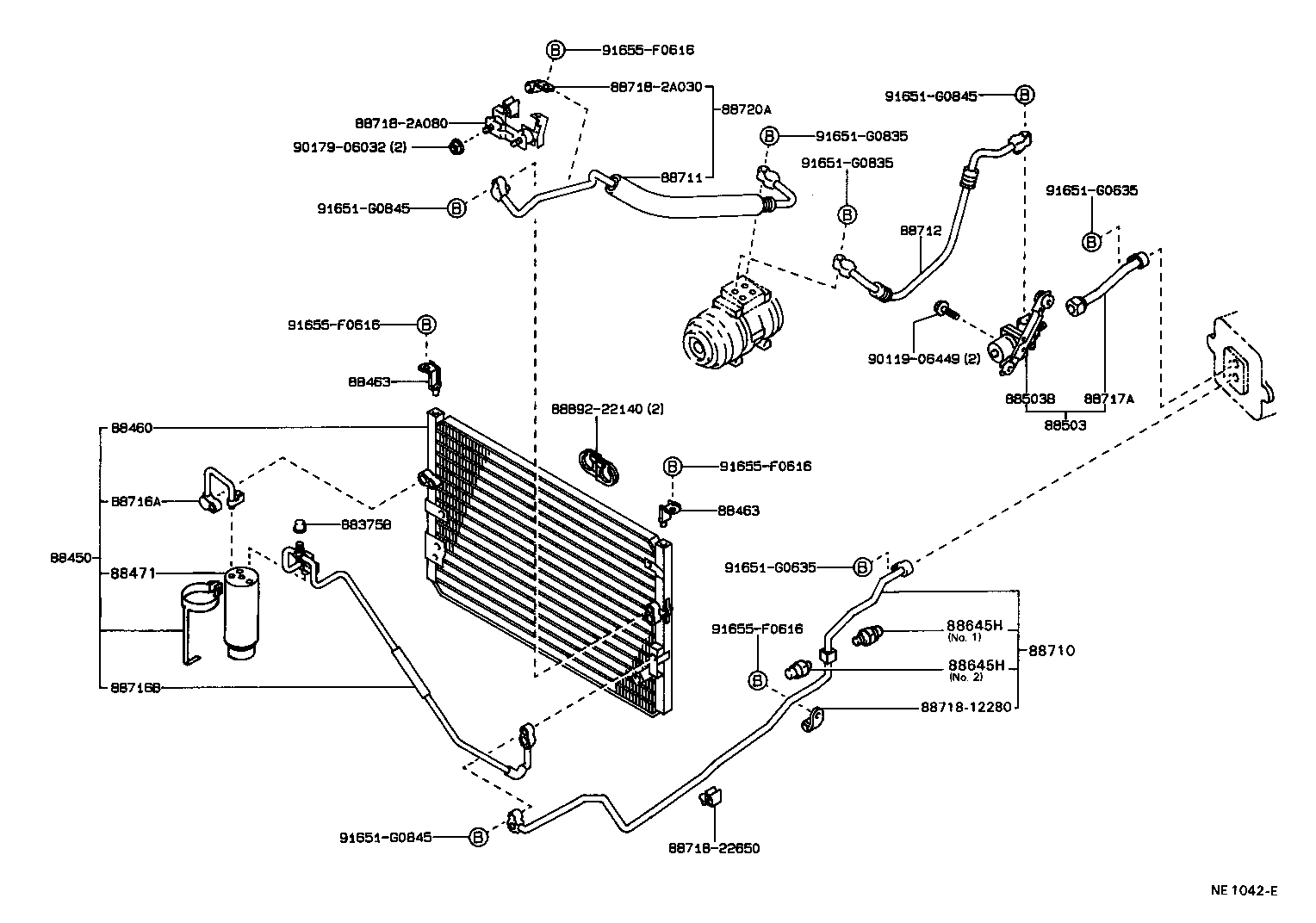

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-20010 |
GX81,MX83..GT,SLT,SLTG |
1 | ||
| 88375-20010 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88460-22351 |
GX81,MX83..(GT,SLT,SLTG)..(HTWC,TWC,TWT) |
1 | ||
| 88460-22350 |
GX81..GT,SLT |
1 | ||
| 88460-22351 |
GX81,JZX81,MX83,SX80..SCM,SDX,SLT,SLTG |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-22390 |
GX81,MX83,SX80..GT,KYO,SLT,SLTG |
1 | ||
| 88460-22390 |
SX80;GX81,LX80..GT,SCM,SDX,SLT,SLTG |
1 | ||
| 88460-22390 |
SX80;GX81,JZX81,LX80,MX83..SCM,SDX,SLT,SLTG |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 88463-22010 |
GX81,LX80,SX80,YX80 |
2 | ||
| 88463-22010 |
GX81,LX80,MX83,SX80,YX80..GT,KYO,SLT,SLTG |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 88463-22010 |
GX81,LX80,SX80,YX80 |
2 | ||
| 88463-22010 |
GX81,LX80,MX83,SX80,YX80..GT,KYO,SLT,SLTG |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-12020 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG |
1 | ||
| 88471-12020 |
GX81,MX83..GT,SLT,SLTG |
1 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-22180 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG |
1 | ||
| 88503-22181 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG |
1 | ||
| 88503-22180 |
GX81,MX83..GT,SLT,SLTG |
1 | ||
| 88503B - REGULATOR SUB-ASSY, PRESSURE | ||||
| 88503-22190 |
GX81,MX83..GT,SLT,SLTG |
1 | ||
| 88503-22190 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG |
1 | ||
| 88503-22191 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30281 |
GX81..GT,SLT,SLTG NO.2 |
1 | ||
| 88645-30281 |
GX81,YX80..5F;LX80..5F..SCM |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30281 |
GX81..GT,SLT,SLTG NO.2 |
1 | ||
| 88645-30281 |
GX81,YX80..5F;LX80..5F..SCM |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-22280 |
GX81..5F..SLT |
1 | ||
| 88710-22280 |
GX81,LX80..5F..(SCM,SDX,SLT) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-22430 |
GX81..HTWC,TWC,TWT |
1 | ||
| 88711-22430 |
GX81 |
1 | ||
| 88711-22431 |
GX81 |
1 | ||
| 88711-22430 |
GX81..GT,SLT |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22650 |
GX81..HTWC,TWC,TWT |
1 | ||
| 88712-22650 |
GX81..GT,SLT |
1 | ||
| 88712-22650 |
GX81 |
1 | ||
| 88712-22651 |
GX81 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-22840 |
GX81,SX80..CI,HTWC,TWC,TWT |
1 | ||
| 88716-22840 |
GX81,MX83,SX80..(GT,KYO,SLT,SLTG)..(CI,HTWC,TWC,TWT) |
1 | ||
| 88716-22840 |
GX81,JZX81,MX83,SX80..HTWC,TWC |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-22850 |
GX81,SX80..CI,HTWC,TWC,TWT |
1 | ||
| 88716-22850 |
GX81,JZX81,MX83,SX80..HTWC,TWC |
1 | ||
| 88716-22850 |
GX81,MX83,SX80..(GT,KYO,SLT,SLTG)..(CI,HTWC,TWC,TWT) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-22340 |
GX81,MX83..GT,SLT,SLTG |
1 | ||
| 88717-22340 |
GX81,LX80..GT,SCM,SDX,SLT,SLTG |
1 | ||
| 88717-22340 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-22030 |
GX81 |
1 | ||
| 88720-22030 |
GX81..GT,SLT |
1 | ||
| 88720-22031 |
GX81 |
1 | ||
| Common parts | ||||
| 88718-12280 | ||||
| 88718-22650 | ||||
| 88718-2A030 | ||||
| 88718-2A080 | ||||
| 88892-22140 | ||||
| 90119-06449 | ||||
| 90179-06032 | ||||
| 91651-G0635 | ||||
| 91651-G0835 | ||||
| 91651-G0845 | ||||
| 91655-F0616 | ||||
