GX81-CEMQF (1988)
Toyota Cresta

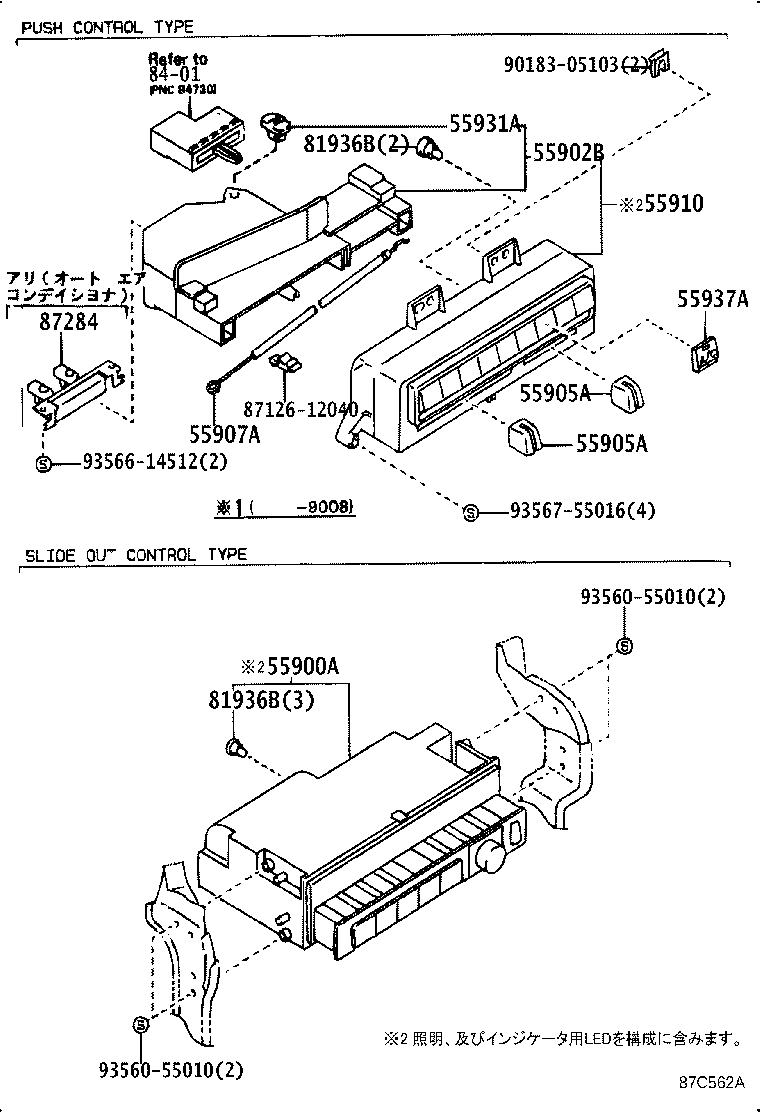

ILLUST NO. 1 OF 3(8808- )GT,SCM,SDX,SLT,SLTG
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-22331 |
GX81,JZX81,MX83..GT,SLT,SLTG |
1 | ||
| 55900-22330 |
GX81..GT,SLT,SLTG |
1 | ||
| 81936B - BULB ASSY, COOLER CONTROL | ||||
| 81936-22110 |
GX81,JZX81,MX83..GT,SLT,SLTG |
3 | ||
| 81936B - BULB ASSY, COOLER CONTROL | ||||
| 81936-22110 |
GX81,JZX81,MX83..GT,SLT,SLTG |
3 | ||
| Common parts | ||||
| 87126-12040 | ||||
| 90183-05103 | ||||
| 93560-55010 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

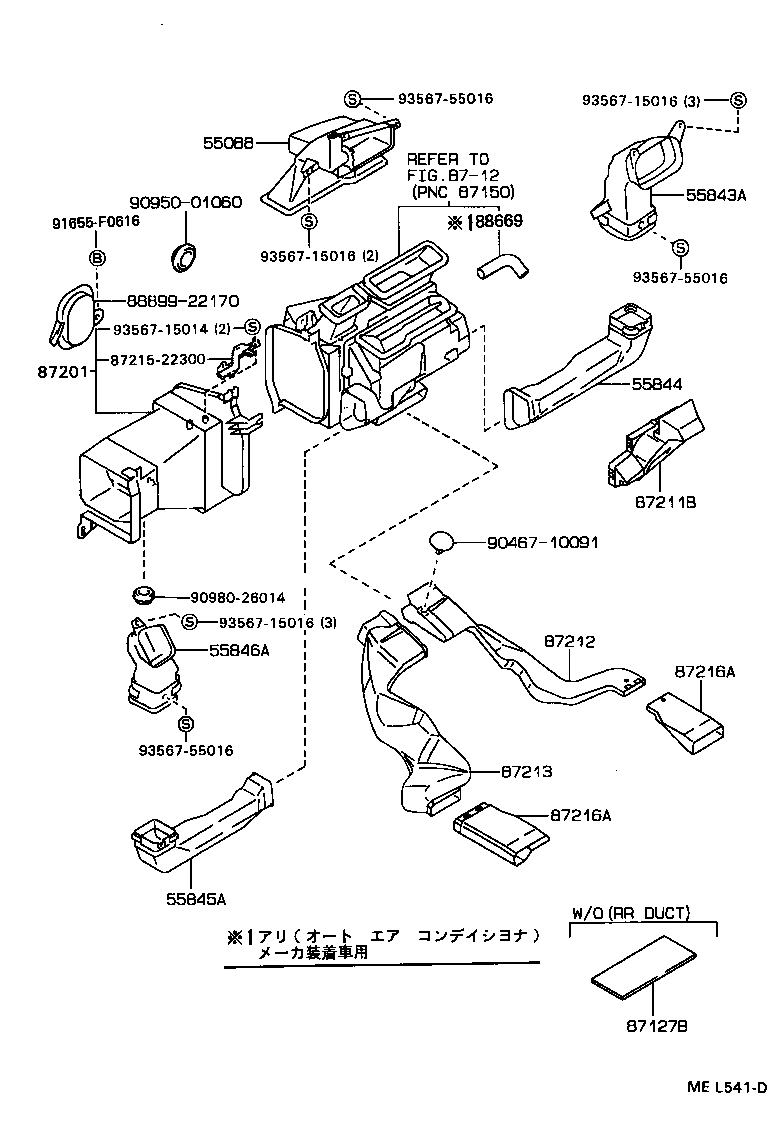

ILLUST NO. 3 OF 3(8808- )
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55088 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.5 | ||||
| 55088-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-22110 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-22110 |
GX81,MX83..GT,SLT,SLTG |
1 | ||
| 55844-22110 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-22180 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-22080 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-22130 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-22030 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-22030 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG |
1 | ||
| 87216A - DUCT, AIR, REAR NO.5 | ||||
| 87215-22020 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG 右側 |
1 | ||
| 87216-22030 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG 左側 |
1 | ||
| 87216A - DUCT, AIR, REAR NO.5 | ||||
| 87215-22020 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG 右側 |
1 | ||
| 87216-22030 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG 左側 |
1 | ||
| 88669 - HOSE, COOLER AIR | ||||
| 88669-22010 |
GX81,JZX81,MX83..GT,SLT,SLTG |
1 | ||
| Common parts | ||||
| 87215-22300 | ||||
| 88899-22170 | ||||
| 90467-10091 | ||||
| 90950-01060 | ||||
| 90980-26014 | ||||
| 91655-F0616 | ||||
| 93567-15014 | ||||
| 93567-15016 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8712 | ||||

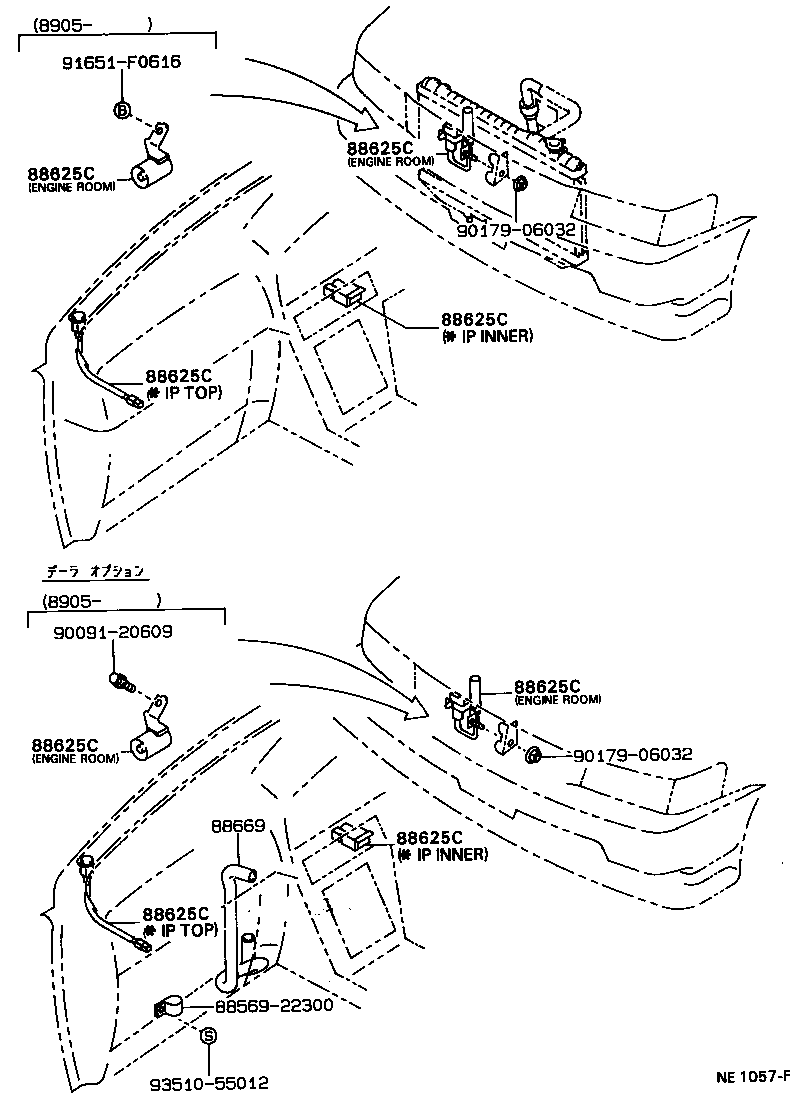

ILLUST NO. 2 OF 3(8808- )GT,SCM,SDX,SLT,SLTG
AUTO SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22140 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88625-22140 |
GX81..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,MX83..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81..GT,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22220 |
GX81,JZX81,LX80,MX83,SX80..SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88790-22040 |
GX81,MX83..GT,SLT,SLTG *IP INNER |
1 | ||
| 88625-22151 |
GX81,MX83..SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88790-22040 |
GX81,JZX81,MX83..GT,SLT,SLTG |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22140 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88625-22140 |
GX81..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,MX83..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81..GT,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22220 |
GX81,JZX81,LX80,MX83,SX80..SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88790-22040 |
GX81,MX83..GT,SLT,SLTG *IP INNER |
1 | ||
| 88625-22151 |
GX81,MX83..SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88790-22040 |
GX81,JZX81,MX83..GT,SLT,SLTG |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22140 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88625-22140 |
GX81..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,MX83..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81..GT,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22220 |
GX81,JZX81,LX80,MX83,SX80..SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88790-22040 |
GX81,MX83..GT,SLT,SLTG *IP INNER |
1 | ||
| 88625-22151 |
GX81,MX83..SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88790-22040 |
GX81,JZX81,MX83..GT,SLT,SLTG |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22140 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88625-22140 |
GX81..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,MX83..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81..GT,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22220 |
GX81,JZX81,LX80,MX83,SX80..SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88790-22040 |
GX81,MX83..GT,SLT,SLTG *IP INNER |
1 | ||
| 88625-22151 |
GX81,MX83..SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88790-22040 |
GX81,JZX81,MX83..GT,SLT,SLTG |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22140 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88625-22140 |
GX81..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,MX83..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81..GT,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22220 |
GX81,JZX81,LX80,MX83,SX80..SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88790-22040 |
GX81,MX83..GT,SLT,SLTG *IP INNER |
1 | ||
| 88625-22151 |
GX81,MX83..SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88790-22040 |
GX81,JZX81,MX83..GT,SLT,SLTG |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22140 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88625-22140 |
GX81..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,MX83..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81..GT,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22220 |
GX81,JZX81,LX80,MX83,SX80..SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88790-22040 |
GX81,MX83..GT,SLT,SLTG *IP INNER |
1 | ||
| 88625-22151 |
GX81,MX83..SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88790-22040 |
GX81,JZX81,MX83..GT,SLT,SLTG |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22140 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88625-22140 |
GX81..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,MX83..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81..GT,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22220 |
GX81,JZX81,LX80,MX83,SX80..SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88790-22040 |
GX81,MX83..GT,SLT,SLTG *IP INNER |
1 | ||
| 88625-22151 |
GX81,MX83..SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88790-22040 |
GX81,JZX81,MX83..GT,SLT,SLTG |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22140 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88625-22140 |
GX81..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,MX83..GT,SLT,SLTG *IP TOP |
1 | ||
| 88625-22150 |
GX81..GT,SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22220 |
GX81,JZX81,LX80,MX83,SX80..SCM,SDX,SLT,SLTG ENGINE ROOM |
1 | ||
| 88790-22040 |
GX81,MX83..GT,SLT,SLTG *IP INNER |
1 | ||
| 88625-22151 |
GX81,MX83..SLT,SLTG ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG *IP TOP |
1 | ||
| 88790-22040 |
GX81,JZX81,MX83..GT,SLT,SLTG |
1 | ||
| 88669 - HOSE, COOLER AIR | ||||
| 88669-22010 |
GX81,JZX81,MX83..GT,SLT,SLTG |
1 | ||
| Common parts | ||||
| 88569-22300 | ||||
| 90091-20609 | ||||
| 90179-06032 | ||||
| 91651-F0616 | ||||
| 93510-55012 | ||||
