GX81-CEMQF (1988)

Toyota Cresta

Production Aug 1988 - Oct 1992
Engine 1GGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9210)GT,SLT,SLTG ; (9111-9210)SCM..HTWC,TD

Click highlighted areas on diagram

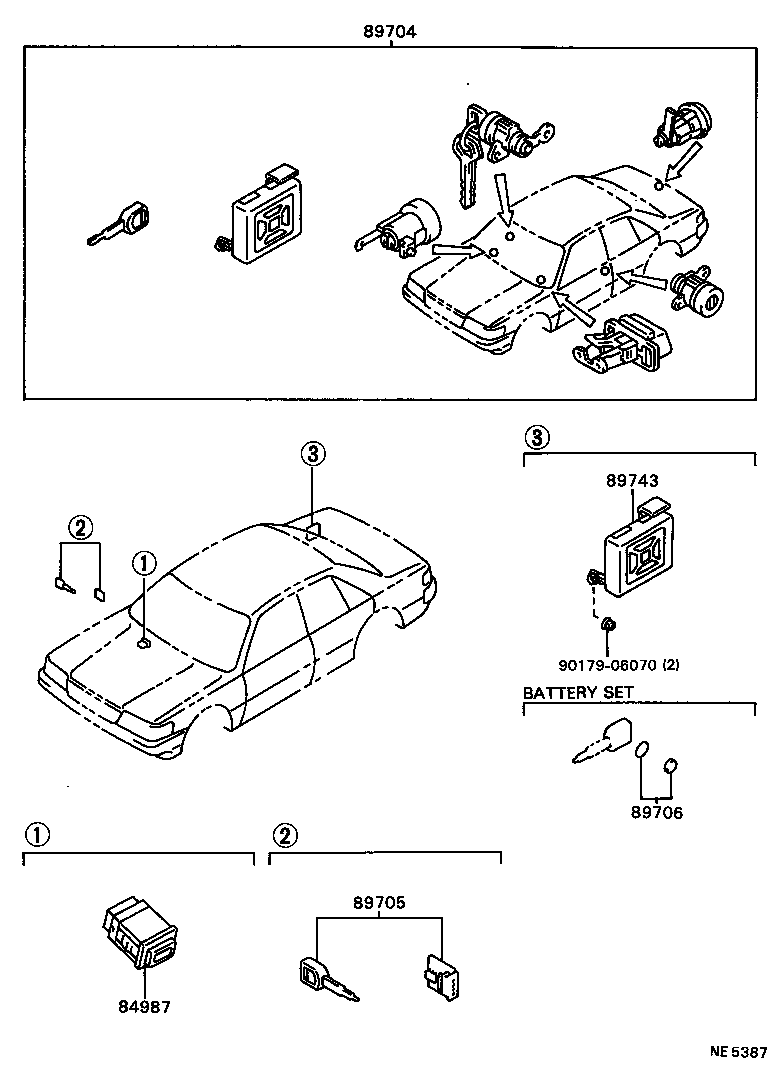

diagram 84987 89704 89705 89706 89743 9017906070
Part # Description Qty Price
84987 - SWITCH, WIRELESS DOOR LOCK MAIN
84987-22010

GX81,JZX81,MX83..GT,SLT,SLTG

 1
89704 - CONTROL SET, WIRELESS DOOR LOCK
89704-22040

GX81,JZX81,MX83..GT,SLT,SLTG

 1
89705 - TRANSMITTER, DOOR CONTROL
89705-22030

GX81,JZX81,MX83..GT,SLT,SLTG

 1
89706 - BATTERY SET, TRANSMITTER
89706-30010

GX81,JZX81,MX83..GT,SLT,SLTG

 1
89743 - RECEIVER, DOOR CONTROL
89743-22030

GX81,JZX81,MX83..GT,SLT,SLTG

 1
Common parts
90179-06070
