GX81-CEMQF (1988)

Toyota Cresta

Production Aug 1988 - Oct 1992
Engine 1GGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

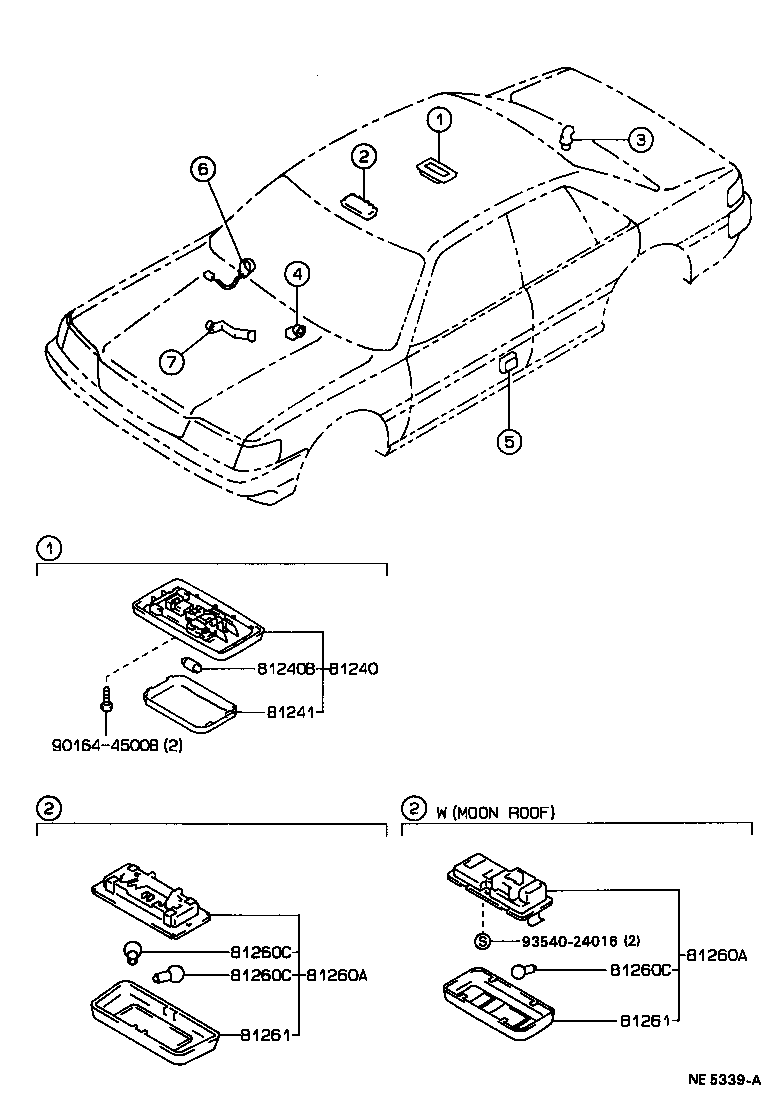

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 81240 81240B 81241 81260A 81260A 81260C 81260C 81260C 81261 81261 9016445008 9354024016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2211006

GX81..SPC,TWC,TWT

SABLE,TRIM3#,4#

 1
81240-2211004

GX81,MX83..SPC,TWC,TWT

BLUE,TRIM8#

 1
81240-2211006

GX81,MX83..SPC,TWC

SABLE,TRIM3#

 1
81240-2211013

GX81,JZX81,MX83..TWC,TWT

MEDIUM GRAY,TRIM1#

 1
81240-2211006

GX81,JZX81,MX83..TWC,TWT

SABLE,TRIM4#

 1
81240-2211012

GX81,JZX81,MX83..TWC,TWT

NEW MAROON,TRIM3#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GX81,JZX81,LX80,MX83,SX80,YX80

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-22110

GX81,JZX81,MX83..GT,SLT,SLTG

 1
81260A - LAMP ASSY, MAP
81260-2212002

GX81,MX83..SPC,TWC,TWT

MAROON,TRIM3#

 1
81260-2212006

GX81..SPC,TWC,TWT

SABLE,TRIM4#

 1
81260-2212004

GX81,MX83..SPC,TWC,TWT

BLUE,TRIM8#

 1
81260-2213016

GX81..SPC,TWC,TWT

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81260-2212003

GX81,JZX81,MX83..TWC,TWT

MEDIUM GRAY,TRIM1#

 1
81260-2213002

GX81,MX83..SPC,TWC,TWT

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MAROON,TRIM3#

 1
81260-2213023

GX81,JZX81,MX83..GT,SLT,SLTG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MEDIUM GRAY,TRIM1#

 1
81260-2212012

GX81,JZX81,MX83..TWC,TWT

NEW MAROON,TRIM3#

 1
81260-2213014

GX81,MX83..SPC,TWC,TWT

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),BLUE,TRIM8#

 1
81260-2213006

GX81,JZX81,MX83..GT,SLT,SLTG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT SABLE,TRIM4#

 1
81260-2213032

GX81,JZX81,MX83..GT,SLT,SLTG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),NEW MAROON,TRIM3#

 1
81260-2212016

GX81,JZX81,MX83..TWC,TWT

LIGHT SABLE,TRIM4#

 1
81260A - LAMP ASSY, MAP
81260-2212002

GX81,MX83..SPC,TWC,TWT

MAROON,TRIM3#

 1
81260-2212006

GX81..SPC,TWC,TWT

SABLE,TRIM4#

 1
81260-2212004

GX81,MX83..SPC,TWC,TWT

BLUE,TRIM8#

 1
81260-2213016

GX81..SPC,TWC,TWT

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81260-2212003

GX81,JZX81,MX83..TWC,TWT

MEDIUM GRAY,TRIM1#

 1
81260-2213002

GX81,MX83..SPC,TWC,TWT

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MAROON,TRIM3#

 1
81260-2213023

GX81,JZX81,MX83..GT,SLT,SLTG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MEDIUM GRAY,TRIM1#

 1
81260-2212012

GX81,JZX81,MX83..TWC,TWT

NEW MAROON,TRIM3#

 1
81260-2213014

GX81,MX83..SPC,TWC,TWT

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),BLUE,TRIM8#

 1
81260-2213006

GX81,JZX81,MX83..GT,SLT,SLTG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT SABLE,TRIM4#

 1
81260-2213032

GX81,JZX81,MX83..GT,SLT,SLTG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),NEW MAROON,TRIM3#

 1
81260-2212016

GX81,JZX81,MX83..TWC,TWT

LIGHT SABLE,TRIM4#

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

GX81,JZX81,LX80,MX83,SX80,YX80

12V 10W

 2
90981-12014

GX81,JZX81,MX83..GT,SLT,SLTG

12V 10W,ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

GX81,JZX81,LX80,MX83,SX80,YX80

12V 10W

 2
90981-12014

GX81,JZX81,MX83..GT,SLT,SLTG

12V 10W,ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

GX81,JZX81,LX80,MX83,SX80,YX80

12V 10W

 2
90981-12014

GX81,JZX81,MX83..GT,SLT,SLTG

12V 10W,ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
81261 - LENS AND COVER, MAP LAMP
81261-2212004

GX81,MX83..SPC,TWC,TWT

BLUE,TRIM8#

 1
81261-2213014

GX81,MX83..SPC,TWC,TWT

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),BLUE,TRIM8#

 1
81261-2213016

GX81..SPC,TWC,TWT

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81261-2212002

GX81,MX83..SPC,TWC,TWT

MAROON,TRIM3#

 1
81261-2213002

GX81,MX83..SPC,TWC,TWT

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MAROON,TRIM3#

 1
81261-2212006

GX81..SPC,TWC,TWT

SABLE,TRIM4#

 1
81261-2213023

GX81,JZX81,MX83..GT,SLT,SLTG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MIDIUM GRAY,TRIM1#

 1
81261-22120B0

GX81,JZX81,MX83..TWC,TWT

MIDIUM GRAY,TRIM1#

 1
81261-2213032

GX81,JZX81,MX83..GT,SLT,SLTG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),NEW MAROON,TRIM3#

 1
81261-2213006

GX81,JZX81,MX83..GT,SLT,SLTG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT SABLE,TRIM4#

 1
81261-2212016

GX81,JZX81,MX83..TWC,TWT

LIGHT SABLE,TRIM4#

 1
81261-2212012

GX81,JZX81,MX83..TWC,TWT

NEW MAROON,TRIM3#

 1
81261 - LENS AND COVER, MAP LAMP
81261-2212004

GX81,MX83..SPC,TWC,TWT

BLUE,TRIM8#

 1
81261-2213014

GX81,MX83..SPC,TWC,TWT

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),BLUE,TRIM8#

 1
81261-2213016

GX81..SPC,TWC,TWT

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81261-2212002

GX81,MX83..SPC,TWC,TWT

MAROON,TRIM3#

 1
81261-2213002

GX81,MX83..SPC,TWC,TWT

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MAROON,TRIM3#

 1
81261-2212006

GX81..SPC,TWC,TWT

SABLE,TRIM4#

 1
81261-2213023

GX81,JZX81,MX83..GT,SLT,SLTG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MIDIUM GRAY,TRIM1#

 1
81261-22120B0

GX81,JZX81,MX83..TWC,TWT

MIDIUM GRAY,TRIM1#

 1
81261-2213032

GX81,JZX81,MX83..GT,SLT,SLTG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),NEW MAROON,TRIM3#

 1
81261-2213006

GX81,JZX81,MX83..GT,SLT,SLTG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT SABLE,TRIM4#

 1
81261-2212016

GX81,JZX81,MX83..TWC,TWT

LIGHT SABLE,TRIM4#

 1
81261-2212012

GX81,JZX81,MX83..TWC,TWT

NEW MAROON,TRIM3#

 1
Common parts
90164-45008
93540-24016

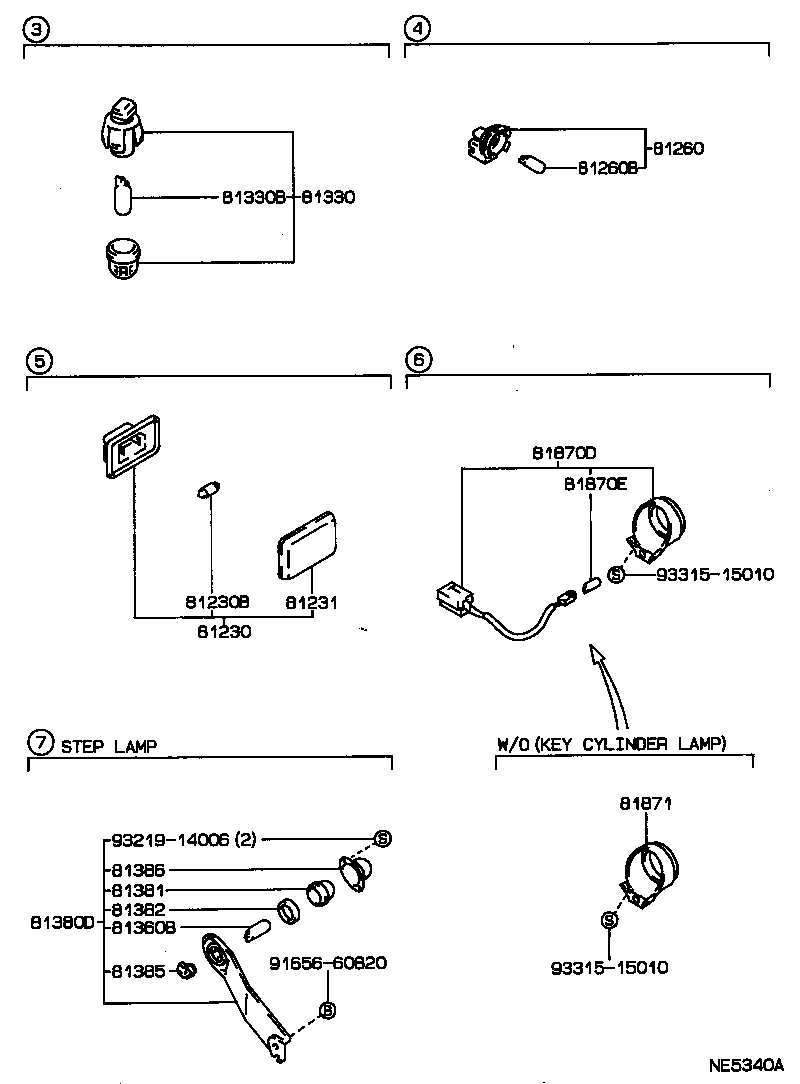

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 81230 81230B 81231 81260 81260B 81330 81330B 81360B 81380D 81381 81382 81385 81386 81870D 81870E 81871 9165660820 9321914006 9331515010 9331515010
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-30120

GX81,JZX81,MX83..GT,SLT,SLTG

 2
81230B - BULB(FOR COURTESY LAMP)
90981-14001

GX81,JZX81,MX83..GT,SLT,SLTG

12V 3W

 2
81231 - LENS, COURTESY LAMP
81231-30120

GX81,JZX81,MX83..GT,SLT,SLTG

 2
81260 - LAMP ASSY, GLOVE BOX
81260-32071

GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG

12V 1.2W ｿｹｯﾄ無し

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-30090

GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG

12V 3.8W

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-22030

GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11018

GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG

12V 1.2W ｿｹｯﾄ無し

 1
Common parts
91656-60820
93219-14006
93315-15010
