GX81-CEMQF (1988)

Toyota Cresta

Production Aug 1988 - Oct 1992
Engine 1GGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )GX81,LX80,SX80..5F

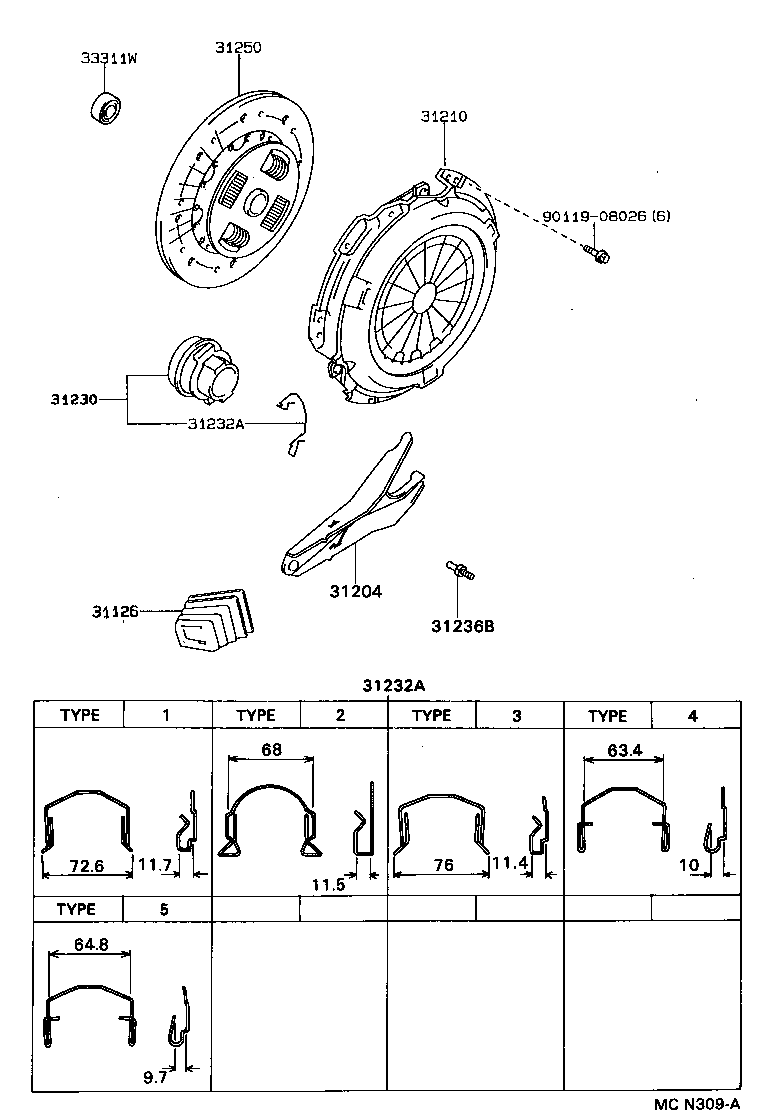

Click highlighted areas on diagram

W55,W57,W58

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 33311W 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

GX81,LX80,SX80..5F..(KYO,SCM,SDX,SLT)

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35050

GX81,LX80,SX80..5F..(KYO,SCM,SDX,SLT)

 1
31210 - COVER ASSY, CLUTCH
31210-22100

GX81..5F..(HTWC,TWC)

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35090

GX81..5F..(HTWC,TWC)

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

GX81,LX80,SX80..5F..(DSL,HTWC,TWC)

 1
31232-35040

GX81..5F

 1
31232-35040

GX81,LX80..5F..(TD,TWC)

TYPE 3

 1
31232-35040

GX81,LX80..5F..(HTWC,TD,TWC)

 1
31232-35020

GX81,LX80,SX80..5F..(CI,DSL,HTWC,TWC)

TYPE 1

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

GX81,LX80,SX80..5F..(DSL,HTWC,TWC)

 1
31232-35040

GX81..5F

 1
31232-35040

GX81,LX80..5F..(TD,TWC)

TYPE 3

 1
31232-35040

GX81,LX80..5F..(HTWC,TD,TWC)

 1
31232-35020

GX81,LX80,SX80..5F..(CI,DSL,HTWC,TWC)

TYPE 1

 1
31236B - SUPPORT, RELEASE FORK
31236-30060

GX81,LX80,SX80,YX80..5F..(KYO,SCM,SDX,SLT)

 1
31250 - DISC ASSY, CLUTCH
31250-22230

GX81..5F..(HTWC,TWC)

 1
31250-22231

GX81..5F..(HTWC,TWC)

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12003

GX81..5F

 1
Common parts
90119-08026
