GX71-YEPME (1984)

Toyota Cresta

Production Aug 1984 - Aug 1988
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

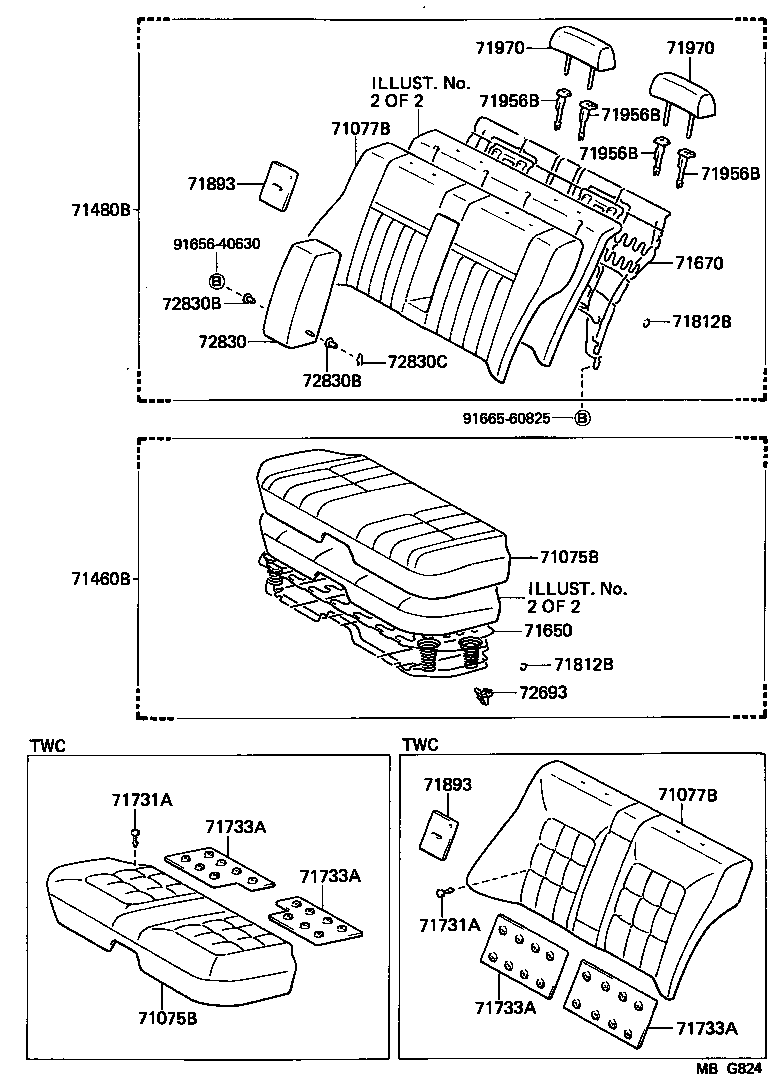

ILLUST NO. 1 OF 2(8408- )

Click highlighted areas on diagram

diagram 71075B 71075B 71077B 71077B 71460B 71480B 71650 71670 71731A 71731A 71733A 71733A 71733A 71733A 71812B 71812B 71893 71893 71956B 71956B 71956B 71956B 71970 71970 72693 72830 72830B 72830B 72830C 9165640630 9166560825
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-2283002

GX71,LX70,SX70..SCM,SDX

FB,MAROON,MAROON,TRIM3#

 1
71075-2283005

GX71,LX70,SX70..SCM,SDX

FB,BEIGE,BEIGE,TRIM4#

 1
71075-2283003

GX71,LX70,SX70..SCM,SDX

FB,GRAY,COOL GRAY,TRIM1#

 1
71075-2283102

GX71..SDX

FB,MAROON,MAROON,TRIM3#

 1
71075-2267005

GX71..SDX

SDX EXTRA,FB,BEIGE,BEIGE,TRIM4#

 1
71075-2283105

GX71..SDX

FB,BEIGE,DARK BEIGE,TRIM4#

 1
71075-2283104

GX71..SDX

FB,BLUE,DARK BLUE,TRIM8#

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-2283002

GX71,LX70,SX70..SCM,SDX

FB,MAROON,MAROON,TRIM3#

 1
71075-2283005

GX71,LX70,SX70..SCM,SDX

FB,BEIGE,BEIGE,TRIM4#

 1
71075-2283003

GX71,LX70,SX70..SCM,SDX

FB,GRAY,COOL GRAY,TRIM1#

 1
71075-2283102

GX71..SDX

FB,MAROON,MAROON,TRIM3#

 1
71075-2267005

GX71..SDX

SDX EXTRA,FB,BEIGE,BEIGE,TRIM4#

 1
71075-2283105

GX71..SDX

FB,BEIGE,DARK BEIGE,TRIM4#

 1
71075-2283104

GX71..SDX

FB,BLUE,DARK BLUE,TRIM8#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2A10002

GX71,LX70,SX70..SCM,SDX

FB,MAROON,MAROON,TRIM3#

 1
71077-2A10003

GX71,LX70,SX70..SCM,SDX

FB,GRAY,COOL GRAY,TRIM1#

 1
71077-2A10005

GX71,LX70,SX70..SCM,SDX

FB,BEIGE,BEIGE,TRIM4#

 1
71077-2A10104

GX71..SDX

FB,BLUE,DARK BLUE,TRIM8#

 1
71077-2A15005

GX71..SDX

SDX EXTRA,FB,BEIGE,BEIGE,TRIM4#

 1
71077-2A10105

GX71..SDX

FB,BEIGE,DARK BEIGE,TRIM4#

 1
71077-2A10102

GX71..SDX

FB,MAROON,MAROON,TRIM3#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2A10002

GX71,LX70,SX70..SCM,SDX

FB,MAROON,MAROON,TRIM3#

 1
71077-2A10003

GX71,LX70,SX70..SCM,SDX

FB,GRAY,COOL GRAY,TRIM1#

 1
71077-2A10005

GX71,LX70,SX70..SCM,SDX

FB,BEIGE,BEIGE,TRIM4#

 1
71077-2A10104

GX71..SDX

FB,BLUE,DARK BLUE,TRIM8#

 1
71077-2A15005

GX71..SDX

SDX EXTRA,FB,BEIGE,BEIGE,TRIM4#

 1
71077-2A10105

GX71..SDX

FB,BEIGE,DARK BEIGE,TRIM4#

 1
71077-2A10102

GX71..SDX

FB,MAROON,MAROON,TRIM3#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-2205002

GX71,LX70,SX70..SCM,SDX

FB,MAROON,MAROON,TRIM3#

 1
71460-2272005

GX71..SDX

SDX EXTRA,FB,BEIGE,BEIGE,TRIM4#

 1
71560-2205005

GX71,LX70,SX70..SCM,SDX

FB,BEIGE,BEIGE,TRIM4#

 1
71560-2205003

GX71,LX70,SX70..SCM,SDX

FB,GRAY,COOL GRAY,TRIM1#

 1
71560-2205105

GX71..SDX

FB,BEIGE,DARK BEIGE,TRIM4#

 1
71560-2205104

GX71..SDX

FB,BLUE,DARK BLUE,TRIM8#

 1
71560-2205102

GX71..SDX

FB,MAROON,MAROON,TRIM3#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2A09003

GX71,LX70,SX70..SCM,SDX

FB,GRAY,COOL GRAY,TRIM1#

 1
71480-2A09002

GX71,LX70,SX70..SCM,SDX

FB,MAROON,MAROON,TRIM3#

 1
71480-2A17005

GX71..SDX

SDX EXTRA,FB,BEIGE,BEIGE,TRIM4#

 1
71480-2A09005

GX71,LX70,SX70..SCM,SDX

FB,BEIGE,BEIGE,TRIM4#

 1
71480-2A09102

GX71..SDX

FB,MAROON,MAROON,TRIM3#

 1
71480-2A09104

GX71..SDX

FB,BLUE,DARK BLUE,TRIM8#

 1
71480-2A09105

GX71..SDX

FB,BEIGE,DARK BEIGE,TRIM4#

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-22100

GX71,LX70,SX70..KYO,SCM,SDX

 1
71650-22100

GX71,LX70,MX71,SX70

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-22300

GX71..SDX

SDX EXTRA

 1
71670-22290

GX71,LX70,SX70..SCM,SDX

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

GX71,LX70,MX71,SX70

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

GX71,LX70,MX71,SX70

 1
71893 - GARNISH, REAR SEAT BACK SIDE, LOWER RH
71893-22010

GX71,LX70,MX71,SX70

 1
71893 - GARNISH, REAR SEAT BACK SIDE, LOWER RH
71893-22010

GX71,LX70,MX71,SX70

 1
71956B - SUPPORT, REAR SEAT HEADREST
71931-1001016

GX71..SDX

ﾛｯｸ無,SDX EXTRA,W/O LOCK,BROWN,SABLE,TRIM4#

 2
71930-1006016

GX71..SDX

ﾛｯｸ付,SDX EXTRA,W/LOCK,BROWN,SABLE,TRIM4#

 2
71956B - SUPPORT, REAR SEAT HEADREST
71931-1001016

GX71..SDX

ﾛｯｸ無,SDX EXTRA,W/O LOCK,BROWN,SABLE,TRIM4#

 2
71930-1006016

GX71..SDX

ﾛｯｸ付,SDX EXTRA,W/LOCK,BROWN,SABLE,TRIM4#

 2
71956B - SUPPORT, REAR SEAT HEADREST
71931-1001016

GX71..SDX

ﾛｯｸ無,SDX EXTRA,W/O LOCK,BROWN,SABLE,TRIM4#

 2
71930-1006016

GX71..SDX

ﾛｯｸ付,SDX EXTRA,W/LOCK,BROWN,SABLE,TRIM4#

 2
71956B - SUPPORT, REAR SEAT HEADREST
71931-1001016

GX71..SDX

ﾛｯｸ無,SDX EXTRA,W/O LOCK,BROWN,SABLE,TRIM4#

 2
71930-1006016

GX71..SDX

ﾛｯｸ付,SDX EXTRA,W/LOCK,BROWN,SABLE,TRIM4#

 2
71970 - HEADREST ASSY, REAR SEAT
71940-2220005

GX71..SDX

SDX EXTRA,RH,FB,BEIGE,BEIGE,TRIM4#

 1
71950-2208005

GX71..SDX

SDX EXTRA,LH,FB,BEIGE,BEIGE,TRIM4#

 1
71970 - HEADREST ASSY, REAR SEAT
71940-2220005

GX71..SDX

SDX EXTRA,RH,FB,BEIGE,BEIGE,TRIM4#

 1
71950-2208005

GX71..SDX

SDX EXTRA,LH,FB,BEIGE,BEIGE,TRIM4#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32010

GX71,LX70,MX71,SX70

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-2221005

GX71,LX70,SX70..SCM,SDX

FB,BEIGE,BEIGE,TRIM4#

 1
72830-2221002

GX71,LX70,SX70..SCM,SDX

FB,MAROON,MAROON,TRIM3#

 1
72830-2221003

GX71,LX70,SX70..SCM,SDX

FB,GRAY,COOL GRAY,TRIM1#

 1
72830-2221102

GX71..SDX

FB,MAROON,MAROON,TRIM3#

 1
72830-2221105

GX71..SDX

FB,BEIGE,DARK BEIGE,TRIM4#

 1
72830-2225005

GX71..SDX

SDX EXTRA,FB,BEIGE,BEIGE,TRIM4#

 1
72830-2221104

GX71..SDX

FB,BLUE,DARK BLUE,TRIM8#

 1
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

 2
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

 2
72830C - CLIP, REAR SEAT CENTER ARMREST
90468-12070

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

 1
Common parts
91656-40630
91665-60825

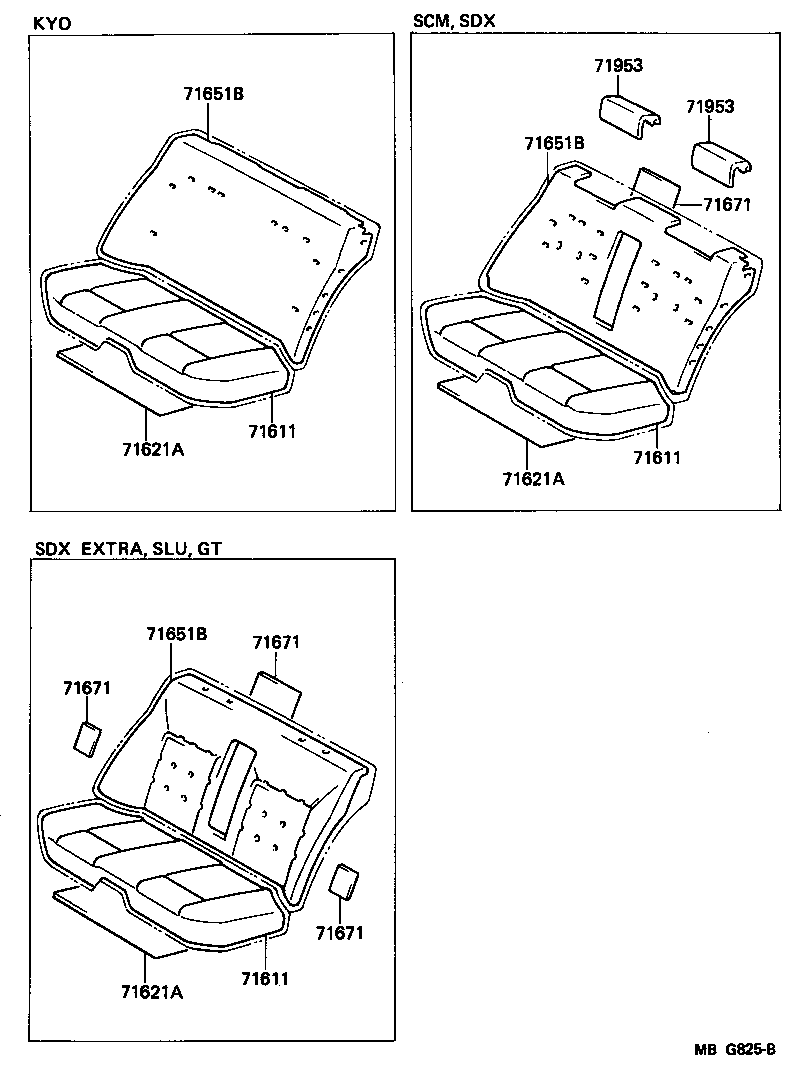

ILLUST NO. 2 OF 2(8408- )

Click highlighted areas on diagram

diagram 71611 71611 71611 71621A 71621A 71621A 71651B 71651B 71651B 71671 71671 71671 71671 71953 71953
Part # Description Qty Price
71611 - PAD, REAR SEAT CUSHION
71611-22190

GX71..SDX

SDX EXTRA

 1
71611-22230

GX71,LX70,SX70..SCM,SDX

 1
71611 - PAD, REAR SEAT CUSHION
71611-22190

GX71..SDX

SDX EXTRA

 1
71611-22230

GX71,LX70,SX70..SCM,SDX

 1
71611 - PAD, REAR SEAT CUSHION
71611-22190

GX71..SDX

SDX EXTRA

 1
71611-22230

GX71,LX70,SX70..SCM,SDX

 1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-22060

GX71,LX70,MX71,SX70

 1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-22060

GX71,LX70,MX71,SX70

 1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-22060

GX71,LX70,MX71,SX70

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-22180

GX71,LX70,SX70..SCM,SDX

 1
71507-22150

GX71..SDX

SDX EXTRA

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-22180

GX71,LX70,SX70..SCM,SDX

 1
71507-22150

GX71..SDX

SDX EXTRA

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-22180

GX71,LX70,SX70..SCM,SDX

 1
71507-22150

GX71..SDX

SDX EXTRA

 1
71671 - PAD, REAR SEAT BACK SILENCER, A
71671-22090

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

180X350

 1
71671 - PAD, REAR SEAT BACK SILENCER, A
71671-22090

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

180X350

 1
71671 - PAD, REAR SEAT BACK SILENCER, A
71671-22090

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

180X350

 1
71671 - PAD, REAR SEAT BACK SILENCER, A
71671-22090

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

180X350

 1
71953 - PAD, REAR SEAT HEADREST
71953-22120

GX71,LX70,SX70..SCM,SDX

 2
71953 - PAD, REAR SEAT HEADREST
71953-22120

GX71,LX70,SX70..SCM,SDX

 2
