GX71-YEPME (1984)

Toyota Cresta

Production Aug 1984 - Aug 1988
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

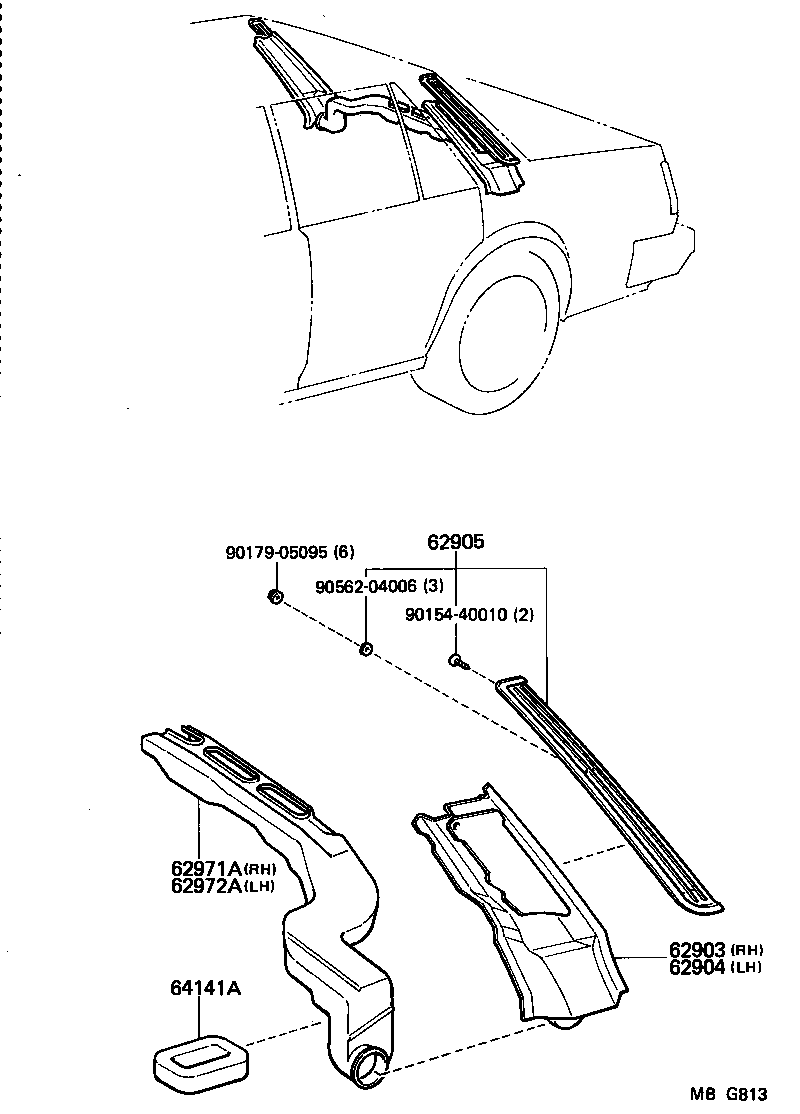

Click highlighted areas on diagram

diagram 62903 62904 62905 62971A 62972A 64141A 9015440010 9017905095 9056204006
Part # Description Qty Price
62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH
62903-22020

GX71,LX70,MX71,SX70

 1
62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH
62904-22020

GX71,LX70,MX71,SX70

 1
62905 - LOUVER, QUARTER VENTILATION
62952-22090

GX71,LX70,MX71,SX70

LH

 1
62951-22100

GX71,LX70,MX71,SX70

RH

 1
62952-22091

GX71,LX70,SX70

LH

 1
62951-22101

GX71,LX70,SX70

RH

 1
62971A - DUCT, ROOF SIDE AIR, NO.1 RH
62971-22011

GX71,LX70,SX70

 1
62971-22010

GX71,LX70,MX71,SX70

 1
62971-22020

GX71,LX70,SX70

COLD SPEC

 1
62972A - DUCT, ROOF SIDE AIR, NO.1 LH
62972-22010

GX71,LX70,MX71,SX70

 1
62972-22011

GX71,LX70,SX70

 1
62972-22020

GX71,LX70,SX70

COLD SPEC

 1
64141A - SILENCER, BACK PANEL, NO.1
64141-22011

GX71,LX70,SX70..KYO,SCM,SDX

COLD SPEC

 2
64141-22010

GX71,LX70,SX70..KYO,SCM,SDX

 2
Common parts
90154-40010
90179-05095
90562-04006
