GX71-YEPME (1984)

Toyota Cresta

Production Aug 1984 - Aug 1988
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

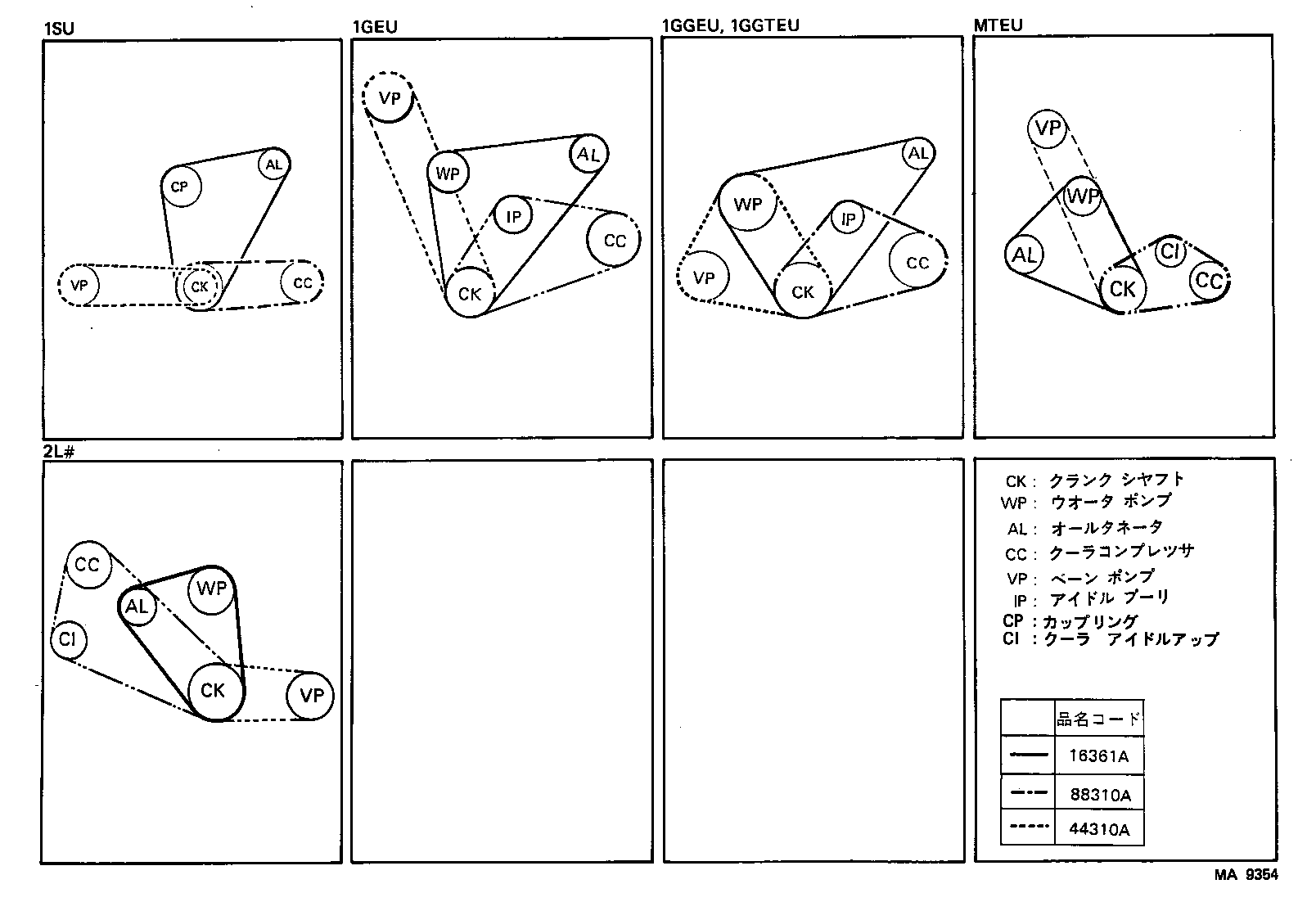

Click highlighted areas on diagram

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99364-01100

1GEU..GX71

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02092

GX71..EFI

 1
99322-01110

GX71..EFI

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-00850

GX71..EFI

長さ=850

 1
