GX71-YEPGF (1984)
Toyota Cresta
(8408- )GX71,MX71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48190R - CAM ASSY, CAMBER ADJUST | ||||
| 48190-22010 |
GX71,MX71 |
2 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-22010 |
GX71,MX71 |
2 | ||
| 48231 - SPRING, COIL, REAR | ||||
| 48231-22720 |
GX71,MX71..TBO,TWC |
2 | ||
| 48257 - INSULATOR, REAR COIL SPRING | ||||
| 48257-22030 |
GX71,MX71 |
2 | ||
| 48257A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-22050 |
GX71,MX71 LH |
1 | ||
| 48258-22041 |
GX71,MX71 RH |
1 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-24010 |
GX71,MX71 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80335 |
GX71..TWC |
1 | ||
| 48531-22590 |
GX71..TWC |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80335 |
GX71..TWC |
1 | ||
| 48531-22590 |
GX71..TWC |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16001 |
GX71,LX70,MX71,SX70 |
2 | ||
| 90385-16004 |
GX71,LX70,MX71,SX70 |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02070 |
GX71..TWC |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02070 |
GX71..TWC |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02070 |
GX71..TWC |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
GX71,LX70,MX71,SX70 |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01025 |
GX71..TWC LWR |
2 | ||
| 90948-01026 |
GX71..TWC UPR |
2 | ||
| 90948-01032 |
GX71..TWC LWR |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01025 |
GX71..TWC LWR |
2 | ||
| 90948-01026 |
GX71..TWC UPR |
2 | ||
| 90948-01032 |
GX71..TWC LWR |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01025 |
GX71..TWC LWR |
2 | ||
| 90948-01026 |
GX71..TWC UPR |
2 | ||
| 90948-01032 |
GX71..TWC LWR |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01025 |
GX71..TWC LWR |
2 | ||
| 90948-01026 |
GX71..TWC UPR |
2 | ||
| 90948-01032 |
GX71..TWC LWR |
2 | ||
| 48539 - BRACKET, ACTUATOR SUPPORT, RR | ||||
| 48539-22010 |
GX71..TWC |
2 | ||
| 48539A - RETAINER, CUSHION(FOR RR ACTUATOR SUPPORT BRACKET) | ||||
| 90948-02086 |
GX71..TWC |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80335 |
GX71..TWC |
1 | ||
| 48531-22590 |
GX71..TWC |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80335 |
GX71..TWC |
1 | ||
| 48531-22590 |
GX71..TWC |
1 | ||
| 48703 - ARM SUB-ASSY, REAR SUSPENSION, RH | ||||
| 48703-22917 |
GX71..SLU |
1 | ||
| 48703-22904 |
GX71,MX71..SLU |
1 | ||
| 48703F - PLUG, HOLE(FOR REAR SUSPENSION ARM) | ||||
| 47491-22020 |
GX71,MX71 OD=16 |
2 | ||
| 90950-01228 |
GX71,MX71 OD=30 |
3 | ||
| 48703F - PLUG, HOLE(FOR REAR SUSPENSION ARM) | ||||
| 47491-22020 |
GX71,MX71 OD=16 |
2 | ||
| 90950-01228 |
GX71,MX71 OD=30 |
3 | ||
| 48707 - ARM SUB-ASSY, REAR SUSPENSION, LH | ||||
| 48707-22917 |
GX71..SLU |
1 | ||
| 48707-22904 |
GX71,MX71..SLU |
1 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48725-22070 |
GX71,MX71..SDX,SLU OUTER |
2 | ||
| 48725-22080 |
GX71,MX71..SDX,SLU INNER |
2 | ||
| 48725-22081 |
GX71..EFI,TWC INNER |
2 | ||
| 48725-22071 |
GX71..EFI,TWC OUTER |
2 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48725-22070 |
GX71,MX71..SDX,SLU OUTER |
2 | ||
| 48725-22080 |
GX71,MX71..SDX,SLU INNER |
2 | ||
| 48725-22081 |
GX71..EFI,TWC INNER |
2 | ||
| 48725-22071 |
GX71..EFI,TWC OUTER |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-22130 |
GX71,MX71..TBO,TWC |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-22080 |
GX71,MX71..TBO,TWC,TWT |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12010 |
GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT |
8 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12010 |
GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT |
8 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12010 |
GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT |
8 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12010 |
GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT |
8 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT T=1.0 |
2 | ||
| 90948-02024 |
GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT T=1.2 |
8 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT T=1.0 |
2 | ||
| 90948-02024 |
GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT T=1.2 |
8 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT T=1.0 |
2 | ||
| 90948-02024 |
GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT T=1.2 |
8 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT T=1.0 |
2 | ||
| 90948-02024 |
GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT T=1.2 |
8 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT T=1.0 |
2 | ||
| 90948-02024 |
GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT T=1.2 |
8 | ||
| 48817T - COLLAR(FOR STABILIZER REAR BAR) | ||||
| 90387-09014 |
GX71,MX71 |
2 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 90101-08095 |
GX71,MX71 |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48832-22030 |
GX71,MX71 |
2 | ||
| Common parts | ||||
| 90101-12117 | ||||
| 90119-10355 | ||||
| 90170-12009 | ||||
| 90170-12021 | ||||
| 90170-14012 | ||||
| 90201-12452 | ||||
| 91616-41022 | ||||
| 91616-61028 | ||||
| 94110-41000 | ||||
| 94182-10800 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||

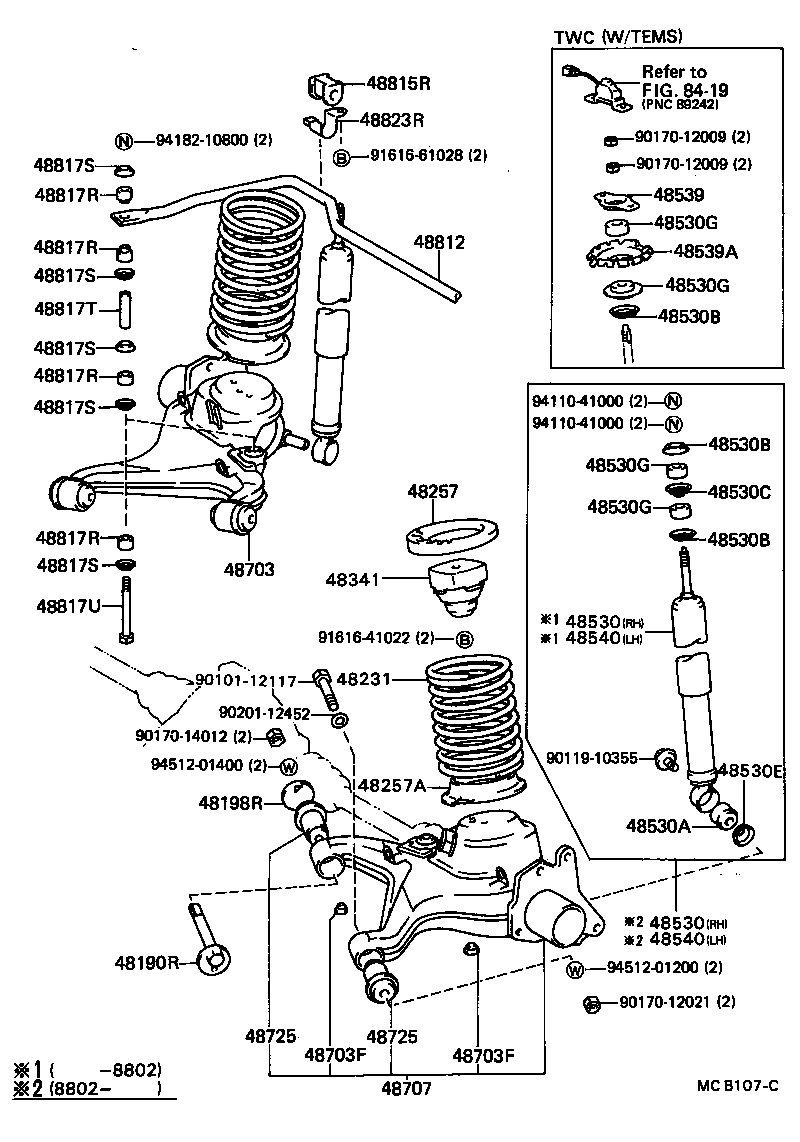

| Linked diagrams | ||||
| 8419 | ||||
