GX71-YEPGF (1984)
Toyota Cresta

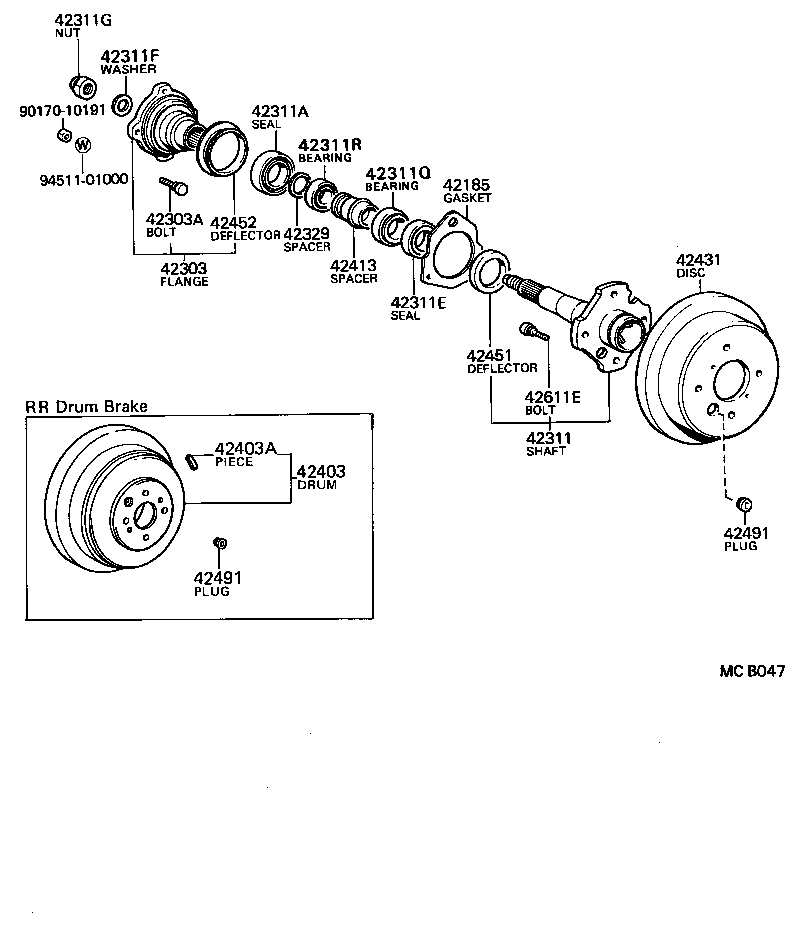

ILLUST NO. 1 OF 2(8408- )GX71,MX71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42185 - GASKET, REAR AXLE HOUSING END | ||||
| 42185-22030 |
GX71,MX71..SLU |
2 | ||
| 42303 - FLANGE SUB-ASSY, REAR AXLE | ||||
| 42303-22020 |
GX71,MX71 |
2 | ||
| 42303-22020 |
GX71..EFI,TWC |
2 | ||
| 42303A - BOLT, SERRATION (FOR REAR AXLE FLANGE) | ||||
| 90114-10003 |
GX71,MX71 |
8 | ||
| 90114-10028 |
GX71 |
8 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42301-22050 |
GX71,MX71 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-38009 |
GX71,MX71 |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90311-48001 |
GX71,MX71 |
2 | ||
| 42311F - WASHER, PLATE (FOR REAR AXLE SHAFT) | ||||
| 90201-20329 |
GX71,MX71 |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-20061 |
GX71,MX71 |
2 | ||
| 42311Q - BEARING (FOR REAR AXLE SHAFT OUTER) | ||||
| 90368-34083 |
GX71,MX71 |
2 | ||
| 42311R - BEARING (FOR REAR AXLE SHAFT INNER) | ||||
| 90366-30001 |
GX71,MX71 |
2 | ||
| 42329 - SPACER, REAR AXLE SHAFT | ||||
| 42329-22010 |
GX71,MX71 |
2 | ||
| 42413 - SPACER, REAR WHEEL BEARING | ||||
| 42413-22010 |
GX71,MX71 |
2 | ||
| 42431 - DISC, REAR | ||||
| 42431-22081 |
GX71..GT,SLU |
2 | ||
| 42431-22080 |
GX71..GT,SLU |
2 | ||
| 42431-22080 |
GX71,MX71..TBO,TWC |
2 | ||
| 42451 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 | ||||
| 42451-22010 |
GX71,MX71 |
2 | ||
| 42452 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.2 | ||||
| 42452-30010 |
GX71,MX71 |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
GX71,MX71..GT,SLU |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
GX71,MX71..GT,SLU |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
GX71,LX70,MX71,SX70 |
8 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||

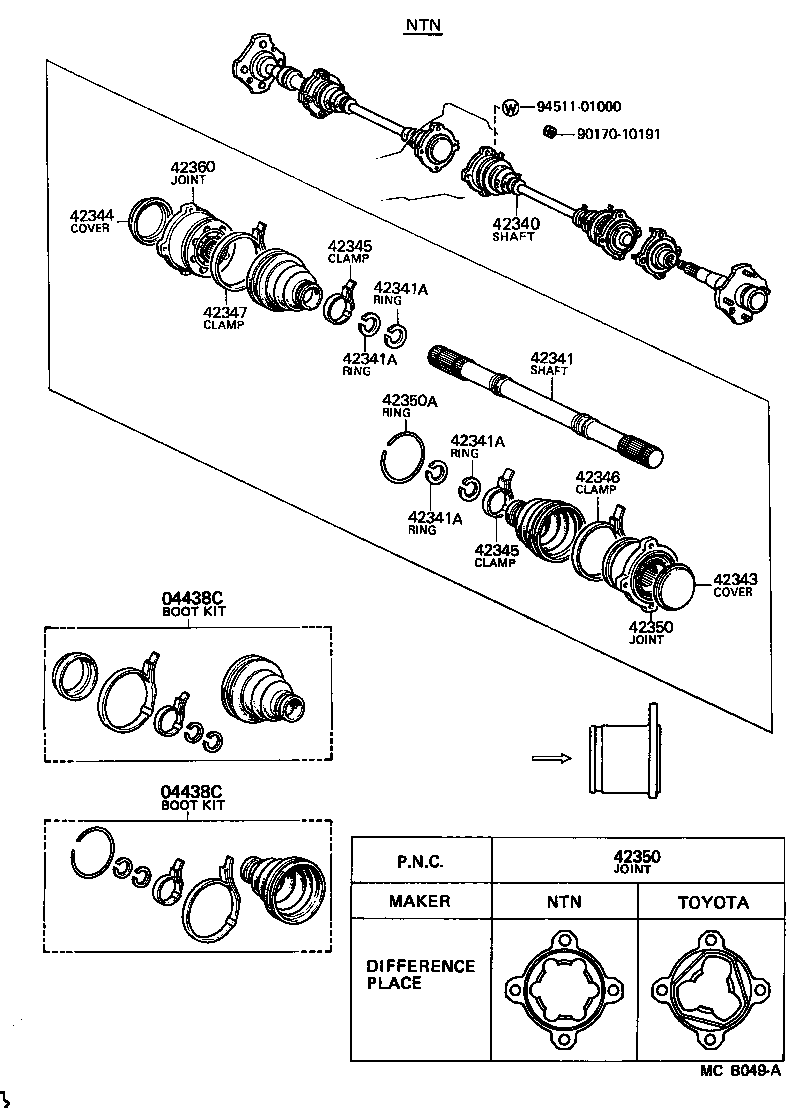

ILLUST NO. 2 OF 2(8408- )EFI ; (8408- )4FC..TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04437-22010 |
GX71,MX71 INNER,NTN |
2 | ||
| 04437-14020 |
GX71..4FC..TWC OUTER,TOYOTA |
2 | ||
| 04437-22020 |
GX71,MX71 OUTER,NTN |
2 | ||
| 04437-22020 |
GX71..EFI,TWC OUTER,NTN |
2 | ||
| 04437-22010 |
GX71..EFI,TWC INNER,NTN |
2 | ||
| 04437-22090 |
GX71..4FC..TWC INNER,TOYOTA |
2 | ||
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04437-22010 |
GX71,MX71 INNER,NTN |
2 | ||
| 04437-14020 |
GX71..4FC..TWC OUTER,TOYOTA |
2 | ||
| 04437-22020 |
GX71,MX71 OUTER,NTN |
2 | ||
| 04437-22020 |
GX71..EFI,TWC OUTER,NTN |
2 | ||
| 04437-22010 |
GX71..EFI,TWC INNER,NTN |
2 | ||
| 04437-22090 |
GX71..4FC..TWC INNER,TOYOTA |
2 | ||
| 42340 - SHAFT ASSY, REAR DRIVE | ||||
| 42340-24020 |
GX71,MX71..SDX,SLU NTN |
2 | ||
| 42340-24010 |
GX71..4FC..TWC TOYOTA |
2 | ||
| 42341 - SHAFT, REAR DRIVE | ||||
| 42341-24020 |
GX71,MX71..SDX,SLU NTN |
2 | ||
| 42341-24011 |
GX71..4FC..TWC TOYOTA |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
GX71,MX71 ID=26.4,OD=32.4,T=2.5,NTN |
4 | ||
| 90520-23024 |
GX71..4FC..TWC TOYOTA,OUTBOARD SIDE |
2 | ||
| 90520-26005 |
GX71..EFI,TWC ID=26.4,OD=32.4,T=2.5,NTN |
4 | ||
| 90520-26004 |
GX71,MX71 ID=26.1,OD=31.7,T=1.5,NTN |
4 | ||
| 90520-26028 |
GX71..4FC..TWC TOYOTA,INBOARD SIDE |
2 | ||
| 90520-26004 |
GX71..EFI,TWC ID=26.1,OD=31.7,T=1.5,NTN |
4 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
GX71,MX71 ID=26.4,OD=32.4,T=2.5,NTN |
4 | ||
| 90520-23024 |
GX71..4FC..TWC TOYOTA,OUTBOARD SIDE |
2 | ||
| 90520-26005 |
GX71..EFI,TWC ID=26.4,OD=32.4,T=2.5,NTN |
4 | ||
| 90520-26004 |
GX71,MX71 ID=26.1,OD=31.7,T=1.5,NTN |
4 | ||
| 90520-26028 |
GX71..4FC..TWC TOYOTA,INBOARD SIDE |
2 | ||
| 90520-26004 |
GX71..EFI,TWC ID=26.1,OD=31.7,T=1.5,NTN |
4 | ||
| 42343 - COVER, OUTBOARD JOINT END | ||||
| 42343-22010 |
GX71..EFI,TWC NTN |
2 | ||
| 42343-22010 |
GX71,MX71 NTN |
2 | ||
| 42343-14010 |
GX71..4FC..TWC TOYOTA |
2 | ||
| 42344 - COVER, REAR AXLE INBOARD JOINT END | ||||
| 42344-22010 |
GX71..EFI,TWC NTN |
2 | ||
| 42344-14010 |
GX71..4FC..TWC TOYOTA |
2 | ||
| 42344-22010 |
GX71,MX71 NTN |
2 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-22010 |
GX71..EFI,TWC NTN |
4 | ||
| 42345-14010 |
GX71..4FC..TWC TOYOTA |
4 | ||
| 42345-22010 |
GX71,MX71 NTN |
4 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-22010 |
GX71..EFI,TWC NTN |
4 | ||
| 42345-14010 |
GX71..4FC..TWC TOYOTA |
4 | ||
| 42345-22010 |
GX71,MX71 NTN |
4 | ||
| 42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42346-22010 |
GX71..EFI,TWC NTN |
2 | ||
| 42345-14020 |
GX71..4FC..TWC |
4 | ||
| 42346-22010 |
GX71,MX71 NTN |
2 | ||
| 42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42346-22010 |
GX71..EFI,TWC NTN |
2 | ||
| 42345-14020 |
GX71..4FC..TWC |
4 | ||
| 42346-22010 |
GX71,MX71 NTN |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-22010 |
GX71,MX71 NTN |
2 | ||
| 42350-22030 |
GX71..EFI,TWC NTN |
2 | ||
| 42350-14010 |
GX71..4FC..TWC TOYOTA |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-22010 |
GX71,MX71 NTN |
2 | ||
| 42350-22030 |
GX71..EFI,TWC NTN |
2 | ||
| 42350-14010 |
GX71..4FC..TWC TOYOTA |
2 | ||
| 42360 - JOINT ASSY, REAR DRIVE SHAFT INBOARD | ||||
| 42350-30010 |
GX71..4FC..TWC TOYOTA |
2 | ||
| 42360-22010 |
GX71,MX71..SDX,SLU NTN |
2 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||
ILLUST NO. 2 OF 2(8408- )GX71,MX71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04437-22010 |
GX71,MX71 INNER,NTN |
2 | ||
| 04437-14020 |
GX71..4FC..TWC OUTER,TOYOTA |
2 | ||
| 04437-22020 |
GX71,MX71 OUTER,NTN |
2 | ||
| 04437-22020 |
GX71..EFI,TWC OUTER,NTN |
2 | ||
| 04437-22010 |
GX71..EFI,TWC INNER,NTN |
2 | ||
| 04437-22090 |
GX71..4FC..TWC INNER,TOYOTA |
2 | ||
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04437-22010 |
GX71,MX71 INNER,NTN |
2 | ||
| 04437-14020 |
GX71..4FC..TWC OUTER,TOYOTA |
2 | ||
| 04437-22020 |
GX71,MX71 OUTER,NTN |
2 | ||
| 04437-22020 |
GX71..EFI,TWC OUTER,NTN |
2 | ||
| 04437-22010 |
GX71..EFI,TWC INNER,NTN |
2 | ||
| 04437-22090 |
GX71..4FC..TWC INNER,TOYOTA |
2 | ||
| 42340 - SHAFT ASSY, REAR DRIVE | ||||
| 42340-24020 |
GX71,MX71..SDX,SLU NTN |
2 | ||
| 42340-24010 |
GX71..4FC..TWC TOYOTA |
2 | ||
| 42341 - SHAFT, REAR DRIVE | ||||
| 42341-24020 |
GX71,MX71..SDX,SLU NTN |
2 | ||
| 42341-24011 |
GX71..4FC..TWC TOYOTA |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
GX71,MX71 ID=26.4,OD=32.4,T=2.5,NTN |
4 | ||
| 90520-23024 |
GX71..4FC..TWC TOYOTA,OUTBOARD SIDE |
2 | ||
| 90520-26005 |
GX71..EFI,TWC ID=26.4,OD=32.4,T=2.5,NTN |
4 | ||
| 90520-26004 |
GX71,MX71 ID=26.1,OD=31.7,T=1.5,NTN |
4 | ||
| 90520-26028 |
GX71..4FC..TWC TOYOTA,INBOARD SIDE |
2 | ||
| 90520-26004 |
GX71..EFI,TWC ID=26.1,OD=31.7,T=1.5,NTN |
4 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
GX71,MX71 ID=26.4,OD=32.4,T=2.5,NTN |
4 | ||
| 90520-23024 |
GX71..4FC..TWC TOYOTA,OUTBOARD SIDE |
2 | ||
| 90520-26005 |
GX71..EFI,TWC ID=26.4,OD=32.4,T=2.5,NTN |
4 | ||
| 90520-26004 |
GX71,MX71 ID=26.1,OD=31.7,T=1.5,NTN |
4 | ||
| 90520-26028 |
GX71..4FC..TWC TOYOTA,INBOARD SIDE |
2 | ||
| 90520-26004 |
GX71..EFI,TWC ID=26.1,OD=31.7,T=1.5,NTN |
4 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
GX71,MX71 ID=26.4,OD=32.4,T=2.5,NTN |
4 | ||
| 90520-23024 |
GX71..4FC..TWC TOYOTA,OUTBOARD SIDE |
2 | ||
| 90520-26005 |
GX71..EFI,TWC ID=26.4,OD=32.4,T=2.5,NTN |
4 | ||
| 90520-26004 |
GX71,MX71 ID=26.1,OD=31.7,T=1.5,NTN |
4 | ||
| 90520-26028 |
GX71..4FC..TWC TOYOTA,INBOARD SIDE |
2 | ||
| 90520-26004 |
GX71..EFI,TWC ID=26.1,OD=31.7,T=1.5,NTN |
4 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
GX71,MX71 ID=26.4,OD=32.4,T=2.5,NTN |
4 | ||
| 90520-23024 |
GX71..4FC..TWC TOYOTA,OUTBOARD SIDE |
2 | ||
| 90520-26005 |
GX71..EFI,TWC ID=26.4,OD=32.4,T=2.5,NTN |
4 | ||
| 90520-26004 |
GX71,MX71 ID=26.1,OD=31.7,T=1.5,NTN |
4 | ||
| 90520-26028 |
GX71..4FC..TWC TOYOTA,INBOARD SIDE |
2 | ||
| 90520-26004 |
GX71..EFI,TWC ID=26.1,OD=31.7,T=1.5,NTN |
4 | ||
| 42343 - COVER, OUTBOARD JOINT END | ||||
| 42343-22010 |
GX71..EFI,TWC NTN |
2 | ||
| 42343-22010 |
GX71,MX71 NTN |
2 | ||
| 42343-14010 |
GX71..4FC..TWC TOYOTA |
2 | ||
| 42344 - COVER, REAR AXLE INBOARD JOINT END | ||||
| 42344-22010 |
GX71..EFI,TWC NTN |
2 | ||
| 42344-14010 |
GX71..4FC..TWC TOYOTA |
2 | ||
| 42344-22010 |
GX71,MX71 NTN |
2 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-22010 |
GX71..EFI,TWC NTN |
4 | ||
| 42345-14010 |
GX71..4FC..TWC TOYOTA |
4 | ||
| 42345-22010 |
GX71,MX71 NTN |
4 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-22010 |
GX71..EFI,TWC NTN |
4 | ||
| 42345-14010 |
GX71..4FC..TWC TOYOTA |
4 | ||
| 42345-22010 |
GX71,MX71 NTN |
4 | ||
| 42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42346-22010 |
GX71..EFI,TWC NTN |
2 | ||
| 42345-14020 |
GX71..4FC..TWC |
4 | ||
| 42346-22010 |
GX71,MX71 NTN |
2 | ||
| 42347 - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42347-22010 |
GX71,MX71 NTN |
2 | ||
| 42347-22010 |
GX71..EFI,TWC NTN |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-22010 |
GX71,MX71 NTN |
2 | ||
| 42350-22030 |
GX71..EFI,TWC NTN |
2 | ||
| 42350-14010 |
GX71..4FC..TWC TOYOTA |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-22010 |
GX71,MX71 NTN |
2 | ||
| 42350-22030 |
GX71..EFI,TWC NTN |
2 | ||
| 42350-14010 |
GX71..4FC..TWC TOYOTA |
2 | ||
| 42350A - RING, HOLE SNAP | ||||
| 90521-79001 |
GX71..EFI,TWC NTN |
2 | ||
| 90521-79001 |
GX71,MX71 NTN |
2 | ||
| 42360 - JOINT ASSY, REAR DRIVE SHAFT INBOARD | ||||
| 42350-30010 |
GX71..4FC..TWC TOYOTA |
2 | ||
| 42360-22010 |
GX71,MX71..SDX,SLU NTN |
2 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||
