GX71-YEPGF (1984)

Toyota Cresta

Production Aug 1984 - Aug 1988
Engine 1GGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )1GG#

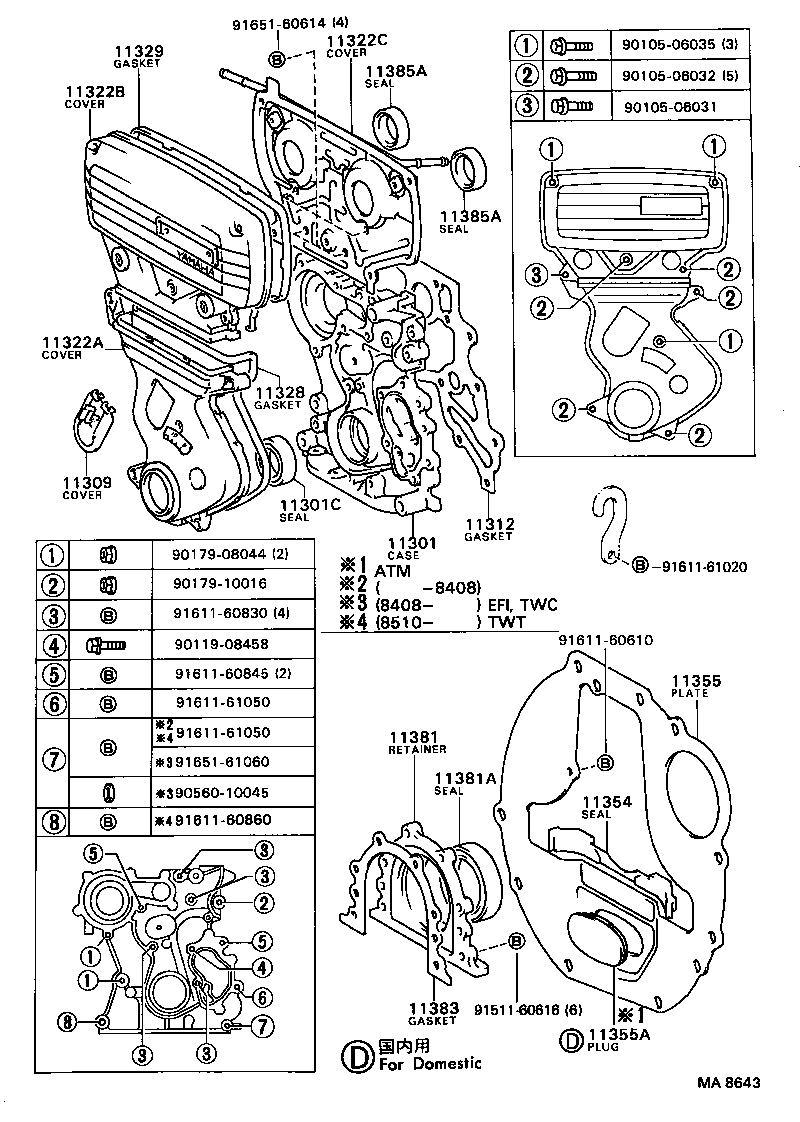

Click highlighted areas on diagram

diagram 11301 11301C 11309 11312 11322A 11322B 11322C 11328 11329 11354 11355 11355A 11381 11381A 11383 11385A 11385A 9010506031 9010506032 9010506035 9011908458 9017908044 9017910016 9056010045 9151160616 9161160610 9161160830 9161160845 9161160860 9161161020 9161161050 9161161050 9165160614 9165161060
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11311-88300

1GGEU..GX71

 1
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-45003

1GEU,1GG#..GX71

 1
11309 - COVER SUB-ASSY, TIMING BELT, NO.4
11325-88300

1GG#..GX71

 1
11312 - GASKET, FRONT END PLATE
11312-70011

1G#..GX71

 1
11312-70012

1GEU,1GG#..GX71

 1
11322A - COVER, TIMING BELT, NO.1
11321-88300

1GG#..GX71

 1
11322B - COVER, TIMING BELT, NO.2
11322-88300

1GGEU..GX71

 1
11322C - COVER, TIMING BELT, NO.3
11323-88300

1GG#..GX71

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-88300

1GG#..GX71

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-88300

1GG#..GX71

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-70010

1GEU,1GG#..GX71

 1
11355 - PLATE, REAR END
11355-70020

1GEU,1GG#..GX71..4FC

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01307

1GEU,1GG#..GX71..4FC

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-70010

1GEU,1GG#..GX71

 1
11381A - SEAL, ENGINE REAR OIL
90311-75113

1GEU,1GG#..GX71

 1
90311-75004

1GEU,1GG#..GX71

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-70010

1GEU,1GGEU..GX71

 1
11383-88340

1GGEU..GX71

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-35008

1GG#..GX71

 2
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-35008

1GG#..GX71

 2
Common parts
90105-06031
90105-06032
90105-06035
90119-08458
90179-08044
90179-10016
90560-10045
91511-60616
91611-60610
91611-60830
91611-60845
91611-60860
91611-61020
91611-61050
91651-60614
91651-61060
