GX71-YEPGE (1984)
Toyota Cresta
Production
Aug 1984
-
Aug 1988
Engine
1GEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

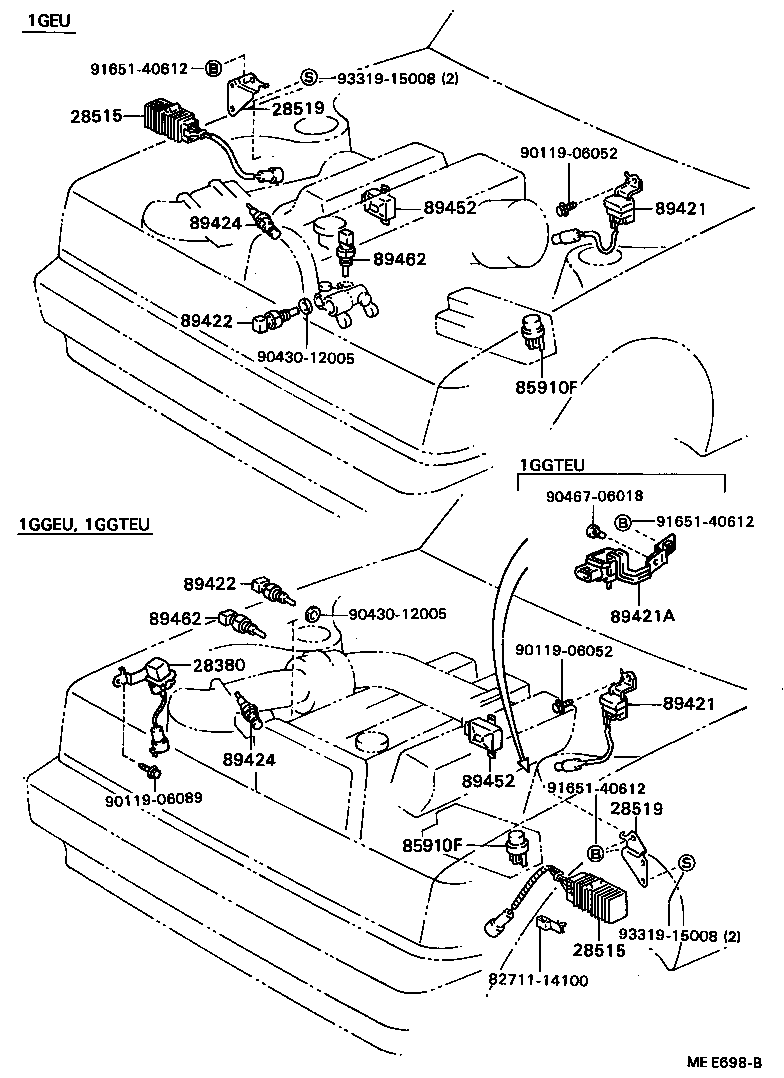

ILLUST NO. 1 OF 2(8408- )GX71
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-70020 |
1GEU..GX71 |
1 | ||
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-70020 |
1GEU..GX71 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-22070 |
1GEU..GX71 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-22070 |
1GEU..GX71 |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
GX71,MX71 |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
GX71,MX71 |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-22020 |
GX71..EFI,TWC |
1 | ||
| 89420-22030 |
GX71..EFI,TWC |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-22020 |
GX71..EFI,TWC |
1 | ||
| 89420-22030 |
GX71..EFI,TWC |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
GX71,MX71 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
GX71,MX71 |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-28010 |
GX71..EFI,TWC |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-28010 |
GX71..EFI,TWC |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-28010 |
GX71 |
1 | ||
| 89452-28010 |
GX71..EFI |
1 | ||
| 89452-28040 |
GX71..EFI |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-28010 |
GX71 |
1 | ||
| 89452-28010 |
GX71..EFI |
1 | ||
| 89452-28040 |
GX71..EFI |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-40010 |
GX71 |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-40010 |
GX71 |
1 | ||
| Common parts | ||||
| 82711-14100 | ||||
| 90119-06052 | ||||
| 90119-06089 | ||||
| 90430-12005 | ||||
| 90467-06018 | ||||
| 91651-40612 | ||||
| 93319-15008 | ||||

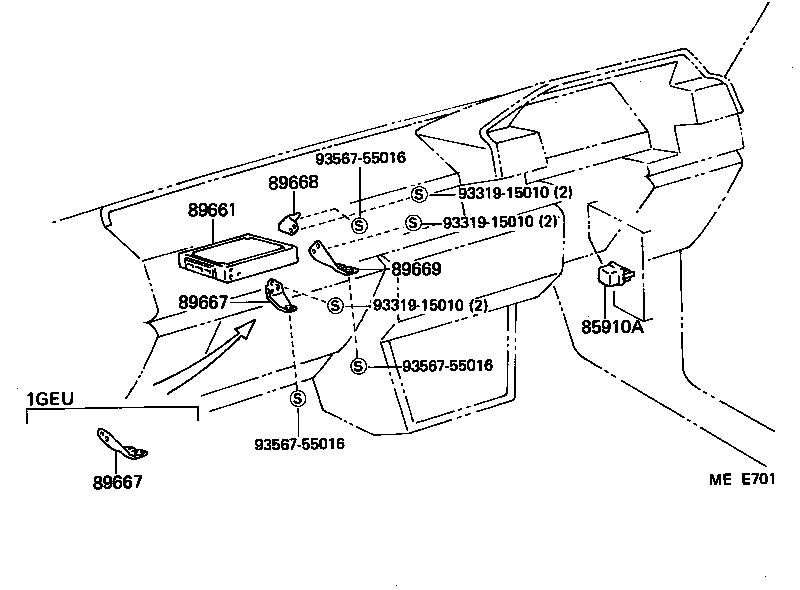

ILLUST NO. 2 OF 2(8408- )GX71,MX71
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
GX71,MX71 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-22120 |
GX71..EFI DENSO |
1 | ||
| 89661-22130 |
GX71..EFI TEN |
1 | ||
| 89661-22132 |
GX71..EFI TEN |
1 | ||
| 89661-22131 |
GX71..EFI TEN |
1 | ||
| 89661-30211 |
GX71..EFI TEN |
1 | ||
| 89661-22121 |
GX71..EFI DENSO |
1 | ||
| 89661-30200 |
GX71..EFI DENSO |
1 | ||
| 89661-30202 |
GX71..EFI DENSO |
1 | ||
| 89661-30201 |
GX71..EFI DENSO |
1 | ||
| 89661-30212 |
GX71..EFI TEN |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-22080 |
GX71..EFI |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-22080 |
GX71..EFI |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-22090 |
GX71,MX71 |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-22100 |
GX71,MX71 |
1 | ||
| Common parts | ||||
| 93319-15010 | ||||
| 93567-55016 | ||||
