GX71-YEMME (1984)

Toyota Cresta

Production Aug 1984 - Aug 1988
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

Click highlighted areas on diagram

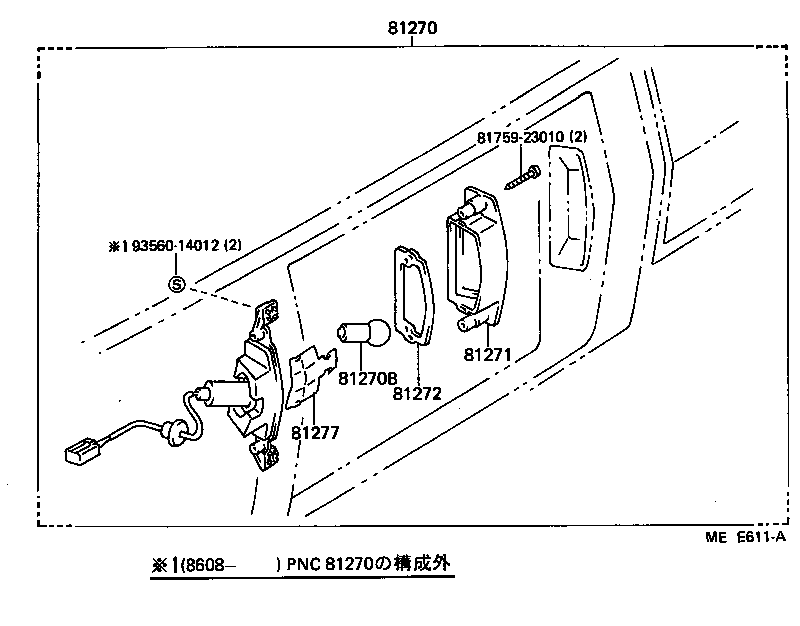

diagram 81270 81270B 81271 81272 81277 8175923010 9356014012
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-22180

GX71,LX70,SX70

RH

 1
81690-22060

GX71,LX70,SX70

LH

 1
81270-80026

GX71,LX70,MX71,SX70

RH

 1
81690-29195

GX71,LX70,MX71,SX70

LH

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

GX71,LX70,MX71,SX70

12V 10W,12V 10W

 2
90981-12013

GX71,LX70,MX71,SX70

12V 10W,12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-16150

GX71,LX70,MX71,SX70

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-20210

GX71,LX70,MX71,SX70

 2
81277 - SPACER, LICENSE PLATE LAMP RIM AND LENS
81277-20210

GX71,LX70,MX71,SX70

 2
Common parts
81759-23010
93560-14012
