GX71-YEMME (1984)
Toyota Cresta
ILLUST NO. 1 OF 3(8408- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-2215003 |
GX71,LX70,SX70..5F..(GT,SCM,SDX,SLU) GRAY,COOL GRAY,TRIM1# |
1 | ||
| 46201-2215005 |
GX71,LX70,SX70..5F..(GT,SCM,SDX,SLU) BEIGE,BEIGE,TRIM4# |
1 | ||
| 46201-2215004 |
GX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD) BLUE,DARK BLUE,TRIM8# |
1 | ||
| 46201-2215012 |
GX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD) MAROON,MAROON,TRIM3# |
1 | ||
| 46201-2215002 |
GX71,LX70,SX70..5F..(GT,SCM,SDX,SLU) MAROON,MAROON,TRIM3# |
1 | ||
| 46201-2215104 |
GX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD) BLUE,DARK BLUE,TRIM8# |
1 | ||
| 46201-2215112 |
GX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD) MAROON,MAROON,TRIM3# |
1 | ||
| 46201-2215015 |
GX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 46201-2215115 |
GX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1002032 |
GX71,LX70,SX70..5F MAROON,MAROON,TRIM3# |
1 | ||
| 46217-1002035 |
GX71,LX70,SX70..5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 46217-2002042 |
GX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD) MAROON,MAROON,TRIM3# |
1 | ||
| 46217-2002023 |
GX71,LX70,SX70..5F GRAY,COOL GRAY,TRIM1# |
1 | ||
| 46217-12020E0 |
GX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 46217-2002005 |
GX71,LX70,SX70..5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 46217-2002054 |
GX71,LX70,SX70..5F..(KYO,SCM,SDX,SLU) BLUE,DARK BLUE,TRIM8# |
1 | ||
| 46217-1002053 |
GX71,LX70,SX70..5F GRAY,COOL GRAY,TRIM1# |
1 | ||
| 46217-2002012 |
GX71,LX70,SX70..5F MAROON,MAROON,TRIM3# |
1 | ||
| 46217-12020J0 |
GX71,LX70,SX70..5F..(KYO,SCM,SDX,SLU) BLUE,DARK BLUE,TRIM8# |
1 | ||
| 46217-12020D0 |
GX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD) MAROON,MAROON,TRIM3# |
1 | ||
| 46217-2002015 |
GX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD) BEIGE,BEIGE,TRIM4# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10745 |
GX71,LX70,SX70..5F |
1 | ||
| 90501-10085 |
GX71,LX70,SX70..5F |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-22060 |
GX71,LX70,SX70..5F |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-22020 |
GX71,LX70,SX70..5F |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-22060 |
GX71,LX70,SX70..5F |
1 | ||
| 46361A - PIN, PARKING BRAKE PULL ROD | ||||
| 90240-08037 |
GX71,LX70,SX70..5F |
1 | ||
| 46361C - GROMMET(FOR PARKING BRAKE PULL ROD) | ||||
| 90480-01292 |
GX71,LX70,SX70..5F |
1 | ||
| Common parts | ||||
| 90119-08309 | ||||
| 90468-14004 | ||||

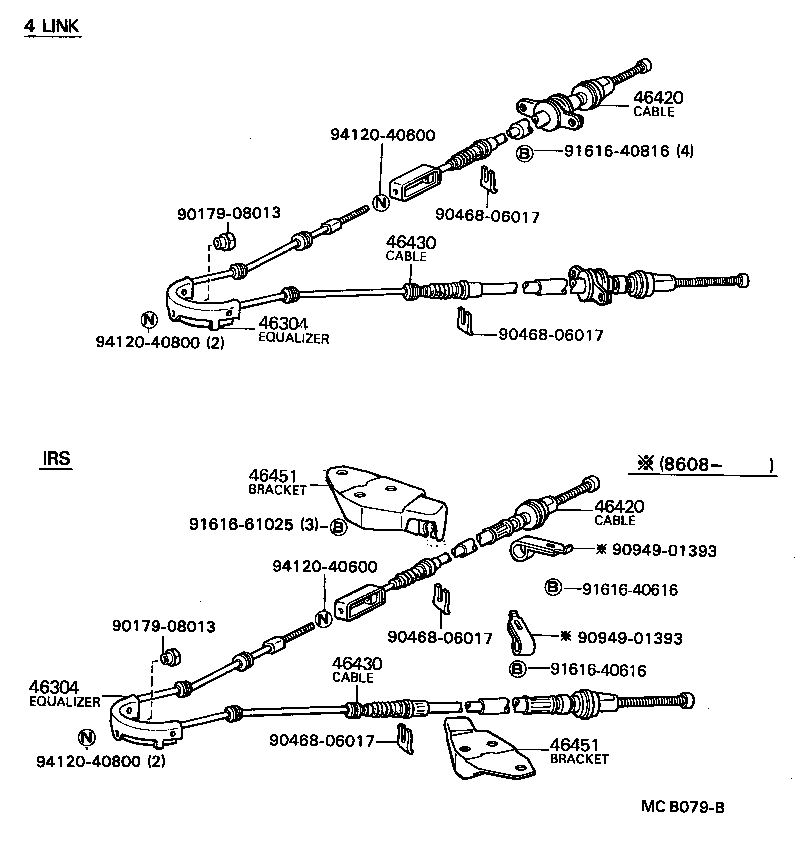

ILLUST NO. 2 OF 3(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-14010 |
GX71,LX70,MX71,SX70 |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-14010 |
GX71,LX70,MX71,SX70 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-22271 |
GX71..SDX |
1 | ||
| 46420-22270 |
GX71..SDX |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-22271 |
GX71..SDX |
1 | ||
| 46420-22270 |
GX71..SDX |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-22190 |
GX71..SDX |
1 | ||
| 46430-22191 |
GX71..SDX |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-22190 |
GX71..SDX |
1 | ||
| 46430-22191 |
GX71..SDX |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46452-22030 |
GX71,MX71 LH |
1 | ||
| 46451-22030 |
GX71,MX71 RH |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46452-22030 |
GX71,MX71 LH |
1 | ||
| 46451-22030 |
GX71,MX71 RH |
1 | ||
| Common parts | ||||
| 90179-08013 | ||||
| 90468-06017 | ||||
| 90949-01393 | ||||
| 91616-40616 | ||||
| 91616-40816 | ||||
| 91616-61025 | ||||
| 94120-40600 | ||||
| 94120-40800 | ||||
