GX71-YEMGF (1984)

Toyota Cresta

Production Aug 1984 - Aug 1988
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

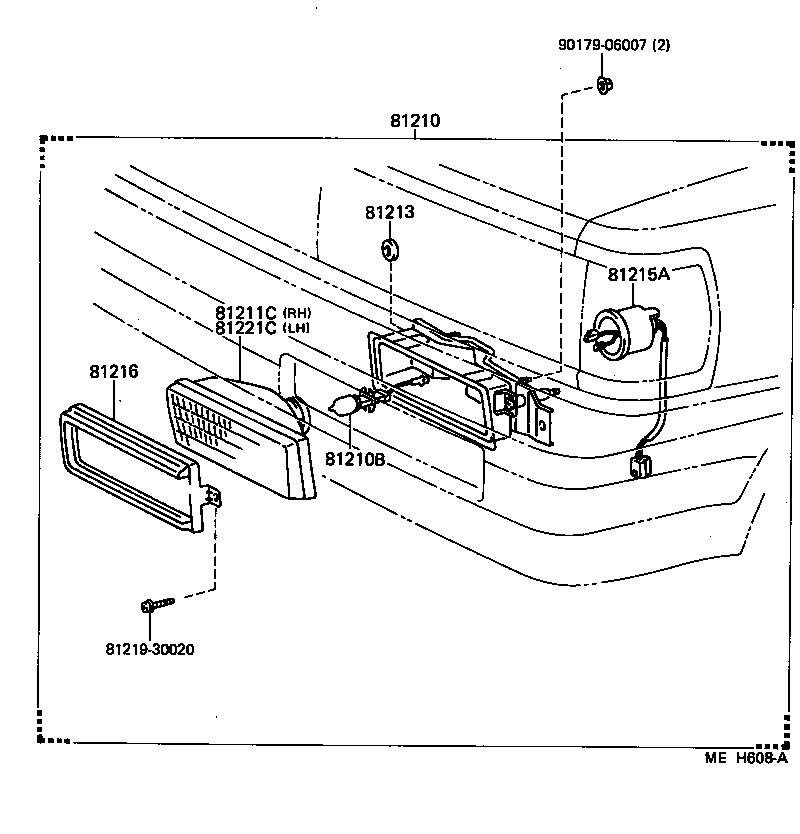

Click highlighted areas on diagram

diagram 81210 81210B 81211C 81213 81215A 81216 8121930020 81221C 9017906007
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81220-22020

GX71,LX70,SX70

LH

 1
81210-22030

GX71,LX70,SX70

RH

 1
81210B - BULB, FOG LAMP
90981-13018

GX71,LX70,SX70

12V 55W,ﾊﾛｹﾞﾝ,12V 55W

 2
81211C - LAMP UNIT, FOG LAMP, RH
81212-22030

GX71,LX70,SX70

 1
81213 - SPACER, FOG LAMP
81218-30020

GX71,LX70,SX70

 2
81215A - SOCKET & WIRE, FOG LAMP
81215-22030

GX71,LX70,SX70

 2
81216 - RIM, FOG LAMP, NO.1
81226-22020

GX71,LX70,SX70

LH

 1
81216-22030

GX71,LX70,SX70

RH

 1
81221C - LAMP UNIT, FOG LAMP, LH
81222-22020

GX71,LX70,SX70

 1
Common parts
81219-30020
90179-06007
