GX71-YEMGF (1984)
Toyota Cresta

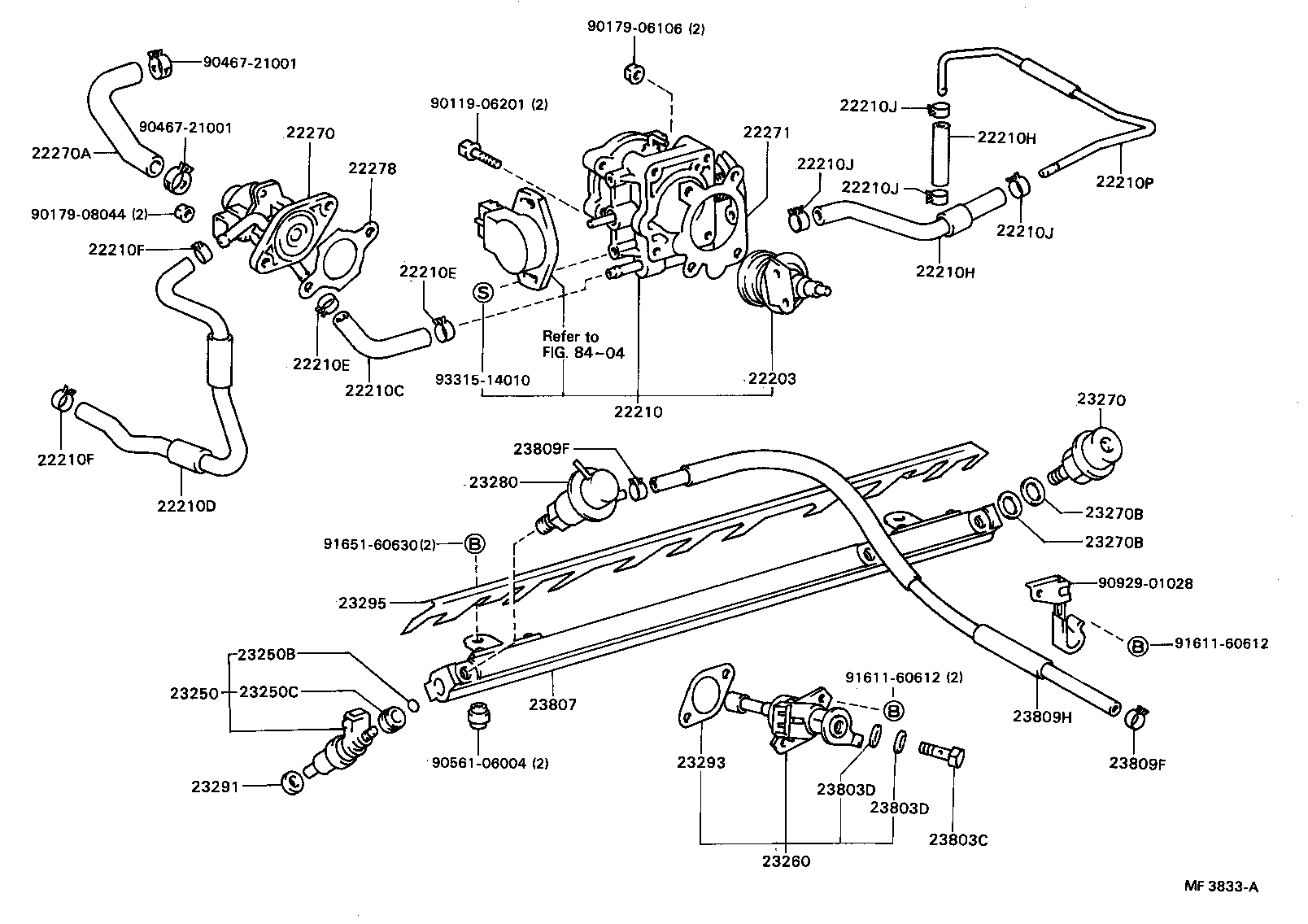

ILLUST NO. 1 OF 3(8408-8608)1GGEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22203-70020 |
1GGEU..GX71 |
1 | ||
| 22203-70050 |
1GGEU..GX71 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-70110 |
1GGEU..GX71..5F |
1 | ||
| 22210-70170 |
1GGEU..GX71..5F |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16267-88302 |
1GGEU..GX71 |
1 | ||
| 16267-88301 |
1GGEU..GX71 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-88301 |
1GGEU..GX71 |
1 | ||
| 16264-88302 |
1GGEU..GX71 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
1GGEU..GX71 |
4 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
1GGEU..GX71 |
4 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
1GGEU..GX71 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
1GGEU..GX71 |
2 | ||
| 22210H - HOSE, WATER BY-PASS, NO.3 | ||||
| 16281-88301 |
1GGEU..GX71 THROTTLE BODY SIDE |
1 | ||
| 90445-15009 |
1GGEU..GX71 PIPE SIDE |
2 | ||
| 22210H - HOSE, WATER BY-PASS, NO.3 | ||||
| 16281-88301 |
1GGEU..GX71 THROTTLE BODY SIDE |
1 | ||
| 90445-15009 |
1GGEU..GX71 PIPE SIDE |
2 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
1GGEU..GX71 |
4 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
1GGEU..GX71 |
4 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
1GGEU..GX71 |
4 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
1GGEU..GX71 |
4 | ||
| 22210P - PIPE, WATER BY-PASS | ||||
| 16279-88305 |
1GGEU..GX71 |
1 | ||
| 16279-88306 |
1GGEU..GX71 |
1 | ||
| 16279-88303 |
1GGEU..GX71 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-70090 |
1GGEU..GX71 |
1 | ||
| 22270-70030 |
1GGEU..GX71 |
1 | ||
| 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 17344-88300 |
1GGEU..GX71 |
1 | ||
| 17344-88301 |
1GGEU..GX71 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-88301 |
1GGEU..GX71 |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-88300 |
1GGEU..GX71 |
1 | ||
| 22278-88301 |
1GGEU..GX71 |
1 | ||
| 22278-88340 |
1GGEU..GX71 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-70020 |
1GGEU..GX71 |
6 | ||
| 23209-70050 |
1GGEU..GX71 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
1GEU,1GG#..GX71 |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1GEU,1GG#..GX71 |
6 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-79035 |
1GGEU..GX71 |
1 | ||
| 23260-79125 |
1GGEU..GX71 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-52011 |
1GGEU..GX71 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23232-28010 |
1GG#..GX71 DAMPER SIDE |
1 | ||
| 90430-12005 |
1GG#..GX71 DELIVERY PIPE SIDE |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23232-28010 |
1GG#..GX71 DAMPER SIDE |
1 | ||
| 90430-12005 |
1GG#..GX71 DELIVERY PIPE SIDE |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-70030 |
1GGEU..GX71 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
1GEU,1GG#..GX71 |
6 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-88280 |
1GGEU..GX71 |
1 | ||
| 23293-74010 |
1GGEU..GX71 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08003 |
1GEU,1GG#..GX71 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GEU,1GG#..GX71 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GEU,1GG#..GX71 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-88300 |
1GG#..GX71 |
1 | ||
| 23807-88301 |
1GGEU..GX71 |
1 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
1GG#..GX71 |
2 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
1GG#..GX71 |
2 | ||
| 23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR | ||||
| 90447-15016 |
1GGEU..GX71 |
1 | ||
| 90447-15003 |
1GGEU..GX71 |
1 | ||
| Common parts | ||||
| 90116-06061 | ||||
| 90119-06201 | ||||
| 90179-06106 | ||||
| 90561-06004 | ||||
| 90929-01028 | ||||
| 90929-01137 | ||||
| 91611-60625 | ||||
| 91651-60614 | ||||
| 91651-60630 | ||||
| 92132-60620 | ||||
| 93315-14014 | ||||
| 93381-16012 | ||||
| Linked diagrams | ||||
| 8401 | ||||

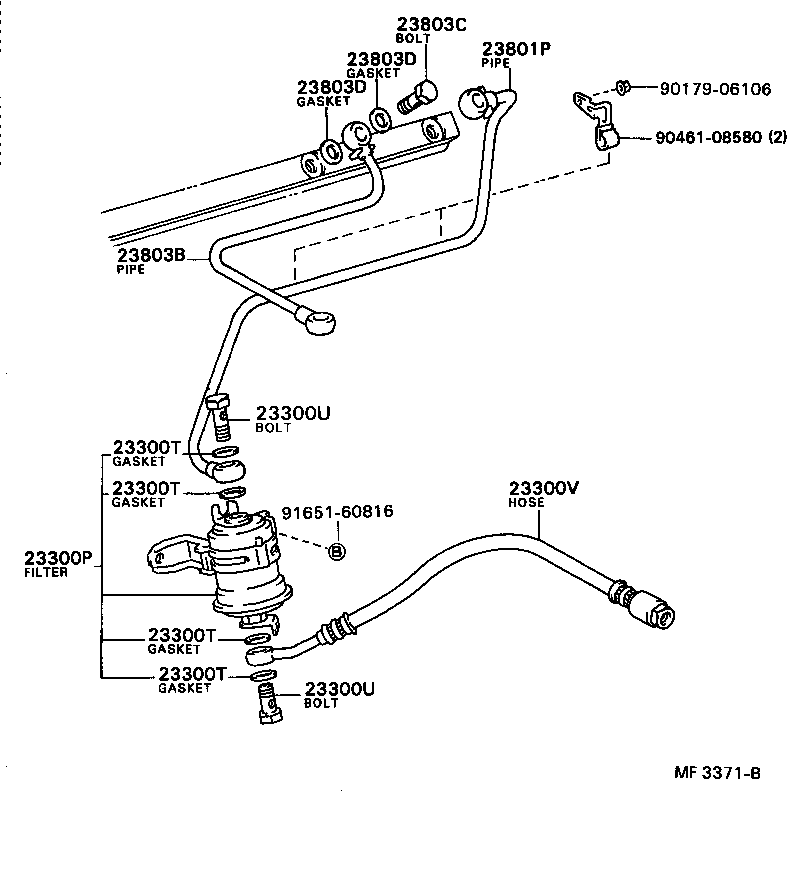

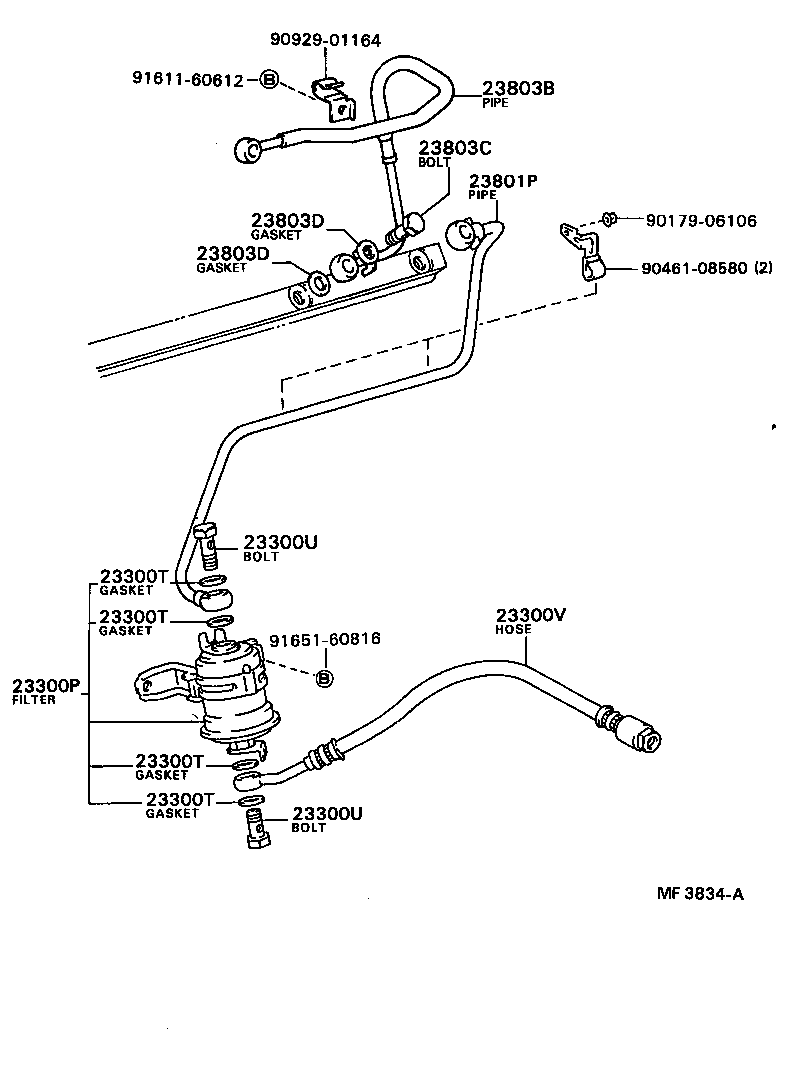

ILLUST NO. 2 OF 3(8408-8608)1GGEU ; (8510- )1GGTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79145 |
1GGEU..GX71 |
1 | ||
| 23300-79035 |
1GGEU..GX71 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GEU,1GG#..GX71 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GEU,1GG#..GX71 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GEU,1GG#..GX71 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GEU,1GG#..GX71 |
4 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1GEU,1GG#..GX71 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1GEU,1GG#..GX71 |
2 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 90923-01328 |
1GG#..GX71 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-88302 |
1GGEU..GX71 |
1 | ||
| 23801-88301 |
1GGEU..GX71 |
1 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-88300 |
1GGEU..GX71 |
1 | ||
| 23803-88301 |
1GGEU..GX71 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08003 |
1GEU,1GG#..GX71 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GEU,1GG#..GX71 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GEU,1GG#..GX71 |
4 | ||
| Common parts | ||||
| 90179-06106 | ||||
| 90461-08580 | ||||
| 91651-60816 | ||||

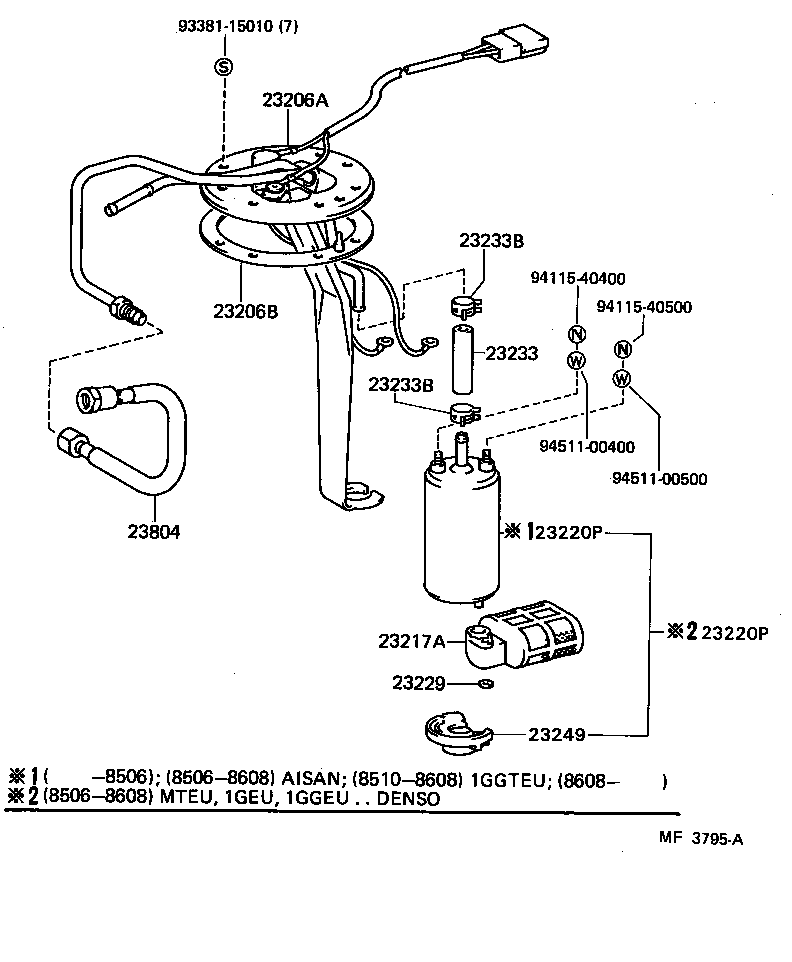

ILLUST NO. 3 OF 3(8408- )1GEU,1GG#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-70100 |
1GEU,1GG#..GX71 |
1 | ||
| 23206-70100 |
1GEU,1GG#..GX71 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
1GEU,1GG#..GX71 |
1 | ||
| 77169-14010 |
1GEU,1GG#..GX71 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16042 |
1G#..GX71 AISAN |
1 | ||
| 23217-16042 |
1G#..GX71 AISAN |
1 | ||
| 23217-16030 |
1GEU,1GG#..GX71 DENSO |
1 | ||
| 23217-16030 |
1GEU,1GG#..GX71 DENSO |
1 | ||
| 23217-16043 |
1GEU,1GG#..GX71 AISAN |
1 | ||
| 23217-16043 |
1GEU,1GG#..GX71 AISAN |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16070 |
1G#..GX71 DENSO,MARK 195130-002* |
1 | ||
| 23220-16070 |
1G#..GX71 DENSO,MARK 195130-002* |
1 | ||
| 23220-16082 |
1GEU,1GGEU..GX71 AISAN |
1 | ||
| 23220-16082 |
1GEU,1GGEU..GX71 AISAN |
1 | ||
| 23220-19015 |
1GEU,1GGEU..GX71 DENSO,MARK 195130-009* |
1 | ||
| 23220-19015 |
1GEU,1GGEU..GX71 DENSO,MARK 195130-009* |
1 | ||
| 23220-16080 |
1G#..GX71 AISAN |
1 | ||
| 23220-16080 |
1G#..GX71 AISAN |
1 | ||
| 23220-16083 |
1GEU,1GGEU..GX71 AISAN |
1 | ||
| 23220-16083 |
1GEU,1GGEU..GX71 AISAN |
1 | ||
| 23220-16084 |
1GEU,1GGEU..GX71 AISAN |
1 | ||
| 23220-16084 |
1GEU,1GGEU..GX71 AISAN |
1 | ||
| 23220-16190 |
1GEU,1GGEU..GX71 DENSO |
1 | ||
| 23220-16190 |
1GEU,1GGEU..GX71 DENSO |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16070 |
1G#..GX71 DENSO,MARK 195130-002* |
1 | ||
| 23220-16070 |
1G#..GX71 DENSO,MARK 195130-002* |
1 | ||
| 23220-16082 |
1GEU,1GGEU..GX71 AISAN |
1 | ||
| 23220-16082 |
1GEU,1GGEU..GX71 AISAN |
1 | ||
| 23220-19015 |
1GEU,1GGEU..GX71 DENSO,MARK 195130-009* |
1 | ||
| 23220-19015 |
1GEU,1GGEU..GX71 DENSO,MARK 195130-009* |
1 | ||
| 23220-16080 |
1G#..GX71 AISAN |
1 | ||
| 23220-16080 |
1G#..GX71 AISAN |
1 | ||
| 23220-16083 |
1GEU,1GGEU..GX71 AISAN |
1 | ||
| 23220-16083 |
1GEU,1GGEU..GX71 AISAN |
1 | ||
| 23220-16084 |
1GEU,1GGEU..GX71 AISAN |
1 | ||
| 23220-16084 |
1GEU,1GGEU..GX71 AISAN |
1 | ||
| 23220-16190 |
1GEU,1GGEU..GX71 DENSO |
1 | ||
| 23220-16190 |
1GEU,1GGEU..GX71 DENSO |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1GEU,1GG#..GX71 |
1 | ||
| 23229-16010 |
1GEU,1GG#..GX71 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
1GEU,1GG#..GX71 |
1 | ||
| 23239-16010 |
1GEU,1GG#..GX71 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
1GEU,1GG#..GX71 |
2 | ||
| 90467-13001 |
1GEU,1GG#..GX71 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
1GEU,1GG#..GX71 |
2 | ||
| 90467-13001 |
1GEU,1GG#..GX71 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-16010 |
1G#..GX71 AISAN |
1 | ||
| 23249-16010 |
1G#..GX71 AISAN |
1 | ||
| 23249-16010 |
1G#..GX71 |
1 | ||
| 23249-16010 |
1G#..GX71 |
1 | ||
| 23249-43080 |
1G#..GX71 DENSO |
1 | ||
| 23249-43080 |
1G#..GX71 DENSO |
1 | ||
| 23249-43080 |
1GEU,1GG#..GX71 |
1 | ||
| 23249-43080 |
1GEU,1GG#..GX71 |
1 | ||
| 23804 - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23091-70010 |
1GEU,1GG#..GX71 |
1 | ||
| 23091-70010 |
1GEU,1GG#..GX71 |
1 | ||
| Common parts | ||||
| 93381-15010 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
ILLUST NO. 1 OF 3(8608- )1GGEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22203-70020 |
1GGEU..GX71 |
1 | ||
| 22203-70050 |
1GGEU..GX71 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-70110 |
1GGEU..GX71..5F |
1 | ||
| 22210-70170 |
1GGEU..GX71..5F |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16267-88302 |
1GGEU..GX71 |
1 | ||
| 16267-88301 |
1GGEU..GX71 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-88301 |
1GGEU..GX71 |
1 | ||
| 16264-88302 |
1GGEU..GX71 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
1GGEU..GX71 |
4 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
1GGEU..GX71 |
4 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
1GGEU..GX71 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
1GGEU..GX71 |
2 | ||
| 22210H - HOSE, WATER BY-PASS, NO.3 | ||||
| 16281-88301 |
1GGEU..GX71 THROTTLE BODY SIDE |
1 | ||
| 90445-15009 |
1GGEU..GX71 PIPE SIDE |
2 | ||
| 22210H - HOSE, WATER BY-PASS, NO.3 | ||||
| 16281-88301 |
1GGEU..GX71 THROTTLE BODY SIDE |
1 | ||
| 90445-15009 |
1GGEU..GX71 PIPE SIDE |
2 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
1GGEU..GX71 |
4 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
1GGEU..GX71 |
4 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
1GGEU..GX71 |
4 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
1GGEU..GX71 |
4 | ||
| 22210P - PIPE, WATER BY-PASS | ||||
| 16279-88305 |
1GGEU..GX71 |
1 | ||
| 16279-88306 |
1GGEU..GX71 |
1 | ||
| 16279-88303 |
1GGEU..GX71 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-70090 |
1GGEU..GX71 |
1 | ||
| 22270-70030 |
1GGEU..GX71 |
1 | ||
| 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 17344-88300 |
1GGEU..GX71 |
1 | ||
| 17344-88301 |
1GGEU..GX71 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-88301 |
1GGEU..GX71 |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-88300 |
1GGEU..GX71 |
1 | ||
| 22278-88301 |
1GGEU..GX71 |
1 | ||
| 22278-88340 |
1GGEU..GX71 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-70020 |
1GGEU..GX71 |
6 | ||
| 23209-70050 |
1GGEU..GX71 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
1GEU,1GG#..GX71 |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1GEU,1GG#..GX71 |
6 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-79035 |
1GGEU..GX71 |
1 | ||
| 23260-79125 |
1GGEU..GX71 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-52011 |
1GGEU..GX71 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23232-28010 |
1GG#..GX71 DAMPER SIDE |
1 | ||
| 90430-12005 |
1GG#..GX71 DELIVERY PIPE SIDE |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23232-28010 |
1GG#..GX71 DAMPER SIDE |
1 | ||
| 90430-12005 |
1GG#..GX71 DELIVERY PIPE SIDE |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-70030 |
1GGEU..GX71 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
1GEU,1GG#..GX71 |
6 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-88280 |
1GGEU..GX71 |
1 | ||
| 23293-74010 |
1GGEU..GX71 |
1 | ||
| 23295 - HOLDER, INJECTOR, NO.1 | ||||
| 23295-70011 |
1GGEU..GX71 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08003 |
1GEU,1GG#..GX71 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GEU,1GG#..GX71 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GEU,1GG#..GX71 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-88300 |
1GG#..GX71 |
1 | ||
| 23807-88301 |
1GGEU..GX71 |
1 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
1GG#..GX71 |
2 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
1GG#..GX71 |
2 | ||
| 23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR | ||||
| 90447-15016 |
1GGEU..GX71 |
1 | ||
| 90447-15003 |
1GGEU..GX71 |
1 | ||
| Common parts | ||||
| 90119-06201 | ||||
| 90179-06106 | ||||
| 90179-08044 | ||||
| 90467-21001 | ||||
| 90561-06004 | ||||
| 90929-01028 | ||||
| 91611-60612 | ||||
| 91651-60630 | ||||
| 93315-14010 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 2 OF 3(8608- )1GGEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79145 |
1GGEU..GX71 |
1 | ||
| 23300-79035 |
1GGEU..GX71 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GEU,1GG#..GX71 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GEU,1GG#..GX71 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GEU,1GG#..GX71 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GEU,1GG#..GX71 |
4 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1GEU,1GG#..GX71 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1GEU,1GG#..GX71 |
2 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 90923-01328 |
1GG#..GX71 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-88302 |
1GGEU..GX71 |
1 | ||
| 23801-88301 |
1GGEU..GX71 |
1 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-88300 |
1GGEU..GX71 |
1 | ||
| 23803-88301 |
1GGEU..GX71 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08003 |
1GEU,1GG#..GX71 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GEU,1GG#..GX71 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GEU,1GG#..GX71 |
4 | ||
| Common parts | ||||
| 90179-06106 | ||||
| 90461-08580 | ||||
| 90929-01164 | ||||
| 91611-60612 | ||||
| 91651-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
