GX71-YEMGE (1984)
Toyota Cresta

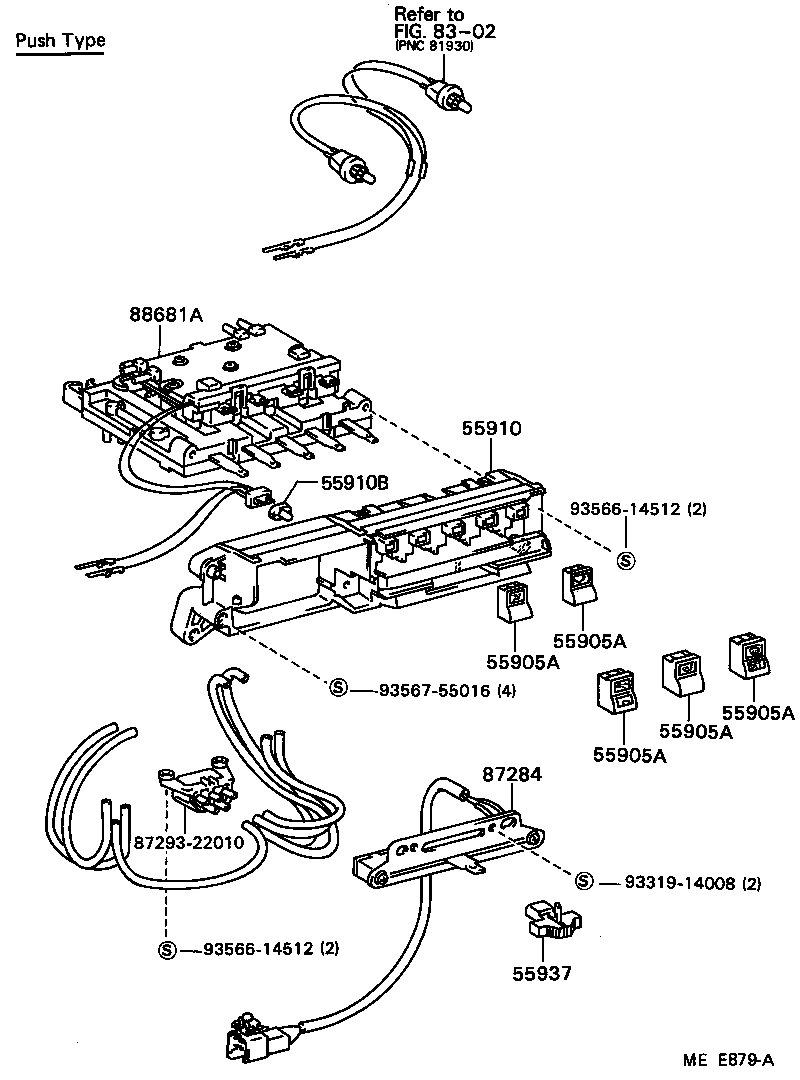

ILLUST NO. 1 OF 3(8408-8608)GT,SLU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22100 |
GX71,MX71..GT,SLU AUTO |
1 | ||
| 55905-22111 |
GX71..GT,SLU BI-LEVEL |
1 | ||
| 55905-22110 |
GX71,MX71..GT,SLU FACE |
1 | ||
| 55905-22131 |
GX71..GT,SLU HEAT & DEF |
1 | ||
| 55905-22130 |
GX71,MX71..GT,SLU FOOT |
1 | ||
| 55905-22141 |
GX71..GT,SLU DEF |
1 | ||
| 55905-22101 |
GX71..GT,SLU FACE |
1 | ||
| 55905-22121 |
GX71..GT,SLU HEAT |
1 | ||
| 55905-22140 |
GX71,MX71..GT,SLU DEF |
1 | ||
| 55905-22120 |
GX71,MX71..GT,SLU BI-LEVEL |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22100 |
GX71,MX71..GT,SLU AUTO |
1 | ||
| 55905-22111 |
GX71..GT,SLU BI-LEVEL |
1 | ||
| 55905-22110 |
GX71,MX71..GT,SLU FACE |
1 | ||
| 55905-22131 |
GX71..GT,SLU HEAT & DEF |
1 | ||
| 55905-22130 |
GX71,MX71..GT,SLU FOOT |
1 | ||
| 55905-22141 |
GX71..GT,SLU DEF |
1 | ||
| 55905-22101 |
GX71..GT,SLU FACE |
1 | ||
| 55905-22121 |
GX71..GT,SLU HEAT |
1 | ||
| 55905-22140 |
GX71,MX71..GT,SLU DEF |
1 | ||
| 55905-22120 |
GX71,MX71..GT,SLU BI-LEVEL |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22100 |
GX71,MX71..GT,SLU AUTO |
1 | ||
| 55905-22111 |
GX71..GT,SLU BI-LEVEL |
1 | ||
| 55905-22110 |
GX71,MX71..GT,SLU FACE |
1 | ||
| 55905-22131 |
GX71..GT,SLU HEAT & DEF |
1 | ||
| 55905-22130 |
GX71,MX71..GT,SLU FOOT |
1 | ||
| 55905-22141 |
GX71..GT,SLU DEF |
1 | ||
| 55905-22101 |
GX71..GT,SLU FACE |
1 | ||
| 55905-22121 |
GX71..GT,SLU HEAT |
1 | ||
| 55905-22140 |
GX71,MX71..GT,SLU DEF |
1 | ||
| 55905-22120 |
GX71,MX71..GT,SLU BI-LEVEL |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22100 |
GX71,MX71..GT,SLU AUTO |
1 | ||
| 55905-22111 |
GX71..GT,SLU BI-LEVEL |
1 | ||
| 55905-22110 |
GX71,MX71..GT,SLU FACE |
1 | ||
| 55905-22131 |
GX71..GT,SLU HEAT & DEF |
1 | ||
| 55905-22130 |
GX71,MX71..GT,SLU FOOT |
1 | ||
| 55905-22141 |
GX71..GT,SLU DEF |
1 | ||
| 55905-22101 |
GX71..GT,SLU FACE |
1 | ||
| 55905-22121 |
GX71..GT,SLU HEAT |
1 | ||
| 55905-22140 |
GX71,MX71..GT,SLU DEF |
1 | ||
| 55905-22120 |
GX71,MX71..GT,SLU BI-LEVEL |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22100 |
GX71,MX71..GT,SLU AUTO |
1 | ||
| 55905-22111 |
GX71..GT,SLU BI-LEVEL |
1 | ||
| 55905-22110 |
GX71,MX71..GT,SLU FACE |
1 | ||
| 55905-22131 |
GX71..GT,SLU HEAT & DEF |
1 | ||
| 55905-22130 |
GX71,MX71..GT,SLU FOOT |
1 | ||
| 55905-22141 |
GX71..GT,SLU DEF |
1 | ||
| 55905-22101 |
GX71..GT,SLU FACE |
1 | ||
| 55905-22121 |
GX71..GT,SLU HEAT |
1 | ||
| 55905-22140 |
GX71,MX71..GT,SLU DEF |
1 | ||
| 55905-22120 |
GX71,MX71..GT,SLU BI-LEVEL |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-22280 |
GX71,MX71..GT,SLU |
1 | ||
| 55910-22390 |
GX71..GT,SLU |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 84999-22010 |
GX71,MX71..GT,SLU |
1 | ||
| 81850-14650 |
GX71..GT,SLU 12V 1.4W,GREEN BULB |
1 | ||
| 81850-22400 |
GX71..GT,SLU 12V 1.4W,WHITE BULB |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-22150 |
GX71,MX71..GT,SLU |
1 | ||
| 55905-22151 |
GX71..GT,SLU |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-22040 |
GX71,MX71..GT,SLU |
1 | ||
| 88681A - SWITCH, HEATER CONTROL VACUUM, NO.1 | ||||
| 88681-22040 |
GX71,MX71..GT,SLU |
1 | ||
| Common parts | ||||
| 87293-22010 | ||||
| 93319-14008 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
ILLUST NO. 2 OF 3(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87211A - DUCT, AIR, NO.2 | ||||
| 55088-22070 |
GX71,LX70,MX71,SX70 |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 55089-22020 |
GX71,LX70,MX71,SX70 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87202-22020 |
GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU |
1 | ||
| 87202-22021 |
GX71,LX70,SX70..GT,SCM,SDX,SLU |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87202-22020 |
GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU |
1 | ||
| 87202-22021 |
GX71,LX70,SX70..GT,SCM,SDX,SLU |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87203-22031 |
GX71,LX70,SX70..GT,SCM,SDX,SLU |
1 | ||
| 87203-22030 |
GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55085-22090 |
GX71,LX70,MX71,SX70 W/COOLER |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55084-22060 |
GX71,LX70,MX71,SX70 |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87215-22011 |
GX71,LX70,SX70..GT,SCM,SDX,SLU COLD SPEC & W/POWER SEAT |
1 | ||
| 87215-22010 |
GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU COLD SPEC |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55086-22010 |
GX71,LX70,MX71,SX70 |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55087-22080 |
GX71,LX70,MX71,SX70 |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87216-22021 |
GX71,LX70,SX70..GT,SCM,SDX,SLU COLD SPEC & W/POWER SEAT |
1 | ||
| 87216-22020 |
GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU COLD SPEC |
1 | ||
| Common parts | ||||
| 90159-60195 | ||||
| 90183-05094 | ||||
| 90480-26014 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||

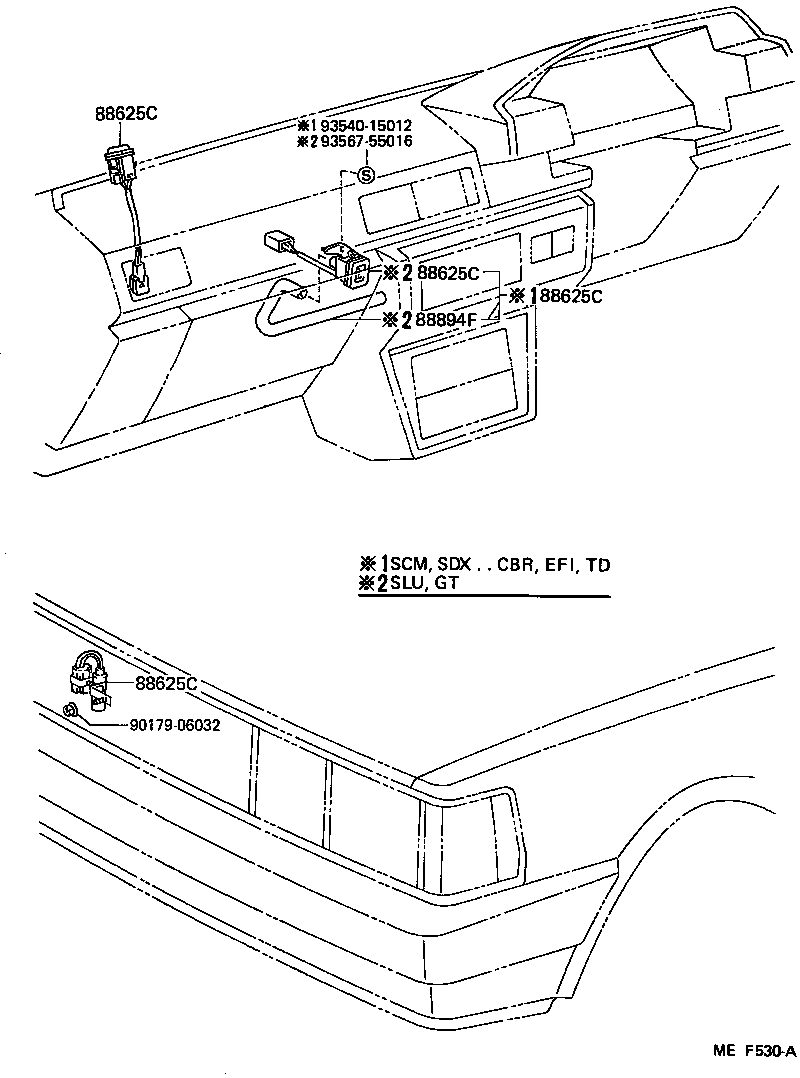

ILLUST NO. 3 OF 3(8408- )GT,SCM,SDX,SLU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22110 |
GX71,MX71,SX70..GT,SCM,SDX,SLU *IP TOP |
1 | ||
| 88625-22120 |
GX71,MX71,SX70..GT,SCM,SDX,SLU ENGINE ROOM |
1 | ||
| 88625-22100 |
GX71,MX71..GT,SLU *IP INNER |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22110 |
GX71,MX71,SX70..GT,SCM,SDX,SLU *IP TOP |
1 | ||
| 88625-22120 |
GX71,MX71,SX70..GT,SCM,SDX,SLU ENGINE ROOM |
1 | ||
| 88625-22100 |
GX71,MX71..GT,SLU *IP INNER |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22110 |
GX71,MX71,SX70..GT,SCM,SDX,SLU *IP TOP |
1 | ||
| 88625-22120 |
GX71,MX71,SX70..GT,SCM,SDX,SLU ENGINE ROOM |
1 | ||
| 88625-22100 |
GX71,MX71..GT,SLU *IP INNER |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22110 |
GX71,MX71,SX70..GT,SCM,SDX,SLU *IP TOP |
1 | ||
| 88625-22120 |
GX71,MX71,SX70..GT,SCM,SDX,SLU ENGINE ROOM |
1 | ||
| 88625-22100 |
GX71,MX71..GT,SLU *IP INNER |
1 | ||
| 88894F - HOSE, AIR | ||||
| 88669-22020 |
GX71,MX71..GT,SLU |
1 | ||
| Common parts | ||||
| 90179-06032 | ||||
| 93540-15012 | ||||
| 93567-55016 | ||||

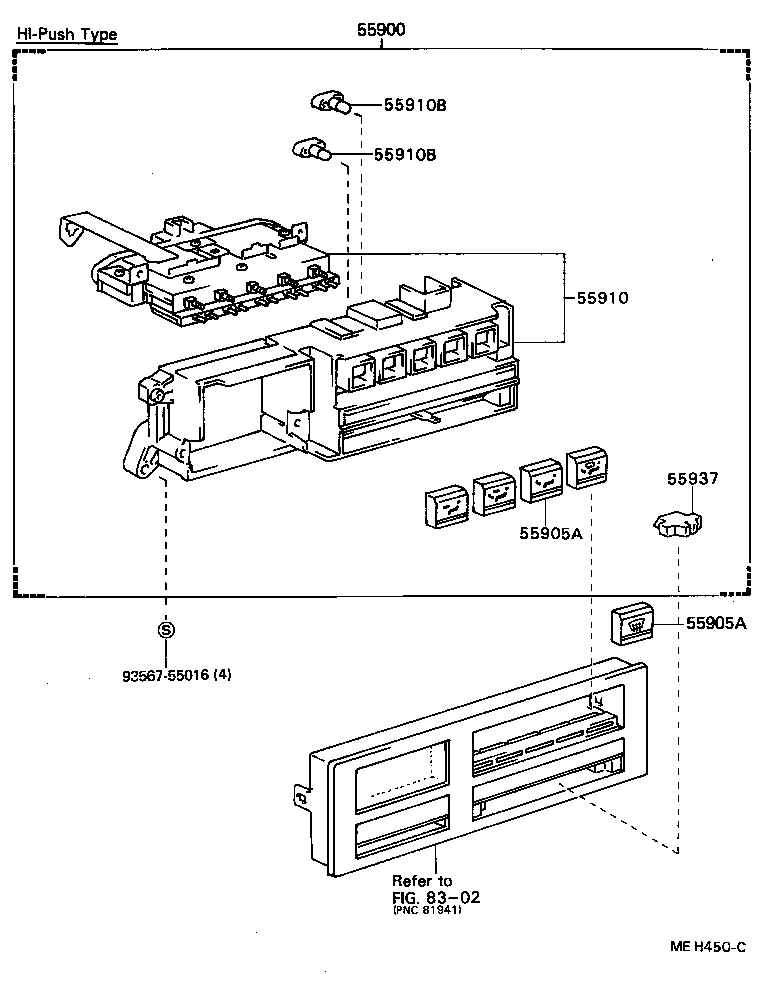

ILLUST NO. 1 OF 3(8608- )GT,SLU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-22151 |
GX71..GT,SLU |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22100 |
GX71,MX71..GT,SLU AUTO |
1 | ||
| 55905-22111 |
GX71..GT,SLU BI-LEVEL |
1 | ||
| 55905-22110 |
GX71,MX71..GT,SLU FACE |
1 | ||
| 55905-22131 |
GX71..GT,SLU HEAT & DEF |
1 | ||
| 55905-22130 |
GX71,MX71..GT,SLU FOOT |
1 | ||
| 55905-22141 |
GX71..GT,SLU DEF |
1 | ||
| 55905-22101 |
GX71..GT,SLU FACE |
1 | ||
| 55905-22121 |
GX71..GT,SLU HEAT |
1 | ||
| 55905-22140 |
GX71,MX71..GT,SLU DEF |
1 | ||
| 55905-22120 |
GX71,MX71..GT,SLU BI-LEVEL |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22100 |
GX71,MX71..GT,SLU AUTO |
1 | ||
| 55905-22111 |
GX71..GT,SLU BI-LEVEL |
1 | ||
| 55905-22110 |
GX71,MX71..GT,SLU FACE |
1 | ||
| 55905-22131 |
GX71..GT,SLU HEAT & DEF |
1 | ||
| 55905-22130 |
GX71,MX71..GT,SLU FOOT |
1 | ||
| 55905-22141 |
GX71..GT,SLU DEF |
1 | ||
| 55905-22101 |
GX71..GT,SLU FACE |
1 | ||
| 55905-22121 |
GX71..GT,SLU HEAT |
1 | ||
| 55905-22140 |
GX71,MX71..GT,SLU DEF |
1 | ||
| 55905-22120 |
GX71,MX71..GT,SLU BI-LEVEL |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-22280 |
GX71,MX71..GT,SLU |
1 | ||
| 55910-22390 |
GX71..GT,SLU |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 84999-22010 |
GX71,MX71..GT,SLU |
1 | ||
| 81850-14650 |
GX71..GT,SLU 12V 1.4W,GREEN BULB |
1 | ||
| 81850-22400 |
GX71..GT,SLU 12V 1.4W,WHITE BULB |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 84999-22010 |
GX71,MX71..GT,SLU |
1 | ||
| 81850-14650 |
GX71..GT,SLU 12V 1.4W,GREEN BULB |
1 | ||
| 81850-22400 |
GX71..GT,SLU 12V 1.4W,WHITE BULB |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-22150 |
GX71,MX71..GT,SLU |
1 | ||
| 55905-22151 |
GX71..GT,SLU |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
