GX71-YEMGE (1984)

Toyota Cresta

Production Aug 1984 - Aug 1988
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(8408-8510)SLU..EFI ; (8502- )LX70..SCM ; (8510- )SX70..SCM

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-22390

GX71..SLU..EFI

 1
04443-22450

GX71..GT,SLU

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

GX71..SLU..EFI

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-30460

GX71..GT,SLU

 1
44608-32020

GX71..SLU..EFI

 1
44610 - BOOSTER ASSY, BRAKE
44610-22550

GX71..SLU..EFI

JKC

 1
44610-22490

GX71..GT,SLU

AISIN

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

GX71..SLU..EFI

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32040

GX71..SLU..EFI

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

GX71..SLU..EFI

 1
44673A - BODY, BOOSTER VALVE
44673-28190

GX71..SLU..EFI

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GX71,LX70,MX71,SX70

 1
Common parts
90179-08038

ILLUST NO. 1 OF 4(8408-8502)KYO,SCM,SDX ; (8502-8510)SX70 ; (8502-8510)LX70..KYO ; (8502- )SDX ;

Click highlighted areas on diagram

diagram 04443 44608 44610 44618 44629 44642 44663 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-22390

GX71..SLU..EFI

 1
04443-22450

GX71..GT,SLU

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-30460

GX71..GT,SLU

 1
44608-32020

GX71..SLU..EFI

 1
44610 - BOOSTER ASSY, BRAKE
44610-22550

GX71..SLU..EFI

JKC

 1
44610-22490

GX71..GT,SLU

AISIN

 1
44618 - SEAL, BOOSTER BODY
44621-14030

GX71..GT,SLU

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

GX71..GT,SLU

 1
44642 - PISTON, BRAKE BOOSTER
44642-30340

GX71..GT,SLU

 1
44663 - KEY, VALVE STOPPER
44635-30340

GX71..GT,SLU

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GX71,LX70,MX71,SX70

 1
Common parts
90179-08038

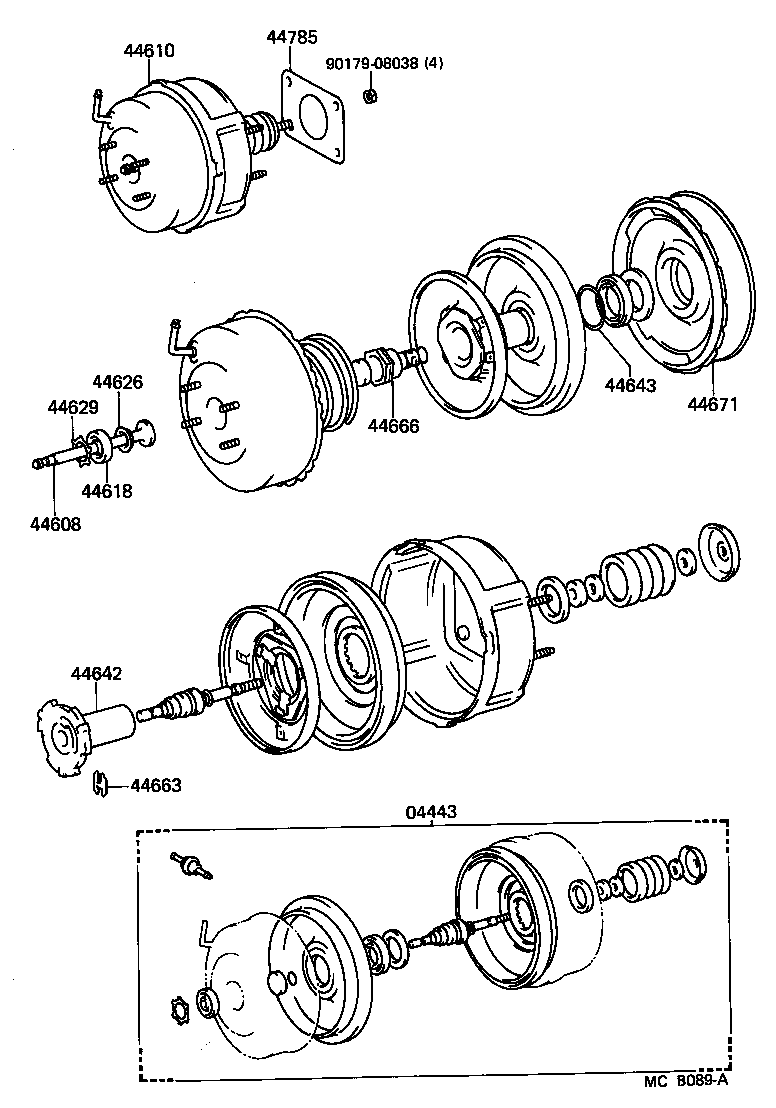

ILLUST NO. 1 OF 4(8408-8510)TBO,TWC ; (8510- )GT,SLU

Click highlighted areas on diagram

diagram 04443 44608 44610 44618 44626 44629 44642 44643 44663 44666 44671 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-22390

GX71..SLU..EFI

 1
04443-22450

GX71..GT,SLU

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-30460

GX71..GT,SLU

 1
44608-32020

GX71..SLU..EFI

 1
44610 - BOOSTER ASSY, BRAKE
44610-22550

GX71..SLU..EFI

JKC

 1
44610-22490

GX71..GT,SLU

AISIN

 1
44618 - SEAL, BOOSTER BODY
44621-14030

GX71..GT,SLU

 1
44626 - RETAINER, BOOSTER ROD CUP
44626-60010

GX71..GT,SLU

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

GX71..GT,SLU

 1
44642 - PISTON, BRAKE BOOSTER
44642-30340

GX71..GT,SLU

 1
44643 - RETAINER, DIAPHRAGM
44643-30340

GX71..GT,SLU

 1
44663 - KEY, VALVE STOPPER
44635-30340

GX71..GT,SLU

 1
44666 - CASE, REACTION DISC
44657-30460

GX71..GT,SLU

 1
44671 - BODY SUB-ASSY, NO.3
44607-30460

GX71..GT,SLU

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GX71,LX70,MX71,SX70

 1
Common parts
90179-08038

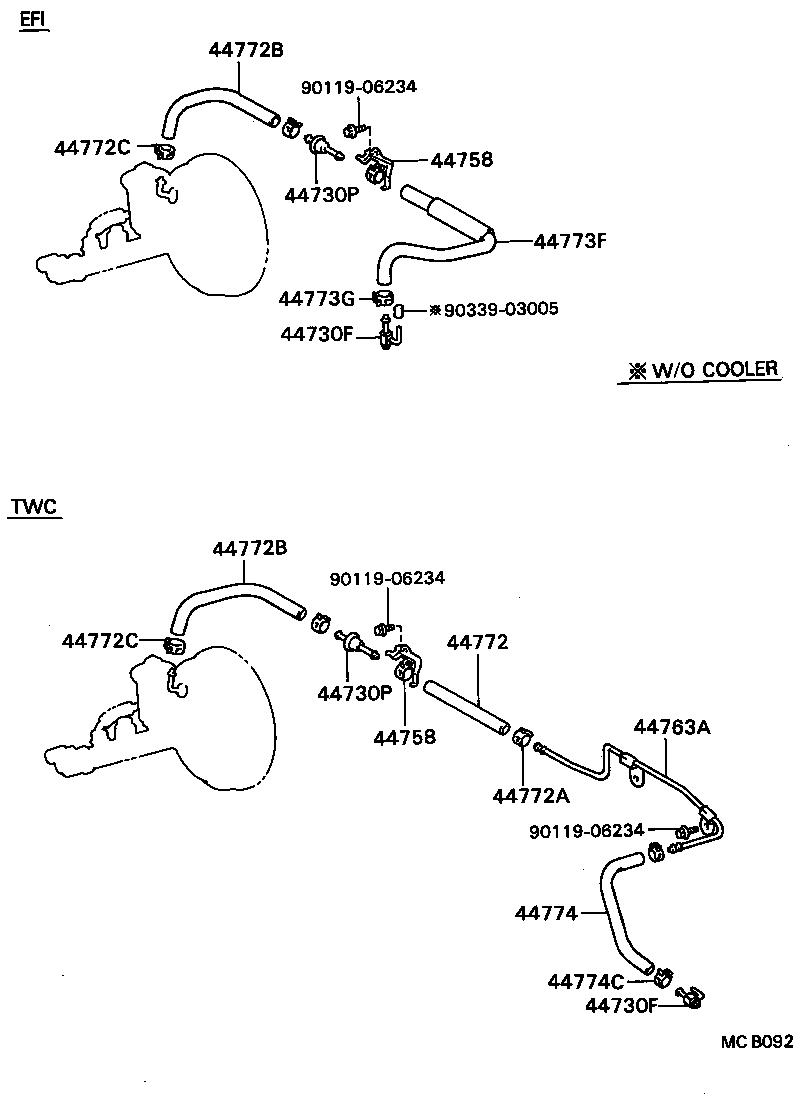

ILLUST NO. 4 OF 4(8408- )EFI,TWC

Click highlighted areas on diagram

diagram 44730F 44730F 44730P 44730P 44758 44758 44763A 44772 44772A 44772B 44772B 44772C 44772C 44773F 44773G 44774 44774C 9011906234 9011906234 9011906234 9033903005
Part # Description Qty Price
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51320

GX71,MX71..SDX,SLU

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51320

GX71,MX71..SDX,SLU

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-10010

GX71,SX70..CBR,EFI,TWC

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-10010

GX71,SX70..CBR,EFI,TWC

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-22170

GX71,SX70..CBR,EFI,TWC

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-22170

GX71,SX70..CBR,EFI,TWC

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-22060

GX71,SX70..CBR,EFI

 1
44772-22110

GX71..GT,SLU

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-22060

GX71,SX70..CBR,EFI

 1
44772-22110

GX71..GT,SLU

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

GX71,LX70,MX71,SX70

 4
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

GX71,LX70,MX71,SX70

 4
44773F - HOSE, UNION TO CHECK VALVE
44773-22350

GX71..EFI

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

SX70..SCM;GX71,LX70..DSL,EFI,TD

 2
Common parts
90119-06234
90339-03005
