GX71-YEMGE (1984)

Toyota Cresta

Production Aug 1984 - Aug 1988
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )5F

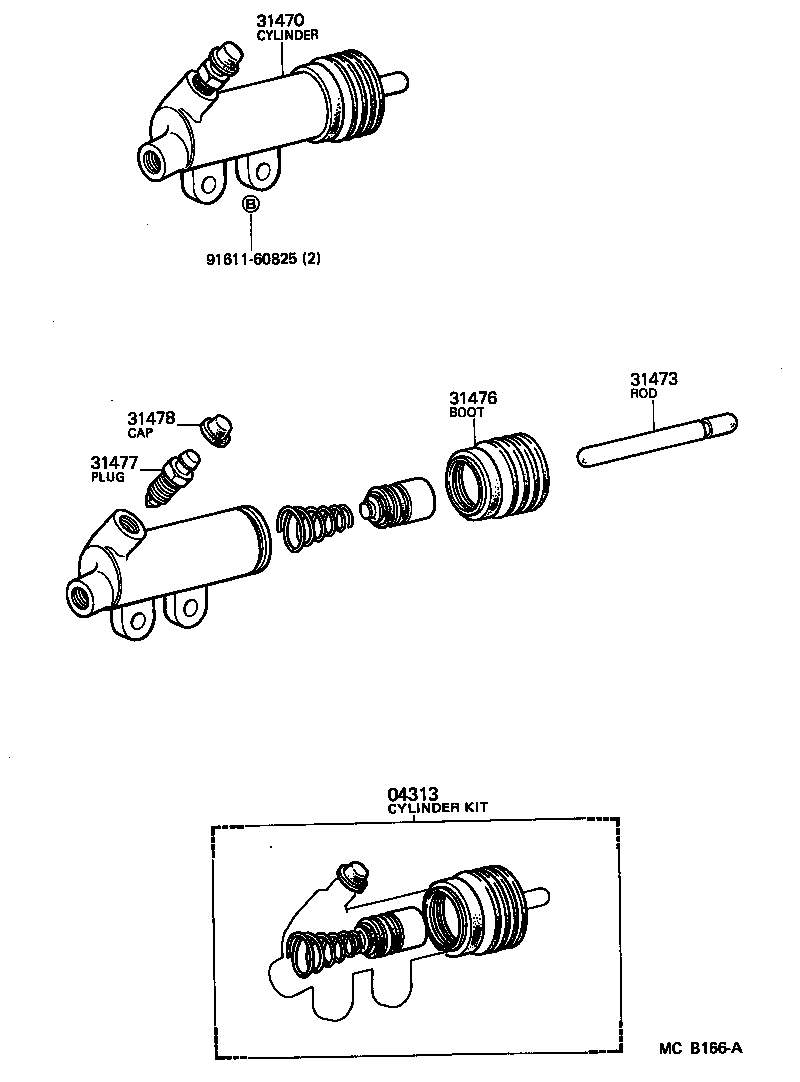

Click highlighted areas on diagram

diagram 04313 31470 31473 31476 31477 31478 9161160825
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-22020

GX71,LX70,SX70..5F

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-30220

GX71,SX70..5F

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-22010

GX71,LX70,SX70..5F

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

GX71,LX70,SX70..5F

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

GX71,LX70,SX70..5F

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

GX71,LX70,SX70..5F

 1
Common parts
91611-60825
