GX71-YEMGE (1984)

Toyota Cresta

Production Aug 1984 - Aug 1988
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )5F

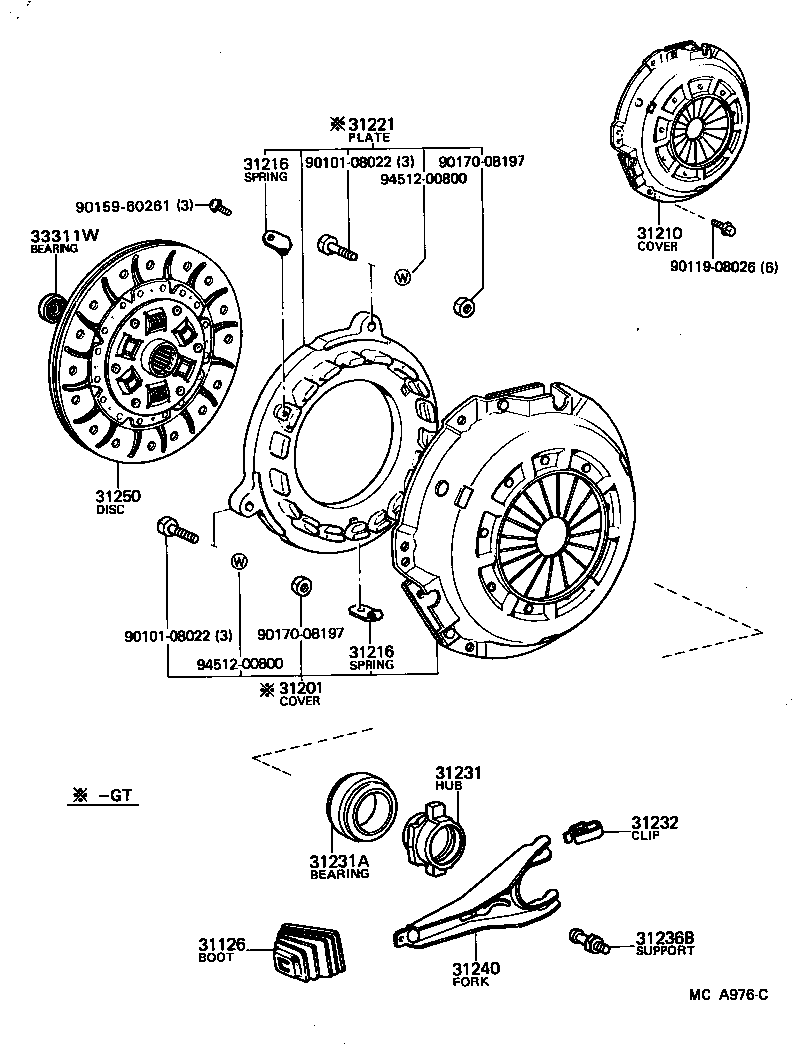

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31231 31231A 31232 31236B 31240 31250 33311W 9010108022 9010108022 9011908026 9015960261 9017008197 9017008197 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

GX71,LX70,SX70..5F

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-29085

GX71,LX70,SX70..5F..(CBR,DSL,EFI)

 1
31210 - COVER ASSY, CLUTCH
31210-36029

SX70..KYO;GX71,LX70..5F..(DSL,EFI)

 1
31210-22070

GX71..5F..EFI

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

GX71,LX70,SX70..5F

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

GX71,LX70,SX70..5F

 3
31221 - PLATE, CLUTCH PRESSURE
31221-39056

GX71..5F

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-36070

GX71..5F

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

GX71,LX70,SX70..5F

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

GX71,LX70,SX70..5F

 2
31236B - SUPPORT, RELEASE FORK
31236-30060

GX71,LX70,SX70..5F

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20090

GX71,LX70,SX70..5F

 1
31250 - DISC ASSY, CLUTCH
31250-22101

GX71..5F..EFI

 1
31250-22102

GX71..5F..EFI

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12003

GX71..5F

 1
Common parts
90101-08022
90119-08026
90159-60261
90170-08197
94512-00800
