GX61-YTPGE (1982)

Toyota Cresta

Production Aug 1982 - Jul 1984
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

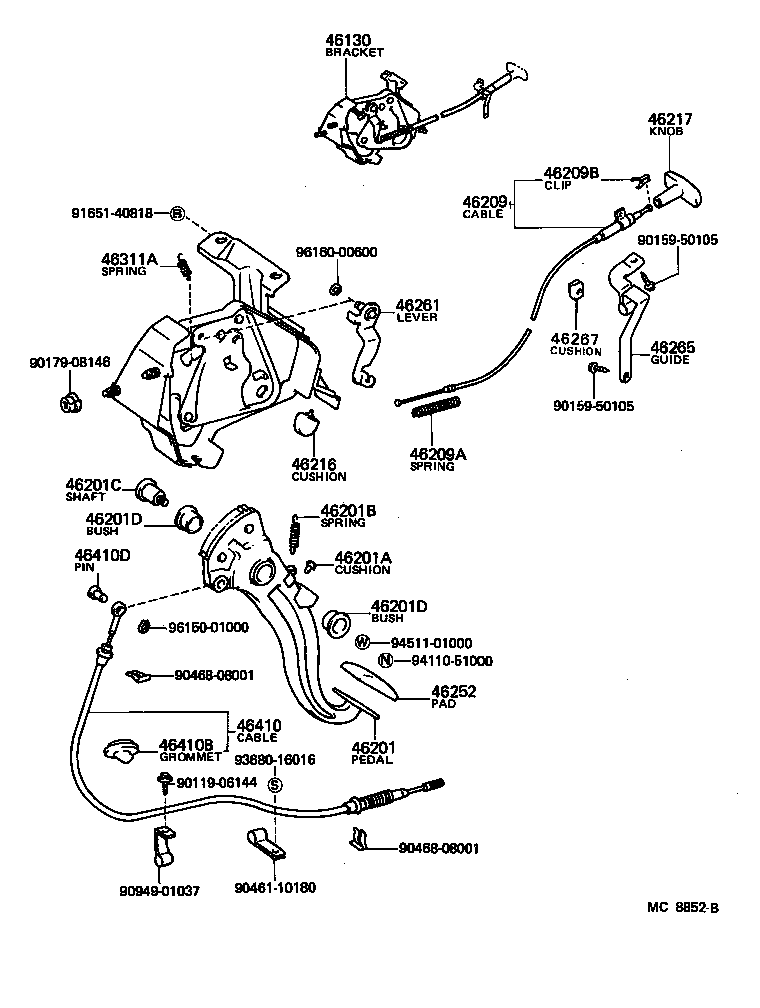

ILLUST NO. 1 OF 2(8208- )4FC

Click highlighted areas on diagram

diagram 46130 46201 46201A 46201B 46201C 46201D 46201D 46209 46209A 46209B 46216 46217 46252 46261 46265 46267 46311A 46410 46410B 46410D 9011906144 9015950105 9015950105 9017908146 9046110180 9046808001 9046808001 9094901037 9165140818 9368016016 9411051000 9451101000 9615001000 9616000600
Part # Description Qty Price
46130 - BRACKET ASSY, PARKING BRAKE PEDAL
46130-22020

GX61,MX61,SX60..4FC

 1
46130-22021

GX61,LX60,MX61,SX60..4FC

 1
46201 - PEDAL SUB-ASSY, PARKING BRAKE
46201-22130

GX61,LX60,MX61,SX60..4FC

 1
46201A - CUSHION(FOR PARKING BRAKE PEDAL)
90541-01001

GX61,LX60,MX61,SX60..4FC

 1
46201B - SPRING, TENSION
90507-14010

GX61,LX60,MX61,SX60..4FC

 1
46201C - SHAFT, PEDAL
90109-10033

GX61,LX60,MX61,SX60..4FC

 1
46201D - BUSH(FOR PARKING BRAKE PEDAL)
90386-16022

GX61,LX60,MX61,SX60..4FC

 2
46201D - BUSH(FOR PARKING BRAKE PEDAL)
90386-16022

GX61,LX60,MX61,SX60..4FC

 2
46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE
46209-22021

GX61,LX60,MX61,SX60..4FC

 1
46209-22020

GX61,MX61,SX60..4FC

 1
46209A - SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE CABLE)
90501-08030

GX61,LX60,MX61,SX60..4FC

 1
46209B - CLIP(FOR PARKING BRAKE RELEASE CABLE)
90468-03013

GX61,MX61,SX60..4FC

 1
90468-05053

GX61,LX60,MX61,SX60..4FC

 1
46216 - CUSHION, PARKING PEDAL
90541-07008

GX61,LX60,MX61,SX60..4FC

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-22020

GX61,MX61,SX60..4FC

 1
46217-22021

GX61,LX60,MX61,SX60..4FC

 1
46252 - PAD, PARKING PEDAL
46252-20010

GX61,LX60,MX61,SX60..4FC

 1
46261 - LEVER, PARKING BRAKE RELEASE INTERMEDIATE
46261-30020

GX61,LX60,MX61,SX60..4FC

 1
46265 - GUIDE, PARKING BRAKE RELEASE ROD
46265-22020

GX61,LX60,MX61,SX60..4FC

 1
46267 - CUSHION, RELEASE ROD GUIDE INTERMEDIATE
46266-30010

GX61,LX60,MX61,SX60..4FC

 1
46311A - SPRING(FOR PARKING BRAKE PAWL)
90506-07007

GX61,LX60,MX61,SX60..4FC

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-22170

GX61,LX60,MX61,SX60..4FC

 1
46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE)
90480-01022

GX61,LX60,MX61,SX60..4FC

 1
46410D - PIN(FOR PARKING BRAKE FRONT CABLE)
90249-10012

GX61,LX60,MX61,SX60..4FC

 1
Common parts
90119-06144
90159-50105
90179-08146
90461-10180
90468-08001
90949-01037
91651-40818
93680-16016
94110-51000
94511-01000
96150-01000
96160-00600

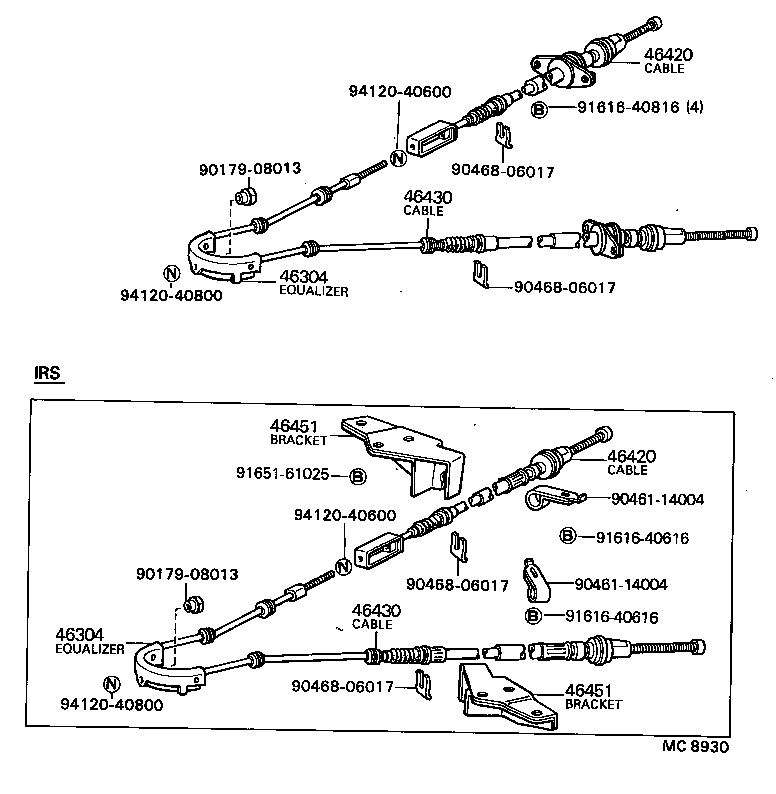

ILLUST NO. 2 OF 2(8208- )4FC

Click highlighted areas on diagram

diagram 46304 46304 46420 46420 46430 46430 46451 46451 9017908013 9017908013 9046114004 9046114004 9046806017 9046806017 9046806017 9046806017 9161640616 9161640616 9161640816 9165161025 9412040600 9412040600 9412040800 9412040800
Part # Description Qty Price
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-14010

GX61,LX60,MX61,SX60..4FC

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-14010

GX61,LX60,MX61,SX60..4FC

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-22131

GX61,MX61..SLU,STR

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-22131

GX61,MX61..SLU,STR

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-22110

GX61,MX61..SLU,STR

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-22110

GX61,MX61..SLU,STR

 1
46451 - BRACKET, CABLE SUPPORT
46401-22010

GX51,61,MX51,61

RH

 1
46403-22010

GX51,61,MX51,61

LH

 1
46451 - BRACKET, CABLE SUPPORT
46401-22010

GX51,61,MX51,61

RH

 1
46403-22010

GX51,61,MX51,61

LH

 1
Common parts
90179-08013
90461-14004
90468-06017
91616-40616
91616-40816
91651-61025
94120-40600
94120-40800
