GX61-YTMGF (1982)
Toyota Cresta
Production
Aug 1982
-
Jul 1984
Engine
1GGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )L

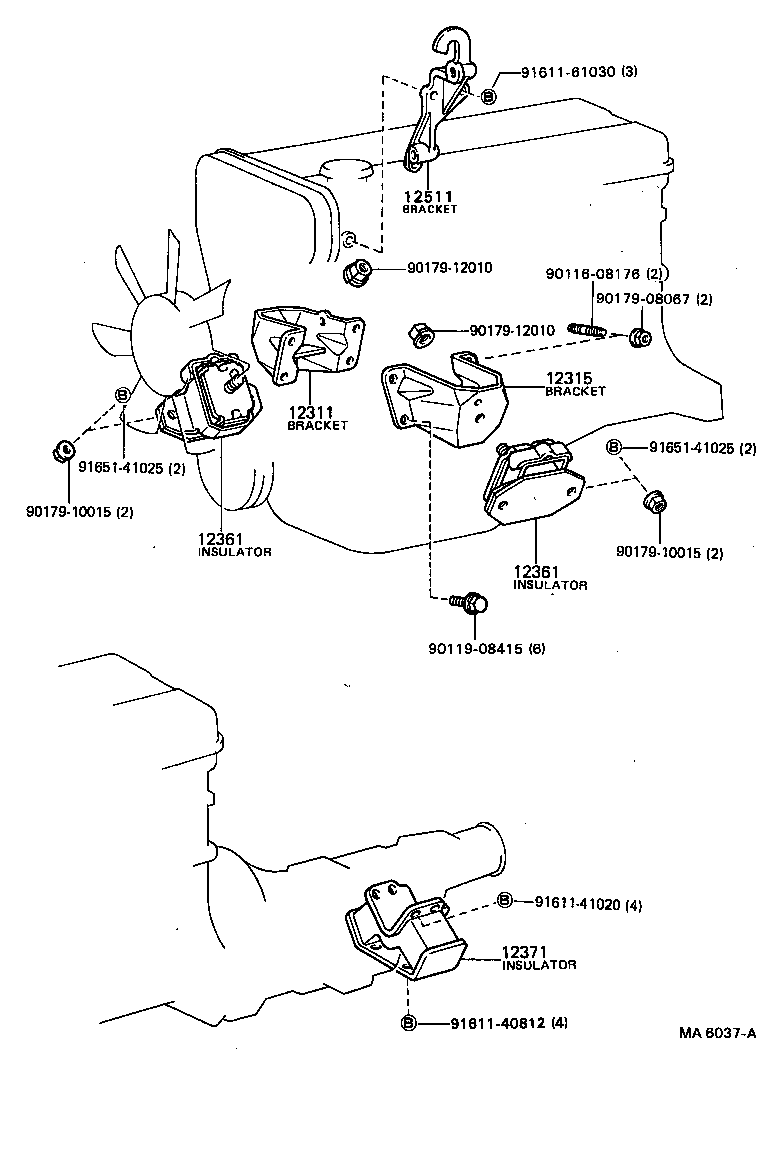

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-70010 |
1G#..GX5#,61 |
1 | ||
| 12311-70040 |
1GGEU..GX61 |
1 | ||
| 12311-70050 |
1G#..GX61 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-88301 |
1GGEU..GX61 |
1 | ||
| 12315-88300 |
1GGEU..GX61 |
1 | ||
| 12315-70011 |
1G#..GX61 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-70030 |
1GGEU..GX61 |
2 | ||
| 12361-41080 |
1G#..GX5#,61 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-70030 |
1GGEU..GX61 |
2 | ||
| 12361-41080 |
1G#..GX5#,61 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34020 |
1G#..GX5#,61 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34020 |
1G#..GX5#,61 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 90179-12010 | ||||
| 91611-40812 | ||||
| 91611-41020 | ||||
| 91611-61025 | ||||
| 91651-41025 | ||||
(8208- )1GGEU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-70010 |
1G#..GX5#,61 |
1 | ||
| 12311-70040 |
1GGEU..GX61 |
1 | ||
| 12311-70050 |
1G#..GX61 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-88301 |
1GGEU..GX61 |
1 | ||
| 12315-88300 |
1GGEU..GX61 |
1 | ||
| 12315-70011 |
1G#..GX61 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-70030 |
1GGEU..GX61 |
2 | ||
| 12361-41080 |
1G#..GX5#,61 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-70030 |
1GGEU..GX61 |
2 | ||
| 12361-41080 |
1G#..GX5#,61 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34020 |
1G#..GX5#,61 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-88300 |
1GGEU..GX61 |
1 | ||
| 12511-88301 |
1GGEU..GX61 |
1 | ||
| Common parts | ||||
| 90116-08176 | ||||
| 90119-08415 | ||||
| 90179-08067 | ||||
| 90179-10015 | ||||
| 90179-12010 | ||||
| 91611-40812 | ||||
| 91611-41020 | ||||
| 91611-61030 | ||||
| 91651-41025 | ||||
