Toyota Cresta GX61 ALTERNATOR - JDM Part Detective

GX61-YTMFE (1982)

Toyota Cresta

Production Aug 1982 - Jul 1984

Engine 1GEU

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

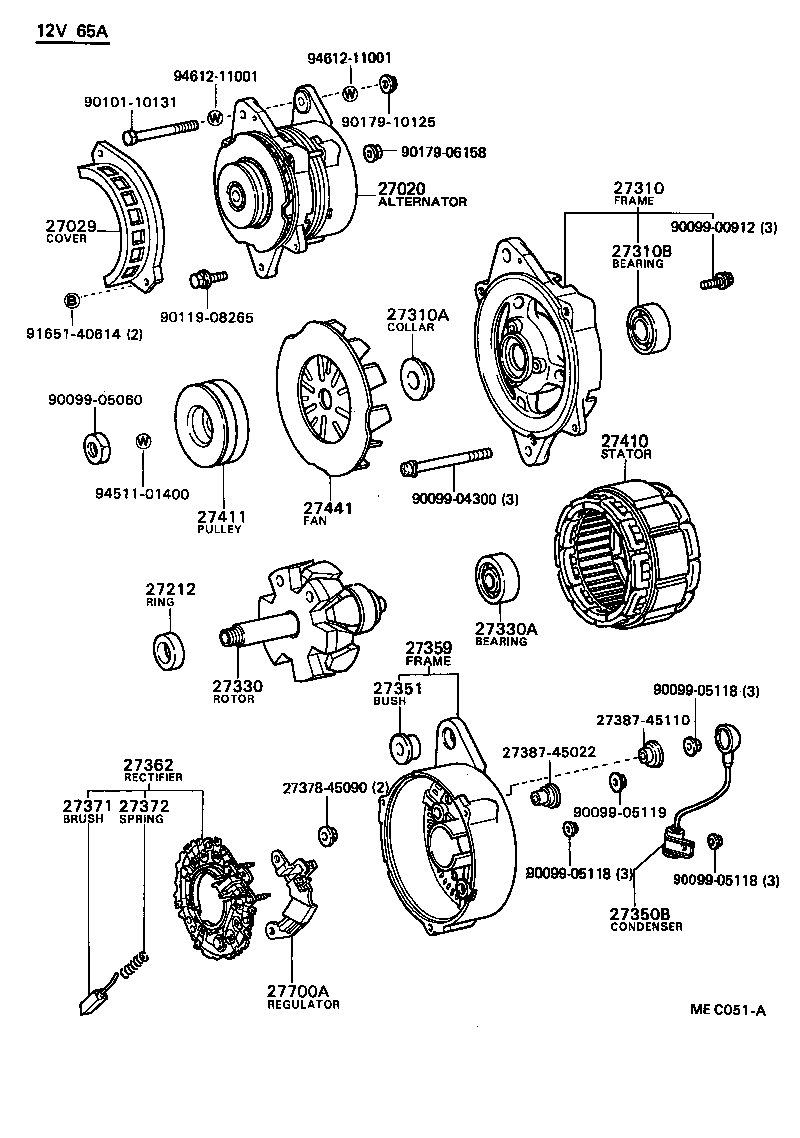

(8208-8308)1GEU

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-70040	1GEU..GX61 12V 65A,12V 65A	08/1982 - 08/1983	1
27060-70080	1GEU..GX61 12V 60A,12V 60A	08/1983 - 07/1984	1
27029 - COVER, ALTERNATOR
27029-70010	1GEU..GX5#,61 12V 55A,60A,65A	03/1980 - 08/1983	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070	13TU,1GEU,1SU,MTEU..GX5#,61,MX51,61,SX60,TX50 12V 55A,60A,65A	03/1980 - 08/1983	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-70030	1GEU..GX61 12V 65A	08/1982 - 08/1983	1
27310-70080	1GEU..GX61 12V 60A	08/1983 - 07/1984	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040	13TU,1GEU,1SU,MTEU..GX5#,61,MX51,61,SX60,TX50 12V 55A,60A,65A	03/1980 - 08/1983	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10141	1GEU,MTEU..GX61,MX61 12V 60A,OD=42	08/1983 - 09/1983	1
90099-10152	1G#,MTEU..GX61,MX61 12V 60A,70A,OD=43	09/1983 - 07/1984	1
27330 - ROTOR ASSY, ALTERNATOR
27330-63021	1GEU,MTEU..GX61,MX61 12V 60A	08/1983 - 07/1984	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116	13TU,1GEU,1SU,MTEU..GX5#,61,MX51,61,SX60,TX50 12V 55A,60A,65A	03/1980 - 08/1983	1
90099-10140	1GEU,MTEU..GX61,MX61 12V 60A	08/1983 - 07/1984	1
27350B - CONDENSER, ALTERNATOR
90099-52065	13TU,1GEU,1SU,MTEU..GX5#,61,MX51,61,SX60,TX50 12V 55A,60A,65A	03/1980 - 08/1983	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-70010	1GEU..GX5#,61 12V 55A,60A,65A	03/1980 - 07/1984	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-70030	1GEU..GX61 12V 65A	08/1982 - 08/1983	1
27359-70080	1GEU..GX61 12V 60A	08/1983 - 04/1984	1
27359-70081	1GEU..GX61 12V 60A	04/1984 - 07/1984	1
27371 - BRUSH, ALTERNATOR
27371-63020	1GEU,MTEU..GX61,MX61 12V 60A	08/1983 - 07/1984	2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020	1GEU,MTEU..GX61,MX61 12V 60A	08/1983 - 07/1984	2
27411 - PULLEY, ALTERNATOR
27411-70090	1GEU..GX61 12V 60A	08/1983 - 07/1984	1
27411-45010	1GEU..GX5#,61 12V 55A,60A,65A	03/1980 - 08/1983	1
27441 - FAN, ALTERNATOR
27441-70040	1GEU..GX61 12V 65A	08/1982 - 08/1983	1
27700A - REGULATOR ASSY, GENERATOR
27700-63021	1GEU,MTEU..GX61,MX61 12V 60A	08/1983 - 07/1984	1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10131
90119-08265
90179-06158
90179-10125
91651-40614
94511-01400
94612-11001

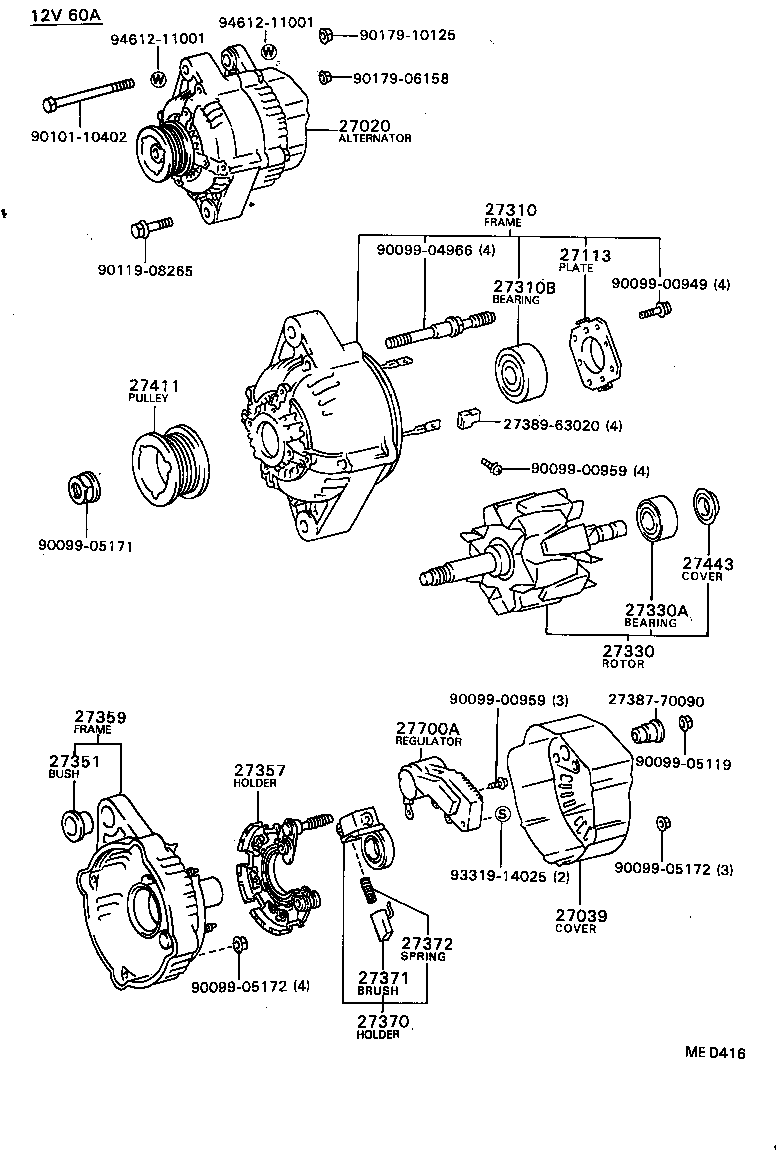

(8308- )1GEU

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-70040	1GEU..GX61 12V 65A,12V 65A	08/1982 - 08/1983	1
27060-70080	1GEU..GX61 12V 60A,12V 60A	08/1983 - 07/1984	1
27039 - COVER, ALTERNATOR REAR END
27039-70080	1GEU..GX61 12V 60A	08/1983 - 07/1984	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-63020	1GEU,MTEU..GX61,MX61 12V 60A	08/1983 - 07/1984	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-70030	1GEU..GX61 12V 65A	08/1982 - 08/1983	1
27310-70080	1GEU..GX61 12V 60A	08/1983 - 07/1984	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10141	1GEU,MTEU..GX61,MX61 12V 60A,OD=42	08/1983 - 09/1983	1
90099-10152	1G#,MTEU..GX61,MX61 12V 60A,70A,OD=43	09/1983 - 07/1984	1
27330 - ROTOR ASSY, ALTERNATOR
27330-63021	1GEU,MTEU..GX61,MX61 12V 60A	08/1983 - 07/1984	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116	13TU,1GEU,1SU,MTEU..GX5#,61,MX51,61,SX60,TX50 12V 55A,60A,65A	03/1980 - 08/1983	1
90099-10140	1GEU,MTEU..GX61,MX61 12V 60A	08/1983 - 07/1984	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-70010	1GEU..GX5#,61 12V 55A,60A,65A	03/1980 - 07/1984	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-70080	1GEU..GX61 12V 60A	08/1983 - 07/1984	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-70030	1GEU..GX61 12V 65A	08/1982 - 08/1983	1
27359-70080	1GEU..GX61 12V 60A	08/1983 - 04/1984	1
27359-70081	1GEU..GX61 12V 60A	04/1984 - 07/1984	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-16010	1GEU..GX61 12V 60A	08/1983 - 04/1984	1
27370-16011	1GEU..GX61 12V 60A	04/1984 - 07/1984	1
27371 - BRUSH, ALTERNATOR
27371-63020	1GEU,MTEU..GX61,MX61 12V 60A	08/1983 - 07/1984	2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020	1GEU,MTEU..GX61,MX61 12V 60A	08/1983 - 07/1984	2
27411 - PULLEY, ALTERNATOR
27411-70090	1GEU..GX61 12V 60A	08/1983 - 07/1984	1
27411-45010	1GEU..GX5#,61 12V 55A,60A,65A	03/1980 - 08/1983	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1GEU,MTEU..GX61,MX61 12V 60A	08/1983 - 07/1984	1
27700A - REGULATOR ASSY, GENERATOR
27700-63021	1GEU,MTEU..GX61,MX61 12V 60A	08/1983 - 07/1984	1
Common parts
27387-70090
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90101-10402
90119-08265
90179-06158
90179-10125
93319-14025
94612-11001

GX61-YTMFE (1982)

(8208-8308)1GEU

(8308- )1GEU
