GX51-YTPSE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

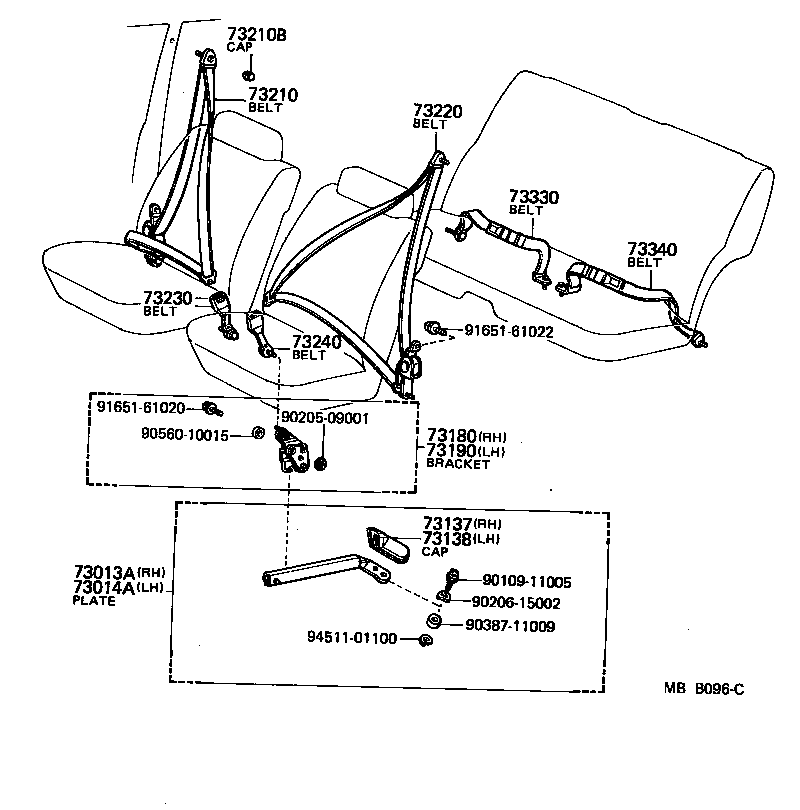

Click highlighted areas on diagram

diagram 73013A 73014A 73137 73138 73180 73190 73210 73210B 73220 73230 73240 73330 73340 9010911005 9020509001 9020615002 9038711009 9056010015 9165161020 9165161022 9451101100
Part # Description Qty Price
73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73013-2201004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
73013-2201006

GX5#,MX51,TX50

D-BROWN,BROWN,TRIM4#

 1
73013-2201001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73014-2201001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
73014-2201006

GX5#,MX51,TX50

D-BROWN,BROWN,TRIM4#

 1
73014-2201004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
73137 - CAP, FRONT SEAT BELT INNER ANCHOR, RH
73137-2201006

GX5#,MX51,TX50

D-BROWN,BROWN,TRIM4#

 1
73137-2201001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
73137-2201004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
73138 - CAP, FRONT SEAT BELT INNER ANCHOR, LH
73138-2201006

GX5#,MX51,TX50

D-BROWN,BROWN,TRIM4#

 1
73138-2201004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
73138-2201001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73011-22010

GX5#,61,LX60,MX51,61,SX60,TX50

 1
73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73012-22010

GX5#,61,LX60,MX51,61,SX60,TX50

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-2217001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
73210-2217004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
73210-2217006

GX5#,MX51,TX50

D-BROWN,BROWN,TRIM4#

 1
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201011

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 2
73178-1201026

GX5#,MX51,TX50

D-BROWN,BROWN,TRIM4#

 2
73178-1201004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 2
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-2217006

GX5#,MX51,TX50

D-BROWN,BROWN,TRIM4#

 1
73210-2217001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
73210-2217004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-2213001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
73230-2213006

GX5#,61,LX60,MX51,61,SX60,TX50

D-BROWN,BROWN,TRIM4#

 1
73230-2213004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-2213004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
73230-2213001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
73230-2213006

GX5#,61,LX60,MX51,61,SX60,TX50

D-BROWN,BROWN,TRIM4#

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-2203006

GX5#,MX51,TX50

D-BROWN,BROWN,TRIM4#

 1
73330-2203001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
73330-2203004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-2203006

GX5#,MX51,TX50

D-BROWN,BROWN,TRIM4#

 1
73330-2203001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
73330-2203004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
Common parts
90109-11005
90205-09001
90206-15002
90387-11009
90560-10015
91651-61020
91651-61022
94511-01100
