GX51-YTPGE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )SLU

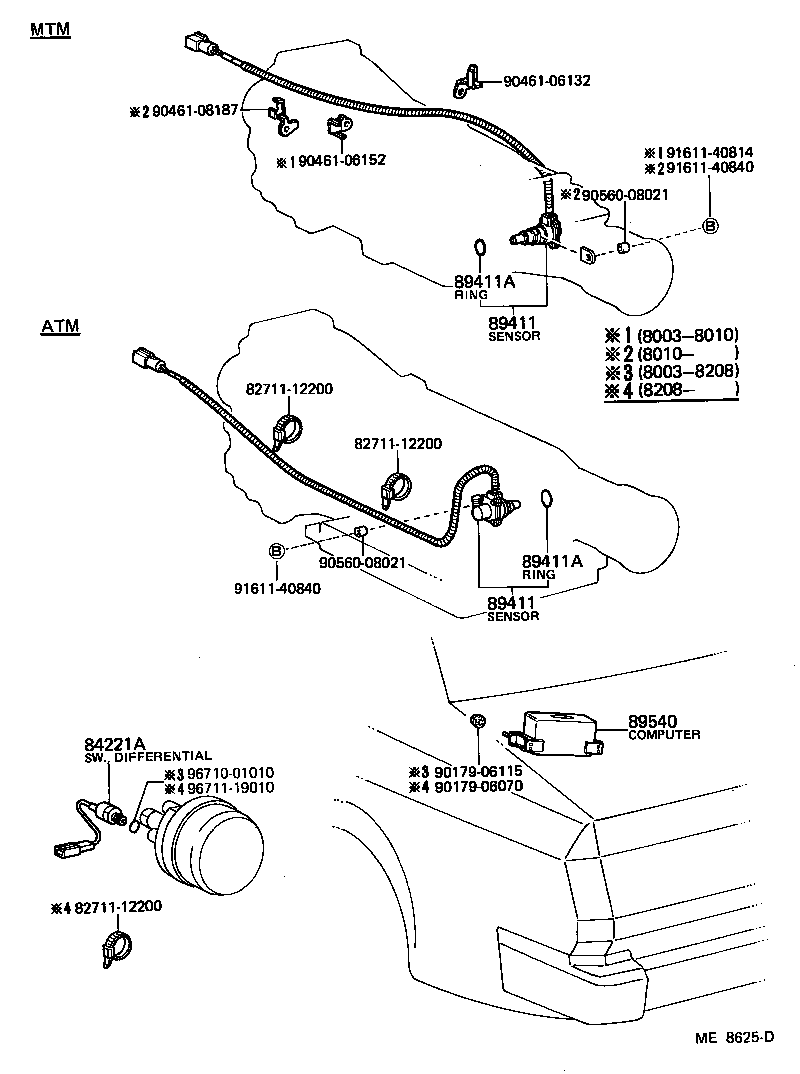

Click highlighted areas on diagram

diagram 8271112200 8271112200 8271112220 84221A 89411 89411 89411A 89411A 89540 9017906070 9017906115 9046106132 9046106152 9046108187 9056008021 9056008021 9161140814 9161140840 9161140840 9671001010 9671119010
Part # Description Qty Price
84221A - SWITCH ASSY, DIFFERENTIAL VALVE (FOR ESC)
84220-12050

GX51..SLU

 1
89411 - SENSOR, SPEED
89411-22010

GX51..4FC..SLU

 1
89411 - SENSOR, SPEED
89411-22010

GX51..4FC..SLU

 1
89411A - RING, O (FOR SPEED SENSOR)
90301-18018

GX51..SLU

 1
89411A - RING, O (FOR SPEED SENSOR)
90301-18018

GX51..SLU

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-22060

GX51,61..SLU

 1
Common parts
82711-12200
82711-12220
90179-06070
90179-06115
90461-06132
90461-06152
90461-08187
90560-08021
91611-40814
91611-40840
96710-01010
96711-19010
