GX51-YTPGE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )ATM..CBR,DSL,EFI,TBO

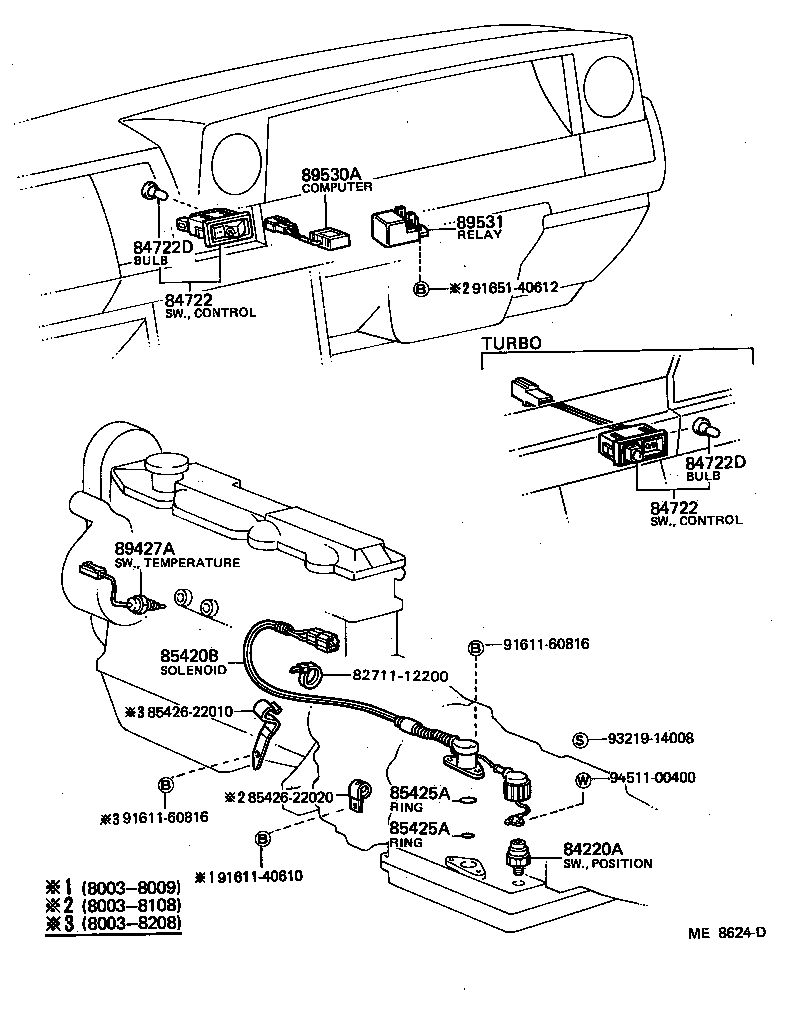

Click highlighted areas on diagram

diagram 8271112200 84220A 84722 84722 84722D 84722D 85420B 85425A 85425A 8542622010 8542622020 89427A 89530A 89531 9161140610 9161160816 9161160816 9165140612 9321914008 9451100400
Part # Description Qty Price
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-30050

GX5#,61,LX60,MX51,61,SX60..4FC..(CBR,DSL,EFI,TBO)

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-22040

GX5#,61,LX60,SX60..4FC..(CBR,DSL,EFI)

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-22040

GX5#,61,LX60,SX60..4FC..(CBR,DSL,EFI)

 1
84722D - BULB, TRANSMISSION CONTROL SWITCH
90981-11024

GX5#,61,LX60,MX51,61,SX60..4FC..(CBR,DSL,EFI,TBO)

12V 1.4W,12V 1.4W

 1
84722D - BULB, TRANSMISSION CONTROL SWITCH
90981-11024

GX5#,61,LX60,MX51,61,SX60..4FC..(CBR,DSL,EFI,TBO)

12V 1.4W,12V 1.4W

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-22040

GX5#,61,LX60,MX51,61,SX60..4FC..(CBR,DSL,EFI,TBO)

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-11001

GX5#,61,LX60,MX51,61,SX60..4FC..(CBR,DSL,EFI,TBO)

ID=11

 1
90301-23001

GX5#,61,LX60,MX51,61,SX60..4FC..(CBR,DSL,EFI,TBO)

ID=23

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-11001

GX5#,61,LX60,MX51,61,SX60..4FC..(CBR,DSL,EFI,TBO)

ID=11

 1
90301-23001

GX5#,61,LX60,MX51,61,SX60..4FC..(CBR,DSL,EFI,TBO)

ID=23

 1
89427A - SWITCH, TEMPERATURE
89428-30050

GX5#,61,MX51,61..4FC..(EFI,TBO)

 1
89531 - RELAY, TRANSMISSION CONTROL
89531-22020

GX5#..4FC

 1
Common parts
82711-12200
85426-22010
85426-22020
91611-40610
91611-60816
91651-40612
93219-14008
94511-00400
