GX51-YTPGE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )GX5#,SX60..4FC

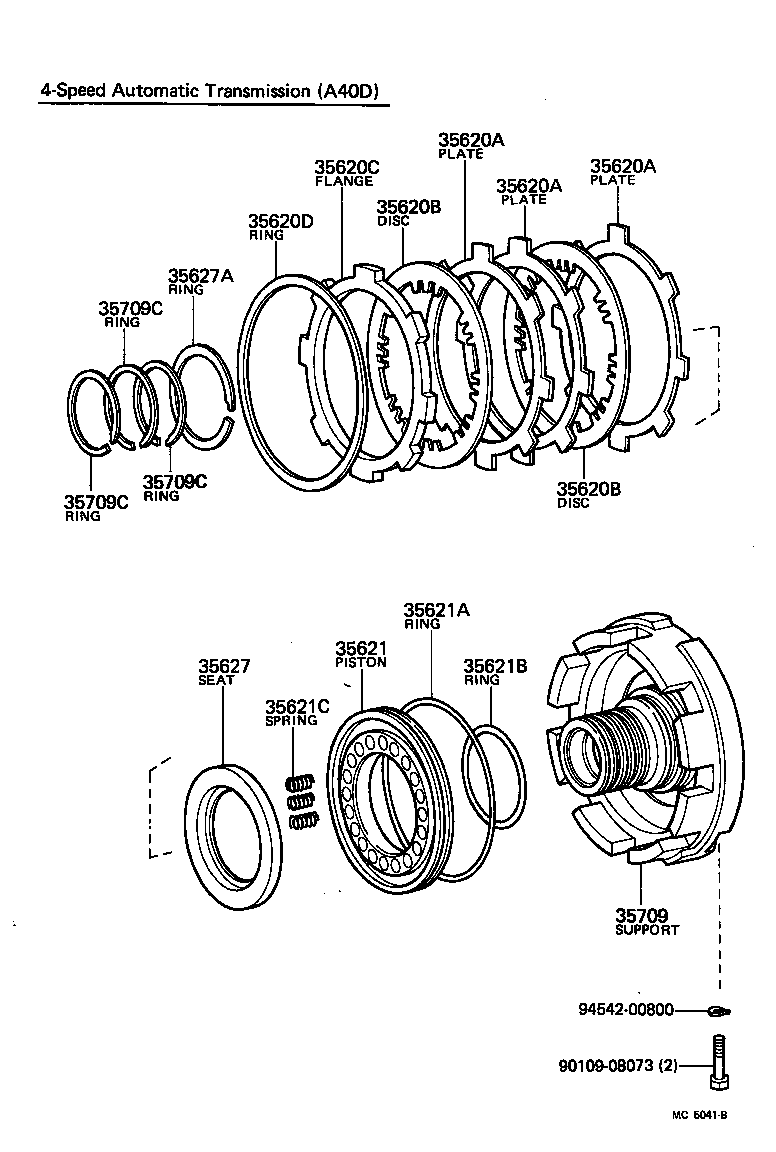

Click highlighted areas on diagram

diagram 35620A 35620A 35620A 35620B 35620B 35620C 35620D 35621 35621A 35621B 35621C 35627 35627A 35709 35709C 35709C 35709C 9010908073 9454200800
Part # Description Qty Price
35620A - PLATE, CLUTCH (FOR BRAKE)
35634-22090

GX51,TX50..ATM

A40,A42DL,AISIN CHEMICAL

 1
35634-22060

GX51,TX50..ATM

A40,A42DL,NSK-WARNER

 1
35634-22060

GX5#,MX51,SX60..4FC

A40D,A43D,T=1.8

 3
35648-30010

GX5#,SX60..4FC

A40D,T=2.0

 3
35620A - PLATE, CLUTCH (FOR BRAKE)
35634-22090

GX51,TX50..ATM

A40,A42DL,AISIN CHEMICAL

 1
35634-22060

GX51,TX50..ATM

A40,A42DL,NSK-WARNER

 1
35634-22060

GX5#,MX51,SX60..4FC

A40D,A43D,T=1.8

 3
35648-30010

GX5#,SX60..4FC

A40D,T=2.0

 3
35620A - PLATE, CLUTCH (FOR BRAKE)
35634-22090

GX51,TX50..ATM

A40,A42DL,AISIN CHEMICAL

 1
35634-22060

GX51,TX50..ATM

A40,A42DL,NSK-WARNER

 1
35634-22060

GX5#,MX51,SX60..4FC

A40D,A43D,T=1.8

 3
35648-30010

GX5#,SX60..4FC

A40D,T=2.0

 3
35620B - DISC, CLUTCH (FOR BRAKE)
35677-22020

GX51,MX51,TX50..ATM

A40,A42DL,A43D,NSK-WARNER

 1
35677-22030

GX51,TX50..ATM

A40,A42DL,AISIN CHEMICAL

 1
35677-22020

GX5#,SX60..4FC

A40D

 2
35620B - DISC, CLUTCH (FOR BRAKE)
35677-22020

GX51,MX51,TX50..ATM

A40,A42DL,A43D,NSK-WARNER

 1
35677-22030

GX51,TX50..ATM

A40,A42DL,AISIN CHEMICAL

 1
35677-22020

GX5#,SX60..4FC

A40D

 2
35620C - FLANGE, CLUTCH (FOR BRAKE)
35675-22020

GX5#..4FC

T=3.9

 1
35675-22010

GX5#,61,LX60,MX51,61,SX60,TX50..ATM

T=4.0

 1
35620D - RING (FOR BRAKE)
90521-99139

GX5#,61,LX60,MX51,61,SX60,TX50..ATM

 1
35621 - PISTON, BRAKE, NO.1
35621-30010

GX5#..4FC

A40D

 1
35624-22010

GX51,MX51..4FC

A42DL,A43D

 1
35621A - RING, O (FOR BRAKE PISTON OUTER)
90301-99192

GX51,MX51,TX50..ATM

A40,A42DL,A43D

 1
90301-99007

GX5#,SX60..4FC

A40D

 1
35621B - RING, O (FOR BRAKE PISTON INNER)
90301-57188

GX5#,61,LX60,MX51,61,SX60,TX50..ATM

 1
35621C - SPRING (FOR BRAKE PISTON RETURN)
90501-10671

GX5#..4FC

 16
35627 - SEAT, BRAKE RETURN SPRING
35627-22010

GX5#,61,LX60,MX51,61,SX60,TX50..ATM

 1
35627A - RING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)
90520-52262

GX5#,61,LX60,MX51,61,SX60,TX50..ATM

 1
35709 - SUPPORT SUB-ASSY, CENTER
35709-30020

GX5#..4FC

A40D

 1
35709-12010

GX51..4FC

A42DL

 1
35709-12011

GX51..4FC

A42DL

 1
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-22020

GX5#,TX50..ATM

 3
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-22020

GX5#,TX50..ATM

 3
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-22020

GX5#,TX50..ATM

 3
Common parts
90109-08073
94542-00800

(8003- )GX51,61,LX60,MX51,61,TX50..ATM

Click highlighted areas on diagram

diagram 35620A 35620A 35620B 35620B 35620C 35620D 35620R 35620R 35620R 35620R 35620S 35620S 35620S 35620T 35620U 35621 35621A 35621B 35621C 35621R 35621S 35621T 35621U 35627 35627A 35627R 35627S 35662 35709 35709C 35709C 35709C 35790 35793 35793 9010908073 9454200800
Part # Description Qty Price
35620A - PLATE, CLUTCH (FOR BRAKE)
35634-22090

GX51,TX50..ATM

A40,A42DL,AISIN CHEMICAL

 1
35634-22060

GX51,TX50..ATM

A40,A42DL,NSK-WARNER

 1
35634-22060

GX5#,MX51,SX60..4FC

A40D,A43D,T=1.8

 3
35648-30010

GX5#,SX60..4FC

A40D,T=2.0

 3
35620A - PLATE, CLUTCH (FOR BRAKE)
35634-22090

GX51,TX50..ATM

A40,A42DL,AISIN CHEMICAL

 1
35634-22060

GX51,TX50..ATM

A40,A42DL,NSK-WARNER

 1
35634-22060

GX5#,MX51,SX60..4FC

A40D,A43D,T=1.8

 3
35648-30010

GX5#,SX60..4FC

A40D,T=2.0

 3
35620B - DISC, CLUTCH (FOR BRAKE)
35677-22020

GX51,MX51,TX50..ATM

A40,A42DL,A43D,NSK-WARNER

 1
35677-22030

GX51,TX50..ATM

A40,A42DL,AISIN CHEMICAL

 1
35677-22020

GX5#,SX60..4FC

A40D

 2
35620B - DISC, CLUTCH (FOR BRAKE)
35677-22020

GX51,MX51,TX50..ATM

A40,A42DL,A43D,NSK-WARNER

 1
35677-22030

GX51,TX50..ATM

A40,A42DL,AISIN CHEMICAL

 1
35677-22020

GX5#,SX60..4FC

A40D

 2
35620C - FLANGE, CLUTCH (FOR BRAKE)
35675-22020

GX5#..4FC

T=3.9

 1
35675-22010

GX5#,61,LX60,MX51,61,SX60,TX50..ATM

T=4.0

 1
35620D - RING (FOR BRAKE)
90521-99139

GX5#,61,LX60,MX51,61,SX60,TX50..ATM

 1
35620R - PLATE, CLUTCH (FOR REAR BRAKE)
35634-22060

GX51,TX50..ATM

NSK-WARNER

 3
35634-22090

GX51,TX50..ATM

AISIN-CHEMICAL

 3
35620R - PLATE, CLUTCH (FOR REAR BRAKE)
35634-22060

GX51,TX50..ATM

NSK-WARNER

 3
35634-22090

GX51,TX50..ATM

AISIN-CHEMICAL

 3
35620R - PLATE, CLUTCH (FOR REAR BRAKE)
35634-22060

GX51,TX50..ATM

NSK-WARNER

 3
35634-22090

GX51,TX50..ATM

AISIN-CHEMICAL

 3
35620R - PLATE, CLUTCH (FOR REAR BRAKE)
35634-22060

GX51,TX50..ATM

NSK-WARNER

 3
35634-22090

GX51,TX50..ATM

AISIN-CHEMICAL

 3
35620S - DISC, CLUTCH (FOR REAR BRAKE)
35677-22040

GX51,TX50..ATM

 2
35620S - DISC, CLUTCH (FOR REAR BRAKE)
35677-22040

GX51,TX50..ATM

 2
35620S - DISC, CLUTCH (FOR REAR BRAKE)
35677-22040

GX51,TX50..ATM

 2
35620T - FLANGE, CLUTCH (FOR REAR BRAKE)
35675-22010

GX51,TX50..ATM

 1
35621 - PISTON, BRAKE, NO.1
35621-30010

GX5#..4FC

A40D

 1
35624-22010

GX51,MX51..4FC

A42DL,A43D

 1
35621A - RING, O (FOR BRAKE PISTON OUTER)
90301-99192

GX51,MX51,TX50..ATM

A40,A42DL,A43D

 1
90301-99007

GX5#,SX60..4FC

A40D

 1
35621B - RING, O (FOR BRAKE PISTON INNER)
90301-57188

GX5#,61,LX60,MX51,61,SX60,TX50..ATM

 1
35621C - SPRING (FOR BRAKE PISTON RETURN)
90501-10671

GX5#..4FC

 16
35621U - SPRING (FOR REAR BRAKE PISTON RETURN)
90501-10671

GX51,MX51,TX50..ATM

 12
35627 - SEAT, BRAKE RETURN SPRING
35627-22010

GX5#,61,LX60,MX51,61,SX60,TX50..ATM

 1
35627A - RING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)
90520-52262

GX5#,61,LX60,MX51,61,SX60,TX50..ATM

 1
35709 - SUPPORT SUB-ASSY, CENTER
35709-30020

GX5#..4FC

A40D

 1
35709-12010

GX51..4FC

A42DL

 1
35709-12011

GX51..4FC

A42DL

 1
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-22020

GX5#,TX50..ATM

 3
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-22020

GX5#,TX50..ATM

 3
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-22020

GX5#,TX50..ATM

 3
Common parts
90109-08073
94542-00800
