GX51-YTMSE (1980)
Toyota Cresta
ILLUST NO. 1 OF 5(8003- )GX5#,61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07118 |
GX5#,TX50 L=220(NO.3) |
1 | ||
| 90980-07109 |
GX5#,61..EFI L=400(NO.1) |
1 | ||
| 90980-07119 |
GX5#,61,MX51,61,SX60,TX50 L=350(NO.2) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07118 |
GX5#,TX50 L=220(NO.3) |
1 | ||
| 90980-07109 |
GX5#,61..EFI L=400(NO.1) |
1 | ||
| 90980-07119 |
GX5#,61,MX51,61,SX60,TX50 L=350(NO.2) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07118 |
GX5#,TX50 L=220(NO.3) |
1 | ||
| 90980-07109 |
GX5#,61..EFI L=400(NO.1) |
1 | ||
| 90980-07119 |
GX5#,61,MX51,61,SX60,TX50 L=350(NO.2) |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-12060 |
GX5# |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82270-22491 |
GX5# |
1 | ||
| 82270-22490 |
GX5# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82291-22150 |
GX5# |
1 | ||
| 82291-22151 |
GX5# |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82230-22510 |
GX51..STR W/*PW,*AD OR *RW |
1 | ||
| 82230-22500 |
GX51..STR |
1 | ||
| 82230-22511 |
GX51..STR W/*PW,*AD OR *RW |
1 | ||
| 82230-2A160 |
GX51..STR W/*PW,*AD OR *RW |
1 | ||
| 82230-2A150 |
GX51..STR |
1 | ||
| 82230-22501 |
GX51..STR |
1 | ||
| 82230-2A151 |
GX51..STR |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82201-22290 |
GX5#,TX50..SCM,SDX,SLU,STR W/RHEOSTAT |
1 | ||
| 82201-22300 |
GX51..STR W/*RW |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08124 |
GX5#,TX50 0.5ｸﾞﾘｰﾝ,長さ=100 |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08125 |
GX5#,61,LX60,MX51,61,SX60,TX50 1.0ｲｴﾛｰ,長さ=110 |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-22020 |
GX5#,61,LX60,MX61,SX60,TX50..CTM,SCM,SDX,STR A/C CUT RELAY SHORT |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-22170 |
GX5#..5F |
1 | ||
| 82310-22290 |
GX5#..5F |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-12020 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-30020 |
GX5#,61,MX51,61,SX60 |
1 | ||
| 82823B - CAP, TERMINAL, NO.3 | ||||
| 82823-20010 |
GX5#,61,MX51,61 1POLE,BLACK |
1 | ||
| 82826 - COVER, WIRING HARNESS HOLE | ||||
| 82817-22280 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| 82826 - COVER, WIRING HARNESS HOLE | ||||
| 82817-22280 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06049 | ||||
| 90119-06067 | ||||
| Linked diagrams | ||||
| 8401 | ||||

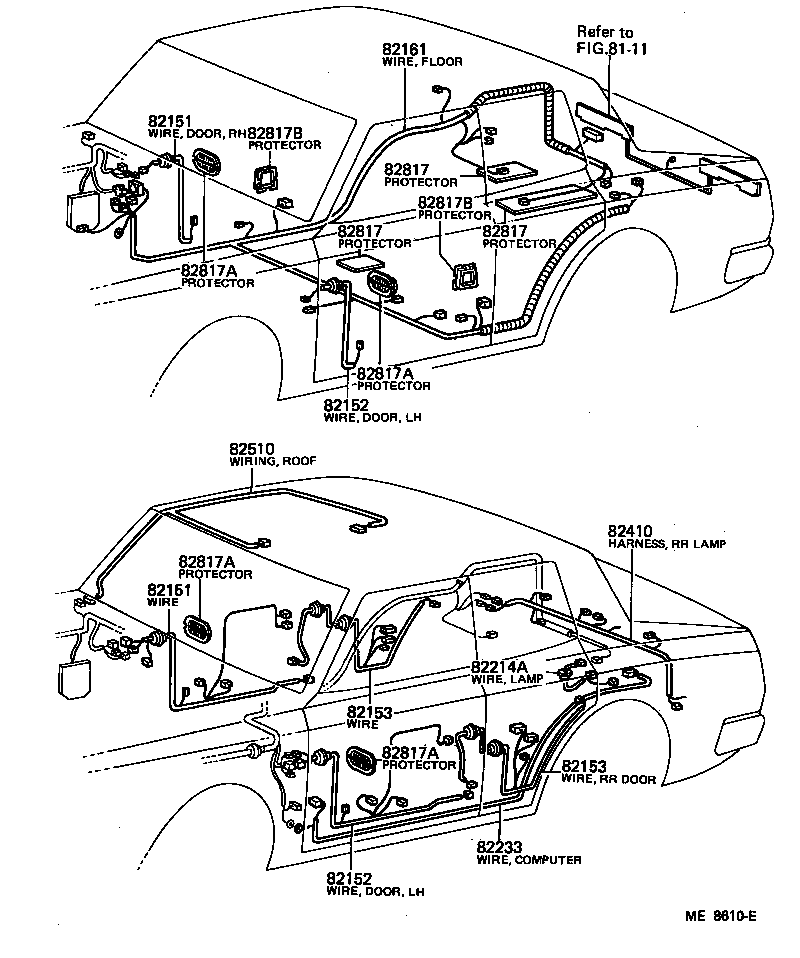

ILLUST NO. 2 OF 5(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82505-22030 |
GX51..STR W/RADIO,W/*PW |
1 | ||
| 82505-22020 |
GX5#,MX51,TX50..CTM,SCM,SDX,STR W/RADIO,W/O *PW |
1 | ||
| 82505-22031 |
GX51,MX51..STR |
1 | ||
| 82505-22032 |
GX51,MX51..STR |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82505-22030 |
GX51..STR W/RADIO,W/*PW |
1 | ||
| 82505-22020 |
GX5#,MX51,TX50..CTM,SCM,SDX,STR W/RADIO,W/O *PW |
1 | ||
| 82505-22031 |
GX51,MX51..STR |
1 | ||
| 82505-22032 |
GX51,MX51..STR |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82506-22011 |
GX51,MX51..STR |
1 | ||
| 82505-22020 |
GX5#,MX51,TX50..CTM,SCM,SDX,STR W/RADIO |
1 | ||
| 82506-22010 |
GX51,MX51..STR |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82506-22011 |
GX51,MX51..STR |
1 | ||
| 82505-22020 |
GX5#,MX51,TX50..CTM,SCM,SDX,STR W/RADIO |
1 | ||
| 82506-22010 |
GX51,MX51..STR |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82507-22010 |
GX51,MX51..STR |
2 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82507-22010 |
GX51,MX51..STR |
2 | ||
| 82161 - WIRE, FLOOR | ||||
| 82420-22331 |
GX5#,MX51..SDX,STR |
1 | ||
| 82420-22330 |
GX5#..SDX,STR |
1 | ||
| 82420-22350 |
GX51..STR W/*PW OR *RW |
1 | ||
| 82420-22351 |
GX51,MX51..STR W/*PW OR *RW |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-22030 |
GX5#,MX51,TX50 |
1 | ||
| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82410-22180 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 82410-22200 |
GX51,MX51..STR W/*RW |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-22170 |
GX51 |
1 | ||
| 82510-22171 |
GX51,MX51 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-22180 |
GX5#,61,MX51,61 L=120X 200 |
1 | ||
| 82817-22170 |
GX5#,61,MX51,61,SX60,TX50 L=100X 200 |
2 | ||
| 82817-22190 |
GX5#,61,LX60,MX51,61,SX60,TX50 L=100X 350 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-22180 |
GX5#,61,MX51,61 L=120X 200 |
1 | ||
| 82817-22170 |
GX5#,61,MX51,61,SX60,TX50 L=100X 200 |
2 | ||
| 82817-22190 |
GX5#,61,LX60,MX51,61,SX60,TX50 L=100X 350 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-22180 |
GX5#,61,MX51,61 L=120X 200 |
1 | ||
| 82817-22170 |
GX5#,61,MX51,61,SX60,TX50 L=100X 200 |
2 | ||
| 82817-22190 |
GX5#,61,LX60,MX51,61,SX60,TX50 L=100X 350 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-22290 |
GX5#,MX51,TX50 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-22290 |
GX5#,MX51,TX50 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-22290 |
GX5#,MX51,TX50 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-22290 |
GX5#,MX51,TX50 |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-22310 |
GX51,61,MX51,61 W/*PW OR *RW |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-22310 |
GX51,61,MX51,61 W/*PW OR *RW |
2 | ||
| Linked diagrams | ||||
| 8111 | ||||
ILLUST NO. 4 OF 5(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12170 | ||||
| 82711-12200 | ||||
| 82711-12250 | ||||
| 82711-12540 | ||||
| 82711-14100 | ||||
| 82711-22300 | ||||
| 82711-22350 | ||||
| 82711-22360 | ||||
| 82711-22380 | ||||
| 82711-22410 | ||||
| 82711-22440 | ||||
| 82711-22480 | ||||
| 82711-22490 | ||||
| 82711-22510 | ||||
| 82711-22520 | ||||
| 82711-22540 | ||||
| 82711-23030 | ||||
| 82711-30070 | ||||
| 82711-91601 | ||||
| 90461-06032 | ||||
| 90461-06075 | ||||
| 90461-06083 | ||||
| 90461-06143 | ||||
| 90461-06303 | ||||
| 90461-06804 | ||||
ILLUST NO. 5 OF 5(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06045 | ||||
| 90119-06005 | ||||
| 90119-06049 | ||||
| 90119-06067 | ||||
| 90119-06114 | ||||
| 90119-06122 | ||||
| 90119-08063 | ||||
| 90168-60010 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 91611-61014 | ||||
| 91611-61020 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| 91665-40616 | ||||
| 93580-16012 | ||||
ILLUST NO. 4 OF 5(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-06053 | ||||
| 90461-08175 | ||||
| 90461-08183 | ||||
| 90461-08200 | ||||
| 90461-08202 | ||||
| 90461-08218 | ||||
| 90461-08309 | ||||
| 90461-08483 | ||||
| 90461-08514 | ||||
| 90463-04033 | ||||
| 90463-04079 | ||||
| 90463-05025 | ||||
| 90463-06383 | ||||
| 90463-08077 | ||||
| 90463-10012 | ||||
| 90463-10050 | ||||
| 90463-10060 | ||||
| 90464-00102 | ||||
| 90464-00137 | ||||
| 90464-00159 | ||||
| 90464-00161 | ||||
| 90464-00166 | ||||
| 90464-00167 | ||||
| 90467-09007 | ||||
| 90480-26043 | ||||
ILLUST NO. 4 OF 5(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22220 | ||||
| 82711-22620 | ||||
| 82711-22640 | ||||
| 82711-22650 | ||||
| 82711-22670 | ||||
| 82711-22690 | ||||
| 82711-24090 | ||||
| 82711-24100 | ||||
| 82711-30370 | ||||
| 82711-30400 | ||||
| 82711-30640 | ||||
| 90461-06006 | ||||
| 90461-08186 | ||||
| 90463-04012 | ||||
| 90463-10024 | ||||
| 90463-15002 | ||||
| 90464-00190 | ||||
| 90480-20363 | ||||
| 90950-01251 | ||||
ILLUST NO. 3 OF 5(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-22010 |
GX5#,MX51,TX50 |
2 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22010 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-22010 |
GX5#,MX51,TX50 |
2 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-22010 |
GX5#,MX51,TX50 |
2 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| Common parts | ||||
| 82981-16010 | ||||
| 82981-22010 | ||||
| 82982-22010 | ||||
| 82983-22010 | ||||
| 82983-22040 | ||||
| 82984-22010 | ||||
| 82987-22010 | ||||
ILLUST NO. 3 OF 5(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-14010 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| Common parts | ||||
| 82991-14010 | ||||
