GX51-YTMGE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

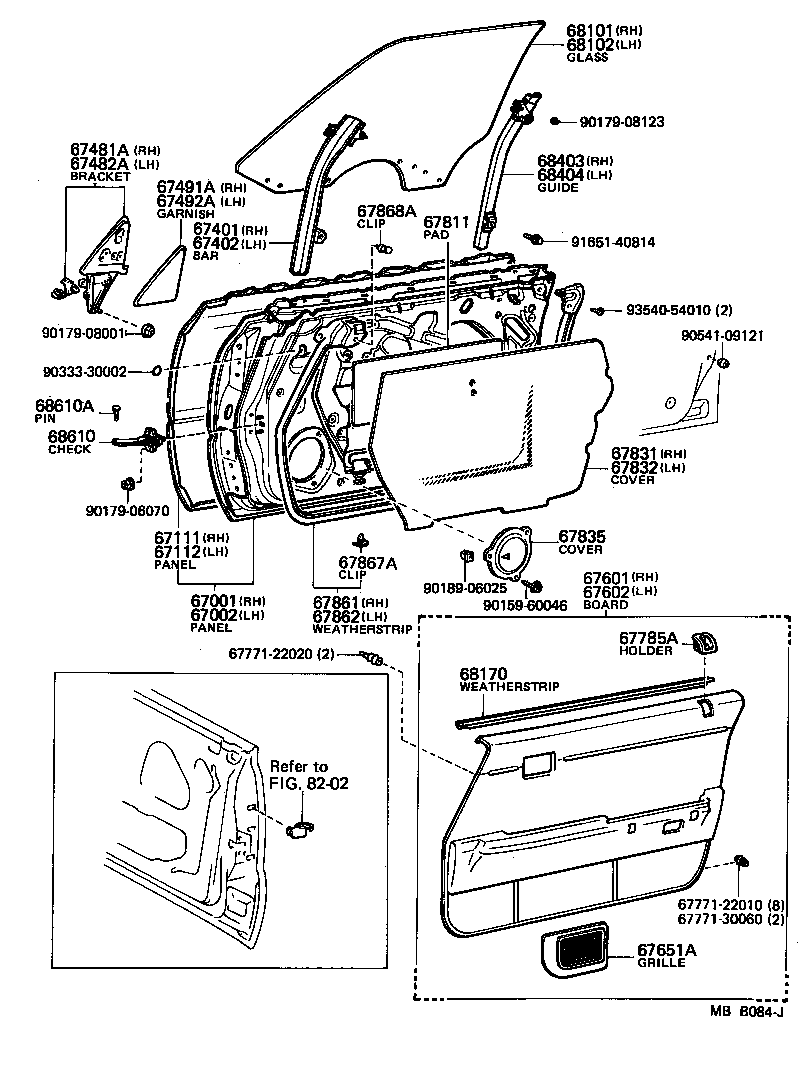

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67401 67402 67481A 67482A 67491A 67492A 67601 67602 67651A 6777122010 6777122020 6777130060 67785A 67811 67831 67832 67835 67861 67862 67867A 67868A 68101 68102 68170 68403 68404 68610 68610A 8202 9015960046 9017906070 9017908001 9017908123 9018906025 9033330002 9054109121 9165140814 9354054010
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-22160

GX5#,MX51,TX50

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-22160

GX5#,MX51,TX50

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-22090

GX5#,MX51,TX50

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-22090

GX5#,61,LX60,MX51,61,SX60,TX50

 1
67401 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
67401-22050

GX5#,61,LX60,MX51,61,SX60,TX50

 1
67402 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
67402-22050

GX5#,61,LX60,MX51,61,SX60,TX50

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2A260

GX51..SLU

SUPER WHITE

 1
67610-2A26006

GX51..SLU

EXCEED,BROWN,BROWN,TRIM4#

 1
67610-2268004

GX51,MX51..SLU

BLUE,BLUE,TRIM8#

 1
67610-2A26006

GX51,MX51..SLU

EXCEED,BROWN,BROWN,TRIM4#

 1
67610-2268006

GX51,MX51..SLU

D-BROWN & GREIGE,BROWN,TRIM4#

 1
67610-2268001

GX51,MX51..SLU

BLACK & GRAY,BLACK,TRIM2#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-2A080

GX51..SLU

SUPER WHITE

 1
67620-2A08006

GX51..SLU

EXCEED,BROWN,BROWN,TRIM4#

 1
67620-2256001

GX51,MX51..SLU

BLACK & GRAY,BLACK,TRIM2#

 1
67620-2256004

GX51,MX51..SLU

BLUE,BLUE,TRIM8#

 1
67620-2A08006

GX51,MX51..SLU

EXCEED,BROWN,BROWN,TRIM4#

 1
67620-2256006

GX51,MX51..SLU

D-BROWN & GREIGE,BROWN,TRIM4#

 1
67651A - GRILLE, SPEAKER DOOR
67651-2201001

GX5#,MX51,TX50

RH,BLACK,BLACK,TRIM2#

 1
67651-2201004

GX5#,MX51,TX50

RH,BLUE,BLUE,TRIM8#

 1
67652-2201001

GX5#,MX51,TX50

LH,BLACK,BLACK,TRIM2#

 1
67651-2201006

GX5#,61,LX60,MX51,61,SX60,TX50

RH,D-BROWN,BROWN,TRIM4#

 1
67652-2201006

GX5#,61,LX60,MX51,61,SX60,TX50

LH,D-BROWN,BROWN,TRIM4#

 1
67652-2201004

GX5#,MX51,TX50

LH,BLUE,BLUE,TRIM8#

 1
67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
67785-2202006

GX5#,61,LX60,MX51,61,SX60,TX50

D-BROWN,BROWN,TRIM4#

 2
67785-2202004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 2
67785-2202001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 2
67811 - PAD, FRONT DOOR SILENCER
67812-22040

GX5#,61,LX60,MX51,61,SX60,TX50

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-22080

GX5#,61,LX60,MX51,61,SX60,TX50

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-22080

GX5#,61,LX60,MX51,61,SX60,TX50

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-22080

GX5#,61,LX60,MX51,61,SX60,TX50

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-22080

GX5#,61,LX60,MX51,61,SX60,TX50

 1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67868-30040

GX5#,61,LX60,MX51,61,SX60,TX50

 1
67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)
67869-30020

GX5#,61,LX60,MX51,61,SX60,TX50

 4
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-22120

GX51,MX51..SLU

EXCEED

 1
68111-22070

GX5#,61,LX60,MX51,61,SX60,TX50

*TT,T=5.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-22070

GX5#,61,LX60,MX51,61,SX60,TX50

*TT,T=5.0

 1
68112-22120

GX51,MX51..SLU

EXCEED

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-22020

GX5#,61,LX60,MX51,61,SX60,TX50

LH

 1
68170-22050

GX5#,61,LX60,MX51,61,SX60,TX50

RH

 1
68403 - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH
67403-22010

GX5#,61,LX60,MX51,61,SX60,TX50

 1
68404 - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH
67404-22010

GX5#,61,LX60,MX51,61,SX60,TX50

 1
68610 - CHECK ASSY, FRONT DOOR
68610-22020

GX5#,61,LX60,MX51,61,SX60,TX50

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-22010

GX5#,61,LX60,MX51,61,SX60,TX50

 2
Common parts
67771-22010
67771-22020
67771-30060
90159-60046
90179-06070
90179-08001
90179-08123
90189-06025
90333-30002
90541-09121
91651-40814
93540-54010
Linked diagrams
8202
