GX51-YTMGE (1980)
Toyota Cresta
(8003- )

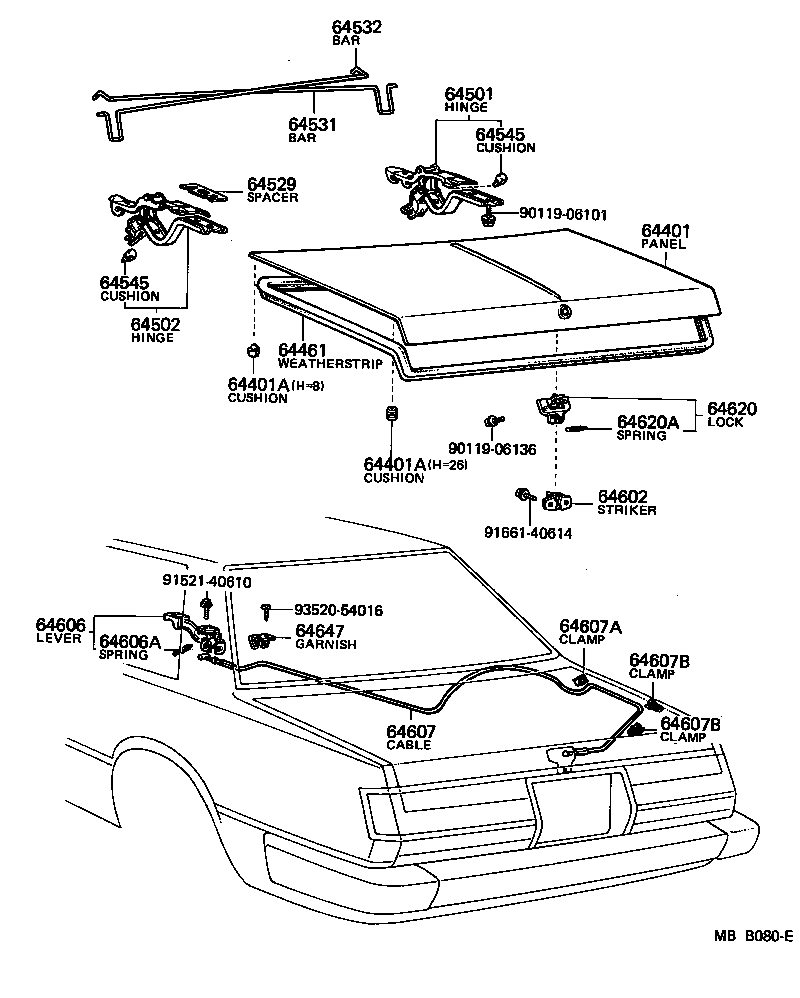

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-22140 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09151 |
GX5#,TX50 H=8,FR |
2 | ||
| 90541-15111 |
GX5#,61,LX60,MX51,61,SX60,TX50 H=26,RR |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09151 |
GX5#,TX50 H=8,FR |
2 | ||
| 90541-15111 |
GX5#,61,LX60,MX51,61,SX60,TX50 H=26,RR |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-22080 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-22060 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-22050 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-20010 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-22060 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-22060 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-09013 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-09013 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64620-22030 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-2204006 |
GX5#,61,LX60,MX51,61,SX60,TX50 D-BROWN,BROWN,TRIM4# |
1 | ||
| 64606-2204004 |
GX5#,MX51,TX50 BLUE,BLUE,TRIM8# |
1 | ||
| 64606-2204001 |
GX5#,MX51,TX50 BLACK,BLACK,TRIM2# |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-22040 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 90463-05005 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 64607B - CLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| 64607B - CLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-20030 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-09001 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 64647 - GARNISH, LUGGAGE LOCK CONTROL LEVER | ||||
| 64647-2202001 |
GX5#,MX51,TX50 BLACK,BLACK,TRIM2# |
1 | ||
| 64647-2202004 |
GX5#,MX51,TX50 BLUE,BLUE,TRIM8# |
1 | ||
| 64647-2202006 |
GX5#,MX51,TX50 D-BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06101 | ||||
| 90119-06136 | ||||
| 91521-40610 | ||||
| 91661-40614 | ||||
| 93520-54016 | ||||
