GX51-YTMGE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )5F

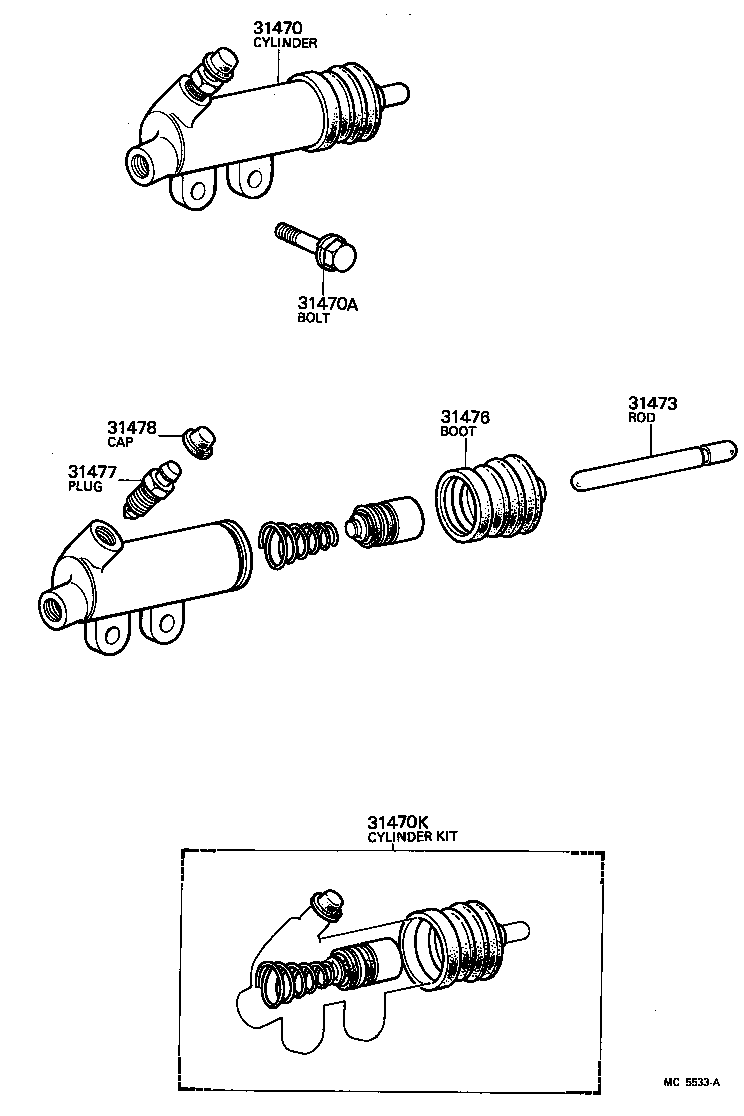

Click highlighted areas on diagram

diagram 31470 31470A 31470K 31473 31476 31477 31478
Part # Description Qty Price
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-22060

GX5#..5F

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-40825

GX5#,61,LX60,SX60,TX50..MTM

*8−1.25PX25−25

 2
31470K - CYLINDER KIT, CLUTCH RELEASE
04313-30100

GX5#,TX50..MTM

 1
04313-22020

GX5#..5F

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-22010

GX5#..5F

 1
31473-14010

GX5#..5F

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-30040

GX5#,TX50..MTM

 1
31476-22010

GX5#..5F

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

GX5#,61,LX60,SX60,TX50..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

GX5#,61,LX60,SX60,TX50..MTM

 1
