GX51-YTMGE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

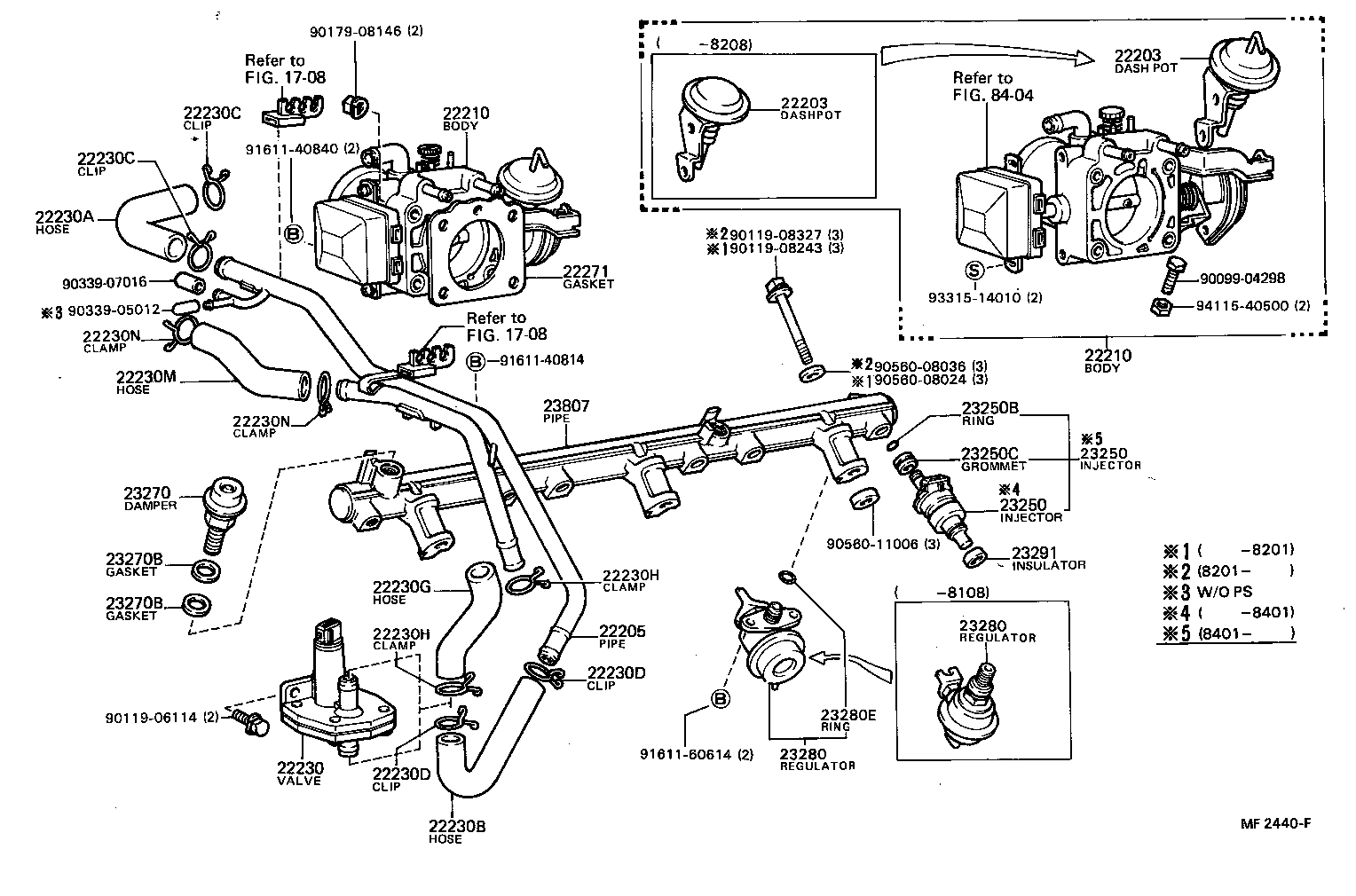

ILLUST NO. 1 OF 2(8003- )1GEU

Click highlighted areas on diagram

diagram 1708 1708 22203 22203 22205 22210 22210 22230 22230A 22230B 22230C 22230C 22230D 22230D 22230G 22230H 22230H 22230M 22230N 22230N 22271 23250 23250 23250B 23250C 23270 23270B 23270B 23280 23280 23280E 23291 23807 8404 9009904298 9011906114 9011908243 9011908327 9017908146 9033905012 9033907016 9056008024 9056008036 9056011006 9161140814 9161140840 9161160614 9331514010 9411540500
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-70010

1GEU..GX5#

 1
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-70010

1GEU..GX5#

 1
22205 - PIPE SUB-ASSY, AUXILIARY AIR
22205-70010

1GEU..GX5#

 1
22210 - BODY ASSY, THROTTLE
22210-70010

1GEU..GX5#

 1
22210 - BODY ASSY, THROTTLE
22210-70010

1GEU..GX5#

 1
22230 - VALVE ASSY, AUXILIARY AIR
22230-70010

1GEU..GX5#

 1
22230A - HOSE, AUXILIARY AIR VALVE, NO.1
22233-70010

1GEU..GX5#

 1
22230B - HOSE, AUXILIARY AIR VALVE, NO.2
22234-70010

1GEU..GX5#,61

 1
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-21152

1GEU..GX5#

 2
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-21152

1GEU..GX5#

 2
22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2
90467-21152

1GEU..GX5#

 2
22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2
90467-21152

1GEU..GX5#

 2
22230G - HOSE, AUXILIARY AIR VALVE, NO.3
22237-70010

1GEU..GX5#,61

 1
22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3
90467-21152

1GEU..GX5#

 2
22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3
90467-21152

1GEU..GX5#

 2
22230M - HOSE, AUXILIARY AIR VALVE, NO.4
22237-70010

1GEU..GX5#,61

 1
22230N - CLIP, AUXILIARY AIR VALVE, NO.4
90467-21152

1GEU..GX5#

 2
22230N - CLIP, AUXILIARY AIR VALVE, NO.4
90467-21152

1GEU..GX5#

 2
22271 - GASKET, THROTTLE BODY
22271-70010

1GEU..GX5#,61

 1
23250 - INJECTOR ASSY, FUEL
23250-70010

1GEU..GX5#,61

 6
23250 - INJECTOR ASSY, FUEL
23250-70010

1GEU..GX5#,61

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1G#..GX5#,61

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1G#..GX5#,61

 6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-70010

1GEU..GX5#,61

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-17002

1GEU..GX5#,61

ID=17.3

 1
90430-14002

1GEU..GX5#,61

ID=14.2

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-17002

1GEU..GX5#,61

ID=17.3

 1
90430-14002

1GEU..GX5#,61

ID=14.2

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-70010

1GEU..GX5#

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-70010

1GEU..GX5#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1G#..GX5#,61

 6
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-70010

1GEU..GX5#

 1
Common parts
90099-04298
90119-06114
90119-08243
90119-08327
90179-08146
90339-05012
90339-07016
90560-08024
90560-08036
90560-11006
91611-40814
91611-40840
91611-60614
93315-14010
94115-40500
Linked diagrams
1708
8404

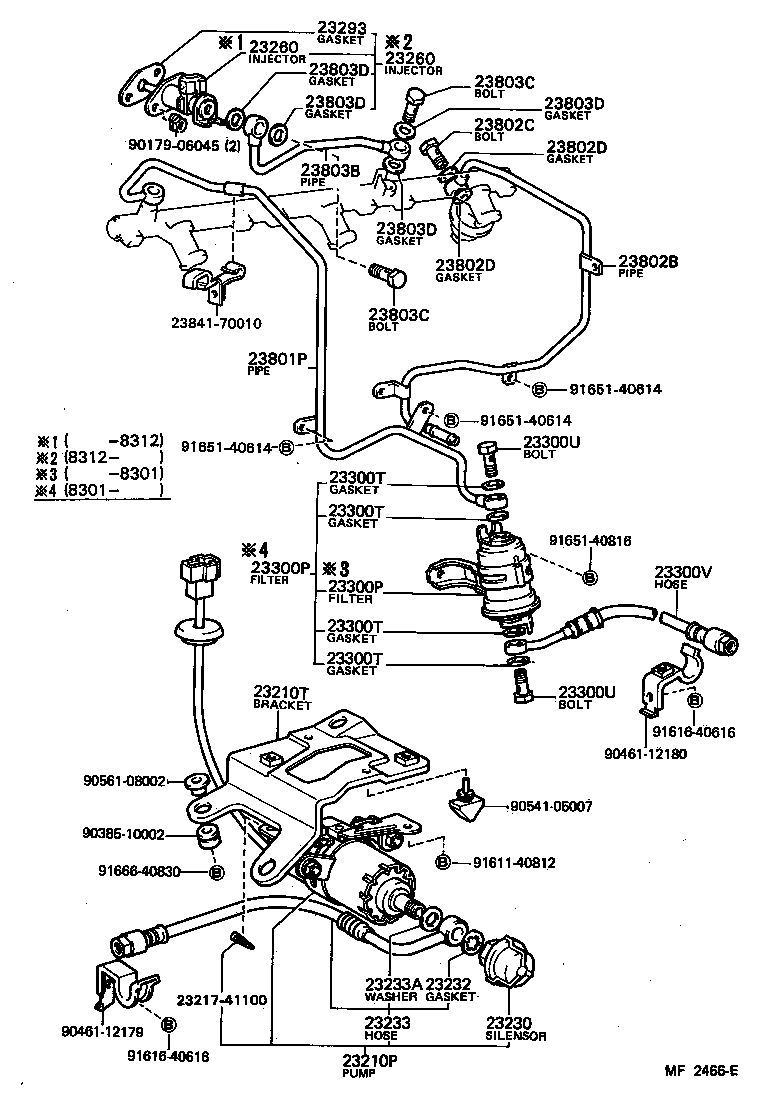

ILLUST NO. 2 OF 2(8003- )1GEU

Click highlighted areas on diagram

diagram 23210P 23210T 2321741100 23230 23232 23233 23233A 23260 23260 23293 23300P 23300P 23300T 23300T 23300T 23300T 23300U 23300U 23300V 23801P 23802B 23802C 23802D 23802D 23803B 23803C 23803C 23803D 23803D 23803D 23803D 2384170010 9017906045 9038510002 9046112179 9046112180 9054105007 9056108002 9161140812 9161640616 9161640616 9165140614 9165140614 9165140614 9165140816 9166640830
Part # Description Qty Price
23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-45030

1G#..GX5#,61

 1
23210T - BRACKET, FUEL PUMP
23206-45030

1G#..GX5#,61

 1
23230 - SILENCER ASSY
23230-26080

1G#..GX5#,61

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-26080

1GEU..GX5#

 1
23233 - HOSE, FUEL PUMP
90999-99066

1GEU..GX5#

 1
23233A - WASHER(FOR FUEL PUMP HOSE)
90099-01012

1GEU..GX5#

 1
23260 - INJECTOR ASSY, COLD START FUEL
23260-70010

1GEU..GX5#

 1
23260 - INJECTOR ASSY, COLD START FUEL
23260-70010

1GEU..GX5#

 1
23293 - GASKET, COLD START INJECTOR
23293-70010

1GEU..GX5#,61

 1
23300P - FILTER, FUEL(FOR EFI)
23300-70010

1GEU..GX5#

 1
23300P - FILTER, FUEL(FOR EFI)
23300-70010

1GEU..GX5#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1G#..GX5#,61

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1G#..GX5#,61

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1G#..GX5#,61

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1G#..GX5#,61

 4
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

1G#..GX5#,61

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

1G#..GX5#,61

 2
23300V - HOSE, FUEL(FOR FUEL INLET)
90923-01216

1G#..GX5#,61

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-70010

1GEU..GX5#,61

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-70010

1GEU..GX5#

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-10008

1GEU..GX5#

 1
90401-10011

1GEU..GX5#

 1
23802D - GASKET(FOR FUEL PIPE NO.2)
90099-01459

1GEU..GX5#

 2
23802D - GASKET(FOR FUEL PIPE NO.2)
90099-01459

1GEU..GX5#

 2
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-70010

1GEU..GX5#

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-10011

1GEU..GX5#

 2
90401-10008

1GEU..GX5#

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-10011

1GEU..GX5#

 2
90401-10008

1GEU..GX5#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90099-01459

1GEU..GX5#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90099-01459

1GEU..GX5#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90099-01459

1GEU..GX5#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90099-01459

1GEU..GX5#

 4
Common parts
23217-41100
23841-70010
90179-06045
90385-10002
90461-12179
90461-12180
90541-05007
90561-08002
91611-40812
91616-40616
91651-40614
91651-40816
91666-40830
