GX51-YTMGE (1980)
Toyota Cresta
(8003- )1GEU

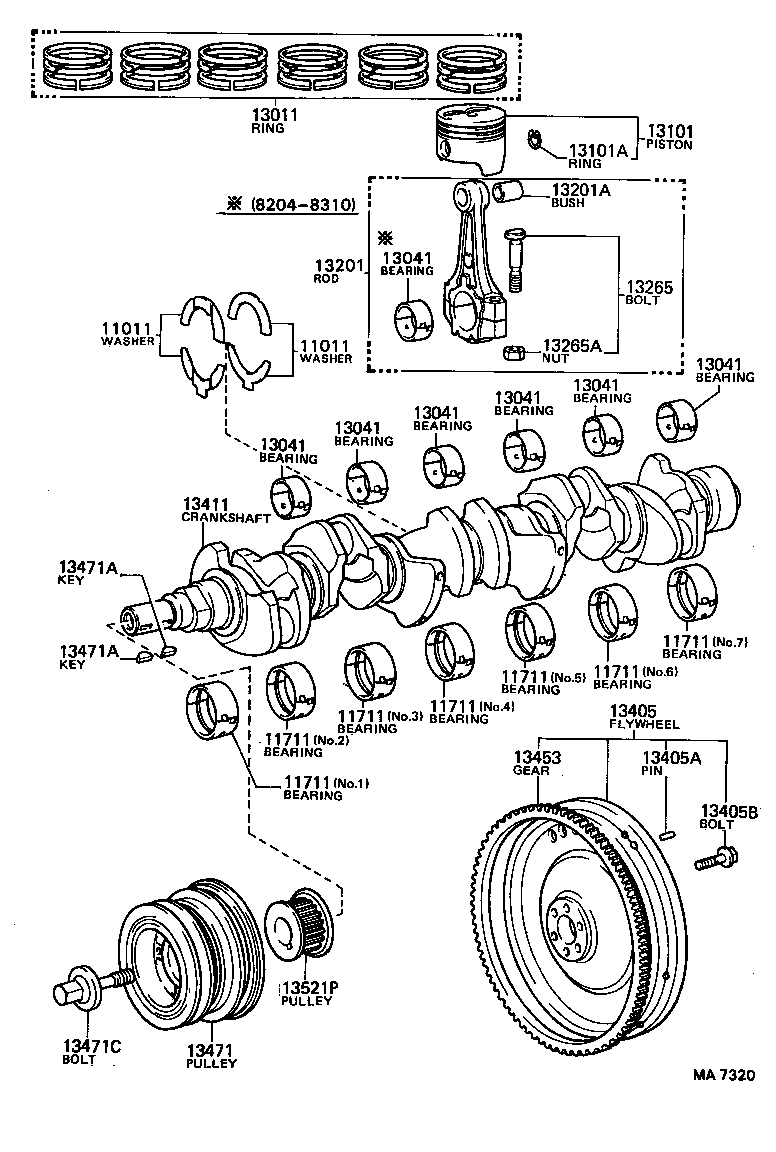

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-70010 |
1G#..GX5#,61 STD |
2 | ||
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-70010 |
1G#..GX5#,61 STD |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1GEU..GX5# NO.1,NO.7 MARK"1",MARK 1 |
2 | ||
| 11701-7001103 |
1GEU..GX5# NO.2,3,4,5,6 MARK"3",MARK 3 |
5 | ||
| 11701-7001102 |
1GEU..GX5# NO.2,3,4,5,6 MARK"2",MARK 2 |
5 | ||
| 11701-7001202 |
1GEU..GX5# NO.1,NO.7 MARK"2",MARK 2 |
2 | ||
| 11701-7001101 |
1GEU..GX5# NO.2,3,4,5,6 MARK"1",MARK 1 |
5 | ||
| 11701-7001203 |
1GEU..GX5# NO.1,NO,7 MARK"3",MARK 3 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1GEU..GX5# NO.1,NO.7 MARK"1",MARK 1 |
2 | ||
| 11701-7001103 |
1GEU..GX5# NO.2,3,4,5,6 MARK"3",MARK 3 |
5 | ||
| 11701-7001102 |
1GEU..GX5# NO.2,3,4,5,6 MARK"2",MARK 2 |
5 | ||
| 11701-7001202 |
1GEU..GX5# NO.1,NO.7 MARK"2",MARK 2 |
2 | ||
| 11701-7001101 |
1GEU..GX5# NO.2,3,4,5,6 MARK"1",MARK 1 |
5 | ||
| 11701-7001203 |
1GEU..GX5# NO.1,NO,7 MARK"3",MARK 3 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1GEU..GX5# NO.1,NO.7 MARK"1",MARK 1 |
2 | ||
| 11701-7001103 |
1GEU..GX5# NO.2,3,4,5,6 MARK"3",MARK 3 |
5 | ||
| 11701-7001102 |
1GEU..GX5# NO.2,3,4,5,6 MARK"2",MARK 2 |
5 | ||
| 11701-7001202 |
1GEU..GX5# NO.1,NO.7 MARK"2",MARK 2 |
2 | ||
| 11701-7001101 |
1GEU..GX5# NO.2,3,4,5,6 MARK"1",MARK 1 |
5 | ||
| 11701-7001203 |
1GEU..GX5# NO.1,NO,7 MARK"3",MARK 3 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1GEU..GX5# NO.1,NO.7 MARK"1",MARK 1 |
2 | ||
| 11701-7001103 |
1GEU..GX5# NO.2,3,4,5,6 MARK"3",MARK 3 |
5 | ||
| 11701-7001102 |
1GEU..GX5# NO.2,3,4,5,6 MARK"2",MARK 2 |
5 | ||
| 11701-7001202 |
1GEU..GX5# NO.1,NO.7 MARK"2",MARK 2 |
2 | ||
| 11701-7001101 |
1GEU..GX5# NO.2,3,4,5,6 MARK"1",MARK 1 |
5 | ||
| 11701-7001203 |
1GEU..GX5# NO.1,NO,7 MARK"3",MARK 3 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1GEU..GX5# NO.1,NO.7 MARK"1",MARK 1 |
2 | ||
| 11701-7001103 |
1GEU..GX5# NO.2,3,4,5,6 MARK"3",MARK 3 |
5 | ||
| 11701-7001102 |
1GEU..GX5# NO.2,3,4,5,6 MARK"2",MARK 2 |
5 | ||
| 11701-7001202 |
1GEU..GX5# NO.1,NO.7 MARK"2",MARK 2 |
2 | ||
| 11701-7001101 |
1GEU..GX5# NO.2,3,4,5,6 MARK"1",MARK 1 |
5 | ||
| 11701-7001203 |
1GEU..GX5# NO.1,NO,7 MARK"3",MARK 3 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1GEU..GX5# NO.1,NO.7 MARK"1",MARK 1 |
2 | ||
| 11701-7001103 |
1GEU..GX5# NO.2,3,4,5,6 MARK"3",MARK 3 |
5 | ||
| 11701-7001102 |
1GEU..GX5# NO.2,3,4,5,6 MARK"2",MARK 2 |
5 | ||
| 11701-7001202 |
1GEU..GX5# NO.1,NO.7 MARK"2",MARK 2 |
2 | ||
| 11701-7001101 |
1GEU..GX5# NO.2,3,4,5,6 MARK"1",MARK 1 |
5 | ||
| 11701-7001203 |
1GEU..GX5# NO.1,NO,7 MARK"3",MARK 3 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1GEU..GX5# NO.1,NO.7 MARK"1",MARK 1 |
2 | ||
| 11701-7001103 |
1GEU..GX5# NO.2,3,4,5,6 MARK"3",MARK 3 |
5 | ||
| 11701-7001102 |
1GEU..GX5# NO.2,3,4,5,6 MARK"2",MARK 2 |
5 | ||
| 11701-7001202 |
1GEU..GX5# NO.1,NO.7 MARK"2",MARK 2 |
2 | ||
| 11701-7001101 |
1GEU..GX5# NO.2,3,4,5,6 MARK"1",MARK 1 |
5 | ||
| 11701-7001203 |
1GEU..GX5# NO.1,NO,7 MARK"3",MARK 3 |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13014-70010 |
1GEU..GX5#,61 O/S 0.75,O/S 0.75 |
1 | ||
| 13015-70010 |
1GEU..GX5#,61 O/S 1.00,O/S 1.00 |
1 | ||
| 13011-70010 |
1GEU..GX5#,61 STD,STD |
1 | ||
| 13013-70010 |
1GEU..GX5#,61 O/S 0.50,O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7001004 |
1GEU..GX5#,61 MARK"4" OR "7",MARK 4 |
6 | ||
| 13041-7001005 |
1GEU..GX5#,61 MARK"5" OR "8",MARK 5 |
6 | ||
| 13041-7001003 |
1GEU..GX5#,61 MARK"3" OR "6",MARK 3 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7001004 |
1GEU..GX5#,61 MARK"4" OR "7",MARK 4 |
6 | ||
| 13041-7001005 |
1GEU..GX5#,61 MARK"5" OR "8",MARK 5 |
6 | ||
| 13041-7001003 |
1GEU..GX5#,61 MARK"3" OR "6",MARK 3 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7001004 |
1GEU..GX5#,61 MARK"4" OR "7",MARK 4 |
6 | ||
| 13041-7001005 |
1GEU..GX5#,61 MARK"5" OR "8",MARK 5 |
6 | ||
| 13041-7001003 |
1GEU..GX5#,61 MARK"3" OR "6",MARK 3 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7001004 |
1GEU..GX5#,61 MARK"4" OR "7",MARK 4 |
6 | ||
| 13041-7001005 |
1GEU..GX5#,61 MARK"5" OR "8",MARK 5 |
6 | ||
| 13041-7001003 |
1GEU..GX5#,61 MARK"3" OR "6",MARK 3 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7001004 |
1GEU..GX5#,61 MARK"4" OR "7",MARK 4 |
6 | ||
| 13041-7001005 |
1GEU..GX5#,61 MARK"5" OR "8",MARK 5 |
6 | ||
| 13041-7001003 |
1GEU..GX5#,61 MARK"3" OR "6",MARK 3 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7001004 |
1GEU..GX5#,61 MARK"4" OR "7",MARK 4 |
6 | ||
| 13041-7001005 |
1GEU..GX5#,61 MARK"5" OR "8",MARK 5 |
6 | ||
| 13041-7001003 |
1GEU..GX5#,61 MARK"3" OR "6",MARK 3 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7001004 |
1GEU..GX5#,61 MARK"4" OR "7",MARK 4 |
6 | ||
| 13041-7001005 |
1GEU..GX5#,61 MARK"5" OR "8",MARK 5 |
6 | ||
| 13041-7001003 |
1GEU..GX5#,61 MARK"3" OR "6",MARK 3 |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-70010 |
1GEU..GX5#,61 STD,STD |
6 | ||
| 13105-70010 |
1GEU..GX5#,61 O/S 1.00,O/S 1.00 |
6 | ||
| 13103-70010 |
1GEU..GX5#,61 O/S 0.50,O/S 0.50 |
6 | ||
| 13104-70010 |
1GEU..GX5#,61 O/S 0.75,O/S 0.75 |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-21088 |
1GEU..GX5#,61 |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-79015 |
1GEU..GX5# |
6 | ||
| 13201-70010 |
1GEU..GX5# |
6 | ||
| 13201-13010 |
1GEU..GX5# |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73070 |
1G#..GX5#,61 |
6 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-29015 |
1G#..GX5#,61 |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09195 |
1GEU..GX5# |
12 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-79015 |
1GEU..GX5#..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
1G#..GX5#,61..5F 長さ=23,外径=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10042 |
1G#..GX5#,61..5F *10-1.25PX26-18 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-70010 |
1GEU..GX5# |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
1G#..GX5#,61..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-70031 |
1GEU..GX5# |
1 | ||
| 13407-70030 |
1GEU..GX5# |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-10519 |
1G#..GX5#,61 |
2 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-10519 |
1G#..GX5#,61 |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-18001 |
1G#..GX5#,61 *18-1.5PX40-20 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-70010 |
1GEU..GX5#,61 |
1 | ||
