GX50-YTPFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )GX5#,61,TX50

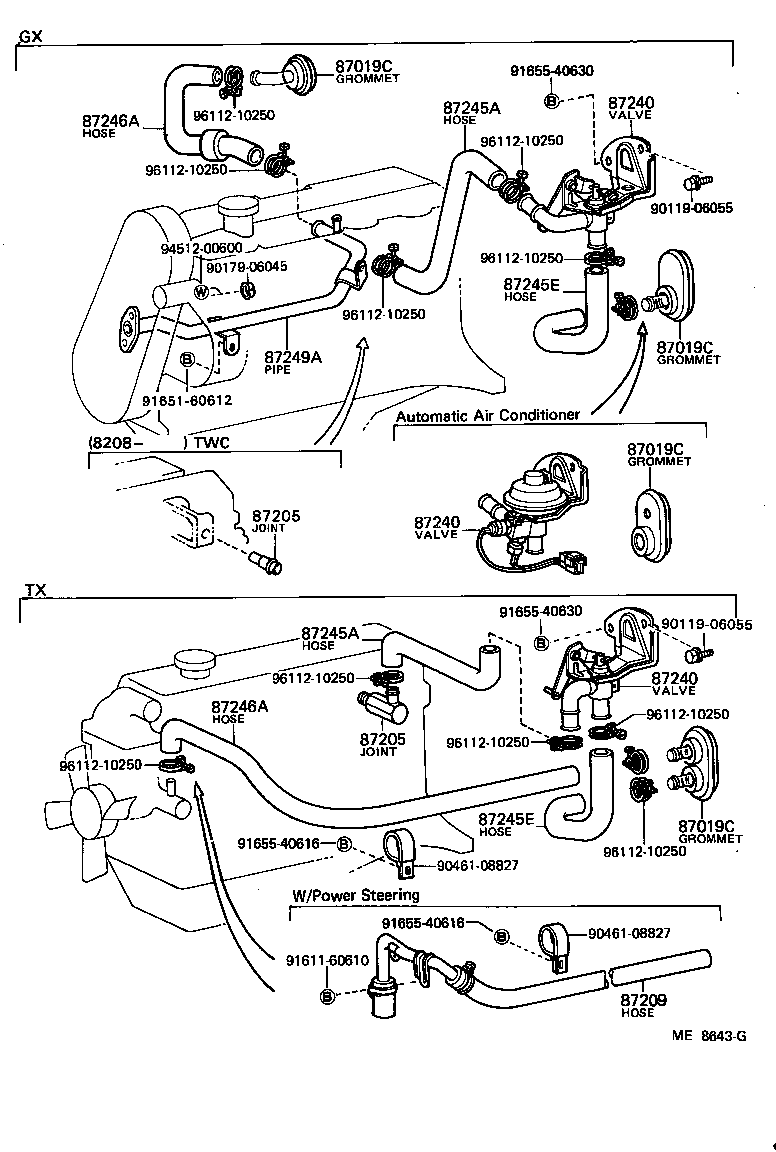

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87205 87205 87209 87240 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87249A 9011906055 9011906055 9017906045 9046108827 9046108827 9161160610 9165160612 9165540616 9165540616 9165540630 9165540630 9451200600 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01020

GX5#,MX51

INLET,W/*AAC

 1
96533-13017

GX5#,61,LX60,MX51,61..CTM,SCM,SDX,STR

INLET

 1
90480-36011

GX5#,61,LX60,MX51,61

OUTLET

 1
87019C - GROMMET, HEATER HOSE
90480-01020

GX5#,MX51

INLET,W/*AAC

 1
96533-13017

GX5#,61,LX60,MX51,61..CTM,SCM,SDX,STR

INLET

 1
90480-36011

GX5#,61,LX60,MX51,61

OUTLET

 1
87019C - GROMMET, HEATER HOSE
90480-01020

GX5#,MX51

INLET,W/*AAC

 1
96533-13017

GX5#,61,LX60,MX51,61..CTM,SCM,SDX,STR

INLET

 1
90480-36011

GX5#,61,LX60,MX51,61

OUTLET

 1
87019C - GROMMET, HEATER HOSE
90480-01020

GX5#,MX51

INLET,W/*AAC

 1
96533-13017

GX5#,61,LX60,MX51,61..CTM,SCM,SDX,STR

INLET

 1
90480-36011

GX5#,61,LX60,MX51,61

OUTLET

 1
87240 - VALVE ASSY, HEATER WATER
87240-22140

GX5#,61,MX51,61..SDX,STR

 1
87240-22160

GX5#,MX51

W/*AAC

 1
87240 - VALVE ASSY, HEATER WATER
87240-22140

GX5#,61,MX51,61..SDX,STR

 1
87240-22160

GX5#,MX51

W/*AAC

 1
87240 - VALVE ASSY, HEATER WATER
87240-22140

GX5#,61,MX51,61..SDX,STR

 1
87240-22160

GX5#,MX51

W/*AAC

 1
87245A - HOSE, HEATER WATER, INLET A
87245-22320

GX5#,61..EFI

 1
87245A - HOSE, HEATER WATER, INLET A
87245-22320

GX5#,61..EFI

 1
87245E - HOSE, HEATER WATER, INLET E
87245-22130

GX5#,MX51,TX50

 1
87245E - HOSE, HEATER WATER, INLET E
87245-22130

GX5#,MX51,TX50

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-22330

GX5#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-22330

GX5#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-22010

GX5#

 1
Common parts
90119-06055
90179-06045
90461-08827
91611-60610
91651-60612
91655-40616
91655-40630
94512-00600
96112-10250
