GX50-YTPFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

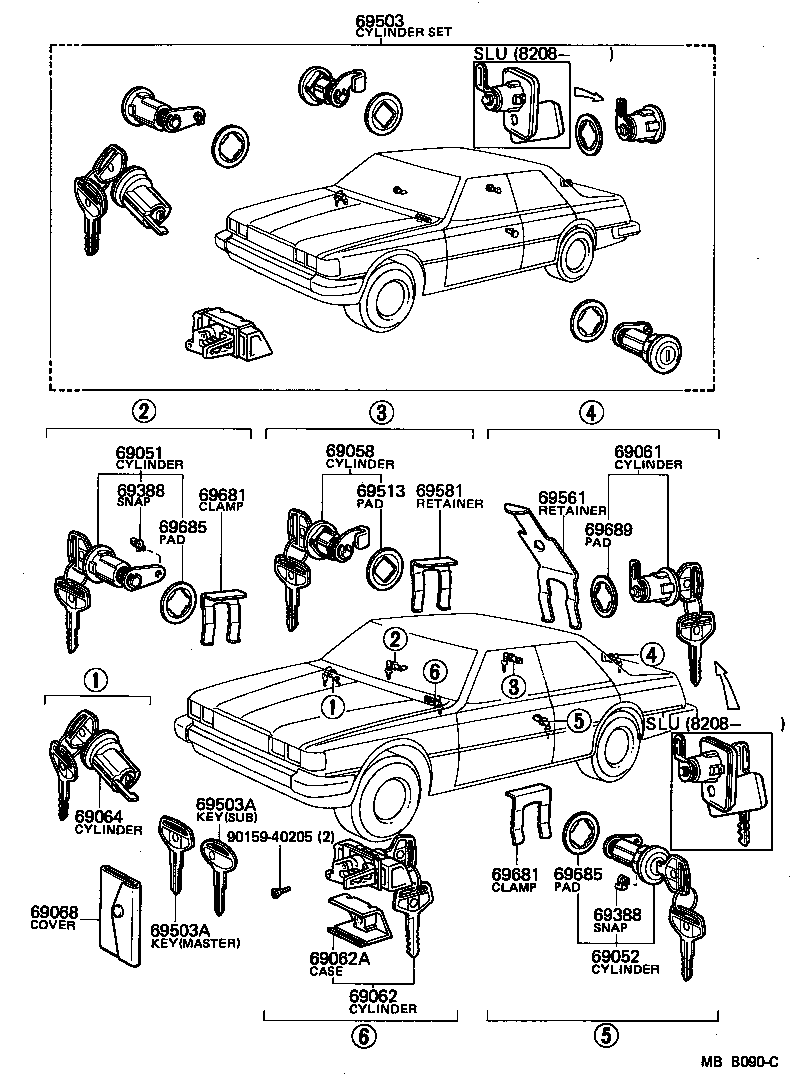

Click highlighted areas on diagram

diagram 69051 69052 69058 69061 69062 69062A 69064 69068 69388 69388 69503 69503A 69503A 69513 69561 69581 69681 69681 69685 69685 69689 9015940205
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-29229

GX5#,MX51,TX50

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-29229

GX5#,61,LX60,MX51,61,SX60,TX50

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-29016

GX5#,MX51,TX50

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-29135

GX5#,MX51,TX50

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-2203006

GX5#,61,LX60,MX51,61,SX60,TX50

D-BROWN,BROWN,TRIM4#

 1
69056-2203001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
69056-2203004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
69062A - CASE, GLOVE COMPARTMENT DOOR LOCK KNOB
55569-2201004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
55569-2201001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
55569-2201006

GX5#,61,LX60,MX51,61,SX60,TX50

D-BROWN,BROWN,TRIM4#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-22020

GX5#,61,LX60,MX51,61,SX60,TX50

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

GX5#,61,LX60,MX51,61,SX60,TX50

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-22020

GX5#,61,LX60,MX51,61,SX60,TX50

LH

 1
69759-22010

GX5#,61,LX60,MX51,61,SX60,TX50

RH

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-22020

GX5#,61,LX60,MX51,61,SX60,TX50

LH

 1
69759-22010

GX5#,61,LX60,MX51,61,SX60,TX50

RH

 1
69503 - CYLINDER SET, LOCK
69005-2209001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
69005-2209006

GX5#,MX51,TX50

D-BROWN,BROWN,TRIM4#

 1
69005-2209004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
69503A - KEY, BLANK
90999-00069

GX5#,61,LX60,MX51,61,SX60,TX50

ﾏｽﾀｰｷｰ,MASTER

 2
90999-00070

GX5#,61,LX60,MX51,61,SX60,TX50

SUB

 1
69503A - KEY, BLANK
90999-00069

GX5#,61,LX60,MX51,61,SX60,TX50

ﾏｽﾀｰｷｰ,MASTER

 2
90999-00070

GX5#,61,LX60,MX51,61,SX60,TX50

SUB

 1
69513 - PAD, FUEL FILLER LID LOCK CYLINDER
69513-14010

GX5#,MX51,TX50

 1
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69561-14030

GX5#,61,LX60,MX51,61,SX60,TX50

 1
69581 - RETAINER, FUEL FILLER LID CYLINDER
69581-14010

GX5#,MX51,TX50

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

GX5#,MX51,TX50

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

GX5#,MX51,TX50

 2
69685 - PAD, LOCK CYLINDER
69513-12020

GX5#,61,LX60,MX51,61,SX60,TX50

 2
69685 - PAD, LOCK CYLINDER
69513-12020

GX5#,61,LX60,MX51,61,SX60,TX50

 2
69689 - PAD, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER
69685-12010

GX5#,61,LX60,MX51,61,SX60,TX50

 1
Common parts
90159-40205
