GX50-YTPFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8003-8208) ; (8208- )5F

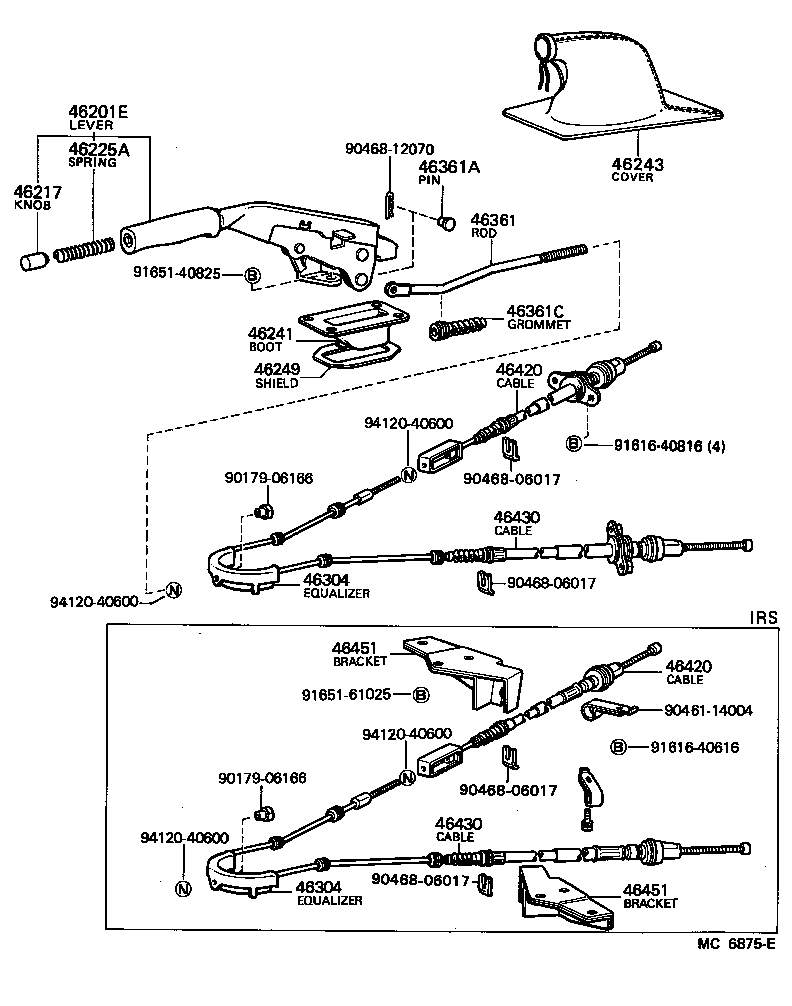

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46241 46243 46249 46304 46304 46361 46361A 46361C 46420 46420 46430 46430 46451 46451 9017906166 9017906166 9046114004 9046806017 9046806017 9046806017 9046806017 9046812070 9161640616 9161640816 9165140825 9165161025 9412040600 9412040600 9412040600 9412040600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-2210004

GX50,TX50

BLUE,BLUE,TRIM8#

 1
46201-2210006

GX50,TX50

DARK BROWN,BROWN,TRIM4#

 1
46201-2212001

GX50,TX50..SCM,SDX

BLACK,BLACK,TRIM2#

 1
46201-2210001

GX50,TX50

BLACK,BLACK,TRIM2#

 1
46201-2212006

GX50,TX50..SCM,SDX

DARK BROWN,BROWN,TRIM4#

 1
46201-2212004

GX50,TX50..SCM,SDX

BLUE,BLUE,TRIM8#

 1
46201-2212014

GX50,TX50..SCM,SDX

BLUE,BLUE,TRIM8#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1002001

GX50,TX50

BLACK,BLACK,TRIM2#

 1
46217-1002014

GX50,TX50

BLUE,BLUE,TRIM8#

 1
46217-1002004

GX50,TX50

BLUE,BLUE,TRIM8#

 1
46217-1002026

GX50,TX50

DARK BROWN,BROWN,TRIM4#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745

GX5#,MX51,TX50

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-14021

GX5#,MX51,TX50

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-22020

GX5#,MX51,TX50

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-22030

GX5#,MX51,TX50

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-22030

GX5#,MX51,TX50

 1
46361 - ROD, PARKING BRAKE PULL
46361-22050

GX5#,MX51,TX50

 1
46361A - PIN, PARKING BRAKE PULL ROD
90240-08037

GX5#,MX51,TX50

 1
46361C - GROMMET(FOR PARKING BRAKE PULL ROD)
90480-01429

GX5#,MX51,TX50

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-22190

GX50,LX60,SX60,TX50

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-22190

GX50,LX60,SX60,TX50

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-22050

GX50,LX60,SX60,TX50

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-22050

GX50,LX60,SX60,TX50

 1
Common parts
90179-06166
90461-14004
90468-06017
90468-12070
91616-40616
91616-40816
91651-40825
91651-61025
94120-40600
