GX50-YTPFE (1980)
Toyota Cresta
Production
Mar 1980
-
Aug 1982
Engine
1GEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

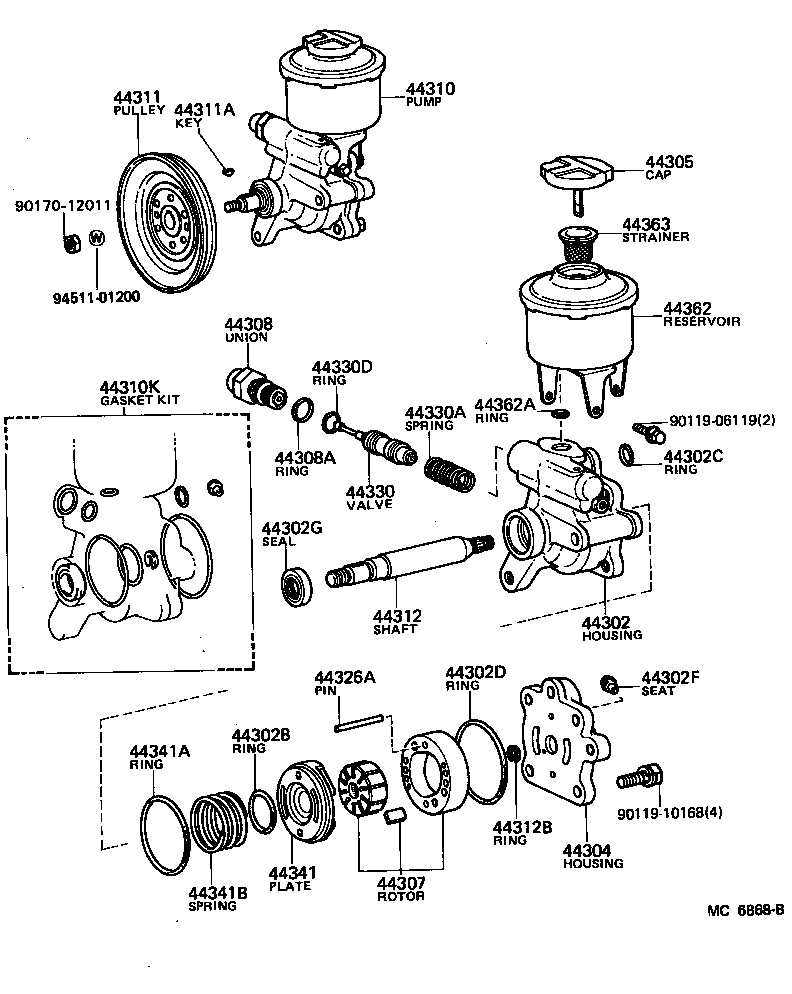

(8003-8201)GX5#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-22020 |
GX5#,MX51 |
1 | ||
| 44302-22010 |
GX5# |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-27002 |
GX5# |
1 | ||
| 90301-60001 |
GX5#,MX51,TX50 |
1 | ||
| 44302C - RING, O, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90301-15002 |
GX5# |
1 | ||
| 96711-19016 |
GX5#,MX51,TX50 |
1 | ||
| 44302D - RING, O, NO.3(FOR VANE PUMP HOUSING) | ||||
| 90301-66001 |
GX5# |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
GX5#,TX50 OD=11.8 |
1 | ||
| 90410-05003 |
GX5# |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-24001 |
GX5#,MX51,TX50 |
1 | ||
| 90311-17001 |
GX5# |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44324-22010 |
GX5# |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22010 |
GX5# |
1 | ||
| 44307 - ROTOR SUB-ASSY, VANE PUMP | ||||
| 44307-22030 |
GX5# |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-22010 |
GX5# |
1 | ||
| 44308A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-15003 |
GX5# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-22901 |
GX5# |
1 | ||
| 44310K - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-22030 |
GX5# |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-22020 |
GX5# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05002 |
GX5# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-22010 |
GX5# |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10002 |
GX5# |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04016 |
GX5# |
2 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12010 |
GX5#,TX50 ﾏｰｸ A,MARK A |
1 | ||
| 44330-22020 |
GX5# MARK B |
1 | ||
| 44330-22030 |
GX5# MARK C |
1 | ||
| 44330-22010 |
GX5# MARK A |
1 | ||
| 44330-12030 |
GX5#,TX50 ﾏｰｸ C,MARK C |
1 | ||
| 44330-12050 |
GX5#,TX50 ﾏｰｸ E,MARK E |
1 | ||
| 44330-12040 |
GX5#,TX50 ﾏｰｸ D,MARK D |
1 | ||
| 44330-12020 |
GX5#,TX50 ﾏｰｸ B,MARK B |
1 | ||
| 44330-12060 |
GX5#,TX50 ﾏｰｸ F,MARK F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-14044 |
GX5# |
1 | ||
| 44330D - RING, O(FOR FLOW CONTROL VALVE) | ||||
| 90301-13001 |
GX5# |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-22010 |
GX5# |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-59002 |
GX5# |
1 | ||
| 44341B - SPRING, COMPRESSION(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90501-04008 |
GX5# |
1 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44306-22040 |
GX5# |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-13001 |
GX5# |
1 | ||
| 44363 - STRAINER, OIL(FOR VANE PUMP) | ||||
| 44363-22010 |
GX5# |
1 | ||
| Common parts | ||||
| 90119-06119 | ||||
| 90119-10168 | ||||
| 90170-12011 | ||||
| 94511-01200 | ||||
(8110-8208)MX51 ; (8201- )EFI,TBO
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-22020 |
GX5#,MX51 |
1 | ||
| 44302-22010 |
GX5# |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-27002 |
GX5# |
1 | ||
| 90301-60001 |
GX5#,MX51,TX50 |
1 | ||
| 44302C - RING, O, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90301-15002 |
GX5# |
1 | ||
| 96711-19016 |
GX5#,MX51,TX50 |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
GX5#,TX50 OD=11.8 |
1 | ||
| 90410-05003 |
GX5# |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-24001 |
GX5#,MX51,TX50 |
1 | ||
| 90311-17001 |
GX5# |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-44002 |
GX5#,MX51,TX50 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44324-22010 |
GX5# |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22010 |
GX5# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-22901 |
GX5# |
1 | ||
| 44310K - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-22030 |
GX5# |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-22020 |
GX5# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05002 |
GX5# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-22010 |
GX5# |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10002 |
GX5# |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04016 |
GX5# |
2 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12010 |
GX5#,TX50 ﾏｰｸ A,MARK A |
1 | ||
| 44330-22020 |
GX5# MARK B |
1 | ||
| 44330-22030 |
GX5# MARK C |
1 | ||
| 44330-22010 |
GX5# MARK A |
1 | ||
| 44330-12030 |
GX5#,TX50 ﾏｰｸ C,MARK C |
1 | ||
| 44330-12050 |
GX5#,TX50 ﾏｰｸ E,MARK E |
1 | ||
| 44330-12040 |
GX5#,TX50 ﾏｰｸ D,MARK D |
1 | ||
| 44330-12020 |
GX5#,TX50 ﾏｰｸ B,MARK B |
1 | ||
| 44330-12060 |
GX5#,TX50 ﾏｰｸ F,MARK F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-14044 |
GX5# |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
GX5#,MX51,TX50 |
1 | ||
| 44338B - SEAT, UNION(FOR PRESSURE PORT UNION) | ||||
| 90410-06030 |
GX5# |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-12010 |
GX5#,MX51,TX50 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
GX5#,MX51,TX50 |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90501-23014 |
GX5#,MX51,TX50 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12010 |
GX5#,MX51,TX50 |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
GX5#,MX51,TX50 |
2 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44306-22040 |
GX5# |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-13001 |
GX5# |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-22010 |
GX5# |
1 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90170-12011 | ||||
| 90201-12022 | ||||
| 91611-60814 | ||||
| 94511-01200 | ||||
