GX50-YTPFE (1980)
Toyota Cresta
Production
Mar 1980
-
Aug 1982
Engine
1GEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8003- )4FC..EFI

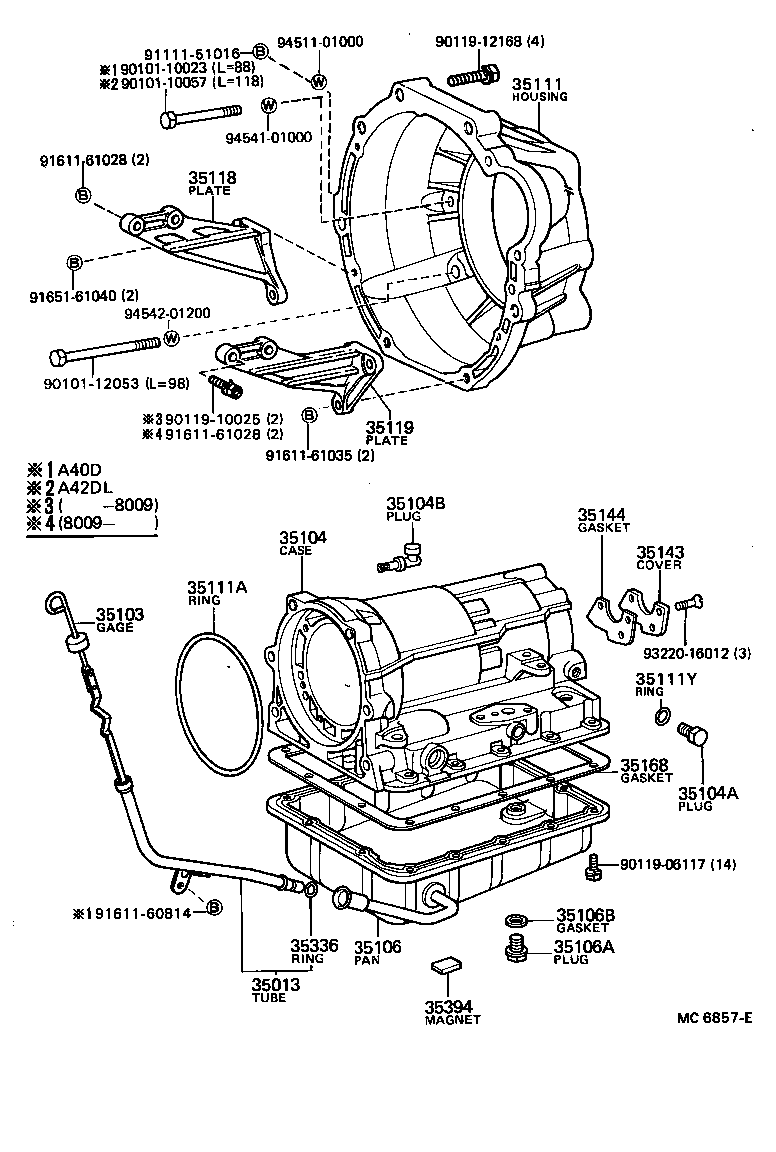

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-22120 |
GX5#..4FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-30060 |
GX5#..4FC A40D |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-30081 |
GX5#..4FC A40D |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08079 |
GX5#,TX50..ATM |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03069 |
GX5#,61,LX60,MX51,61,SX60,TX50..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-30030 |
GX5#,SX60..4FC A40D |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10003 |
GX5#,61,MX51,61,SX60,TX50..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GX5#,61,LX60,MX51,61,SX60,TX50..ATM |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-22050 |
GX5#..4FC A40D |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99006 |
GX5#,61,LX60,MX51,61,SX60..4FC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GX5#,61,LX60,MX51,61,SX60,TX50..ATM |
2 | ||
| 35118 - PLATE, STIFENER, RH (ATM) | ||||
| 33118-22050 |
GX5#,61..4FC |
1 | ||
| 35119 - PLATE, STIFENER, LH (ATM) | ||||
| 33119-22040 |
GX5#..4FC |
1 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
GX5#,61,LX60,MX51,61,SX60,TX50..ATM |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-22010 |
GX5#,61,LX60,MX51,61,SX60,TX50..ATM |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22010 |
GX5#,TX50..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
GX5#,61,LX60,MX51,61,SX60,TX50..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GX5#,LX60,MX51,61,SX60,TX50..ATM |
1 | ||
| Common parts | ||||
| 90101-10023 | ||||
| 90101-10057 | ||||
| 90101-12053 | ||||
| 90119-06117 | ||||
| 90119-10025 | ||||
| 90119-12168 | ||||
| 91111-51016 | ||||
| 91611-60814 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91651-61040 | ||||
| 93220-16012 | ||||
| 94511-01000 | ||||
| 94541-01000 | ||||
| 94542-01200 | ||||
